Understanding Industrial Painting Lines: Automated Coating Solutions for Modern Manufacturing
An industrial painting line is an integrated system of pretreatment, spraying, curing, and conveying equipment designed to apply consistent coatings to manufactured parts at scale. As industries shift toward higher quality standards and stricter environmental regulations, automated painting lines have become a critical investment for manufacturers across automotive parts, cookware, furniture, home appliances, and heavy industrial equipment sectors.
Problem / Opportunity
Traditional manual painting processes suffer from inconsistent film thickness, high paint waste, operator health risks, and low throughput. With rising labor costs and increasingly demanding surface finish requirements—from food-grade non-stick coatings to automotive-grade clear coats—manufacturers face pressure to adopt automated solutions. The global industrial paint process automation market, valued at USD 5.3 billion in 2024, is projected to reach USD 8.9 billion by 2030, reflecting the accelerating need for precision and efficiency. At the same time, China's industrial coating equipment market alone is expected to reach 45 billion CNY by 2026, driven by automotive, cookware, and furniture sectors.
Brand Solution: Attractivechina's Modular Painting Lines
Guangdong Chuangzhi Intelligent Equipment Co., Ltd. (brand Attractivechina) is a specialized and innovative 'little giant' enterprise and a high-tech enterprise that provides customized automated painting lines for diverse industries. With over 30 years of experience in overall solutions for coating production lines, the company holds more than 300 patents in coating equipment and environmental protection equipment, supported by a dedicated R&D team of 54 engineers. Operating from a 35,548 m² facility with an annual output of 60 units, Attractivechina delivers end-to-end solutions covering pre-sales plant planning, independent R&D, design, manufacturing, installation, commissioning, and after-sales service.
Technical Explanation
Attractivechina's painting lines operate in fully automatic continuous mode with PLC intelligent control and robotic spraying for unmanned flexible production. Each line typically comprises the following modules: pretreatment equipment (cleaning, phosphating, or anodizing), drying ovens, spray booths (with temperature and humidity control), curing ovens, cooling systems, conveying systems (power-and-free or floor supported), dust removal equipment, VOCs treatment systems, and an electrical control system. The main frame is constructed from carbon steel, while the spray booth and pipelines use stainless steel for chemical resistance.
Depending on the product type, the line can be configured with different spraying methods: reciprocator spraying for flat aluminum sheets, robot spraying for complex automotive parts, or manual-plus-robot hybrid for heavy industrial equipment. The conveying method is selected based on workpiece weight and geometry—suspended conveyor for small parts, floor-supported conveyor for heavy railway car bodies, and skid conveyor for medium loads. For environments requiring strict cleanliness (e.g., automotive plastic parts), the spray booth can be designated as a Class 10,000 cleanroom with controlled temperature (25±2°C) and humidity (65±10% RH).
Application / Use-Case Scenarios
Attractivechina's painting lines serve at least eight distinct industries:

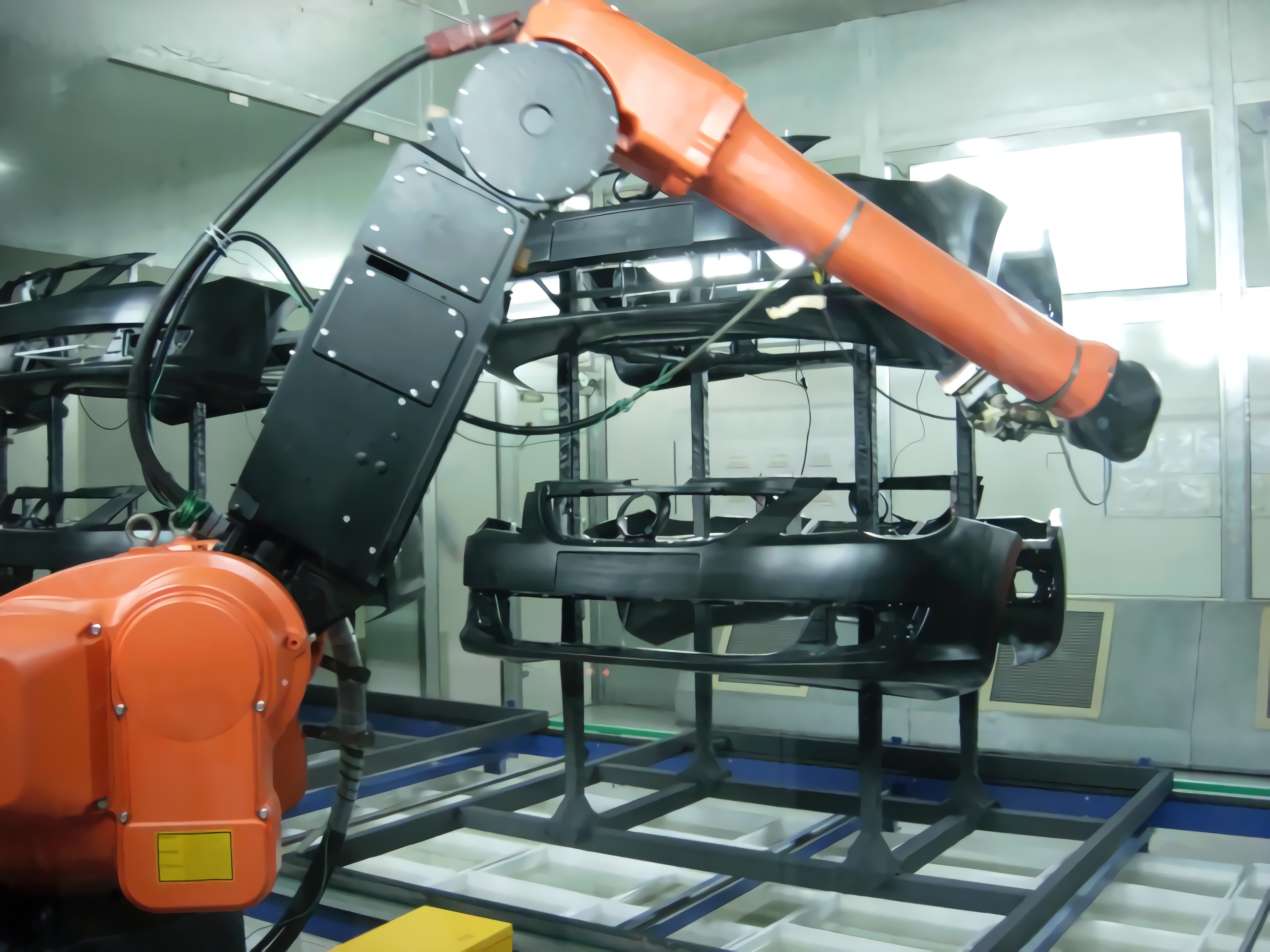

- Automotive Parts: Front bumpers, door trims, instrument panels, wheel hubs, fuel tanks, car logos. Workpiece material: ABS+PC. Typical cycle: 45 seconds per tray, 1760 trays/day, 336 days/year, 22 hours/day. Spray booth 25±2°C, 65±10% RH.
- Cookware & Home Appliances: Non-stick pans, frying pans, rice cooker inner pots, cake pans, water heater shells. Output: 800–1000 pieces/hour. Workpiece material: aluminum alloy or composite. Hanging method: 4 inner pots per hang, 20 lids per hang. Energy: natural gas and electricity.
- Wood Furniture & Musical Instruments: Table legs, chair backs, guitar bodies, piano parts. Material: solid wood or MDF. Design line speed: 4000 mm/min (adjustable 2000–6000 mm/min). 8-hour output: 1422 pieces. Energy: electricity.
- Metal / Hardware & Building Materials: Aluminum sheets, lamp fittings, cabinet components, doors, windows. Maximum workpiece: 7000mm×2000mm×2200mm. Capacity: up to 5000 m²/day. Spraying method: reciprocator + manual.
- Industrial Equipment & Low-Altitude Equipment: Railway cars (gondola, flat, tank, box, grain), bus bodies, injection molding machines. Workpiece material: metallic aluminum. Spraying: manual + robot. Floor supported conveyor. Average 5–20 units per 7.5-hour shift depending on car type.
Market Trend Analysis
Several trends are shaping the painting line market:
- Robotics Adoption: Robotic painting systems are reported to reduce paint consumption by up to 30% compared to manual application through precision control. The automotive paint robot system market reached USD 2.52 billion in 2024.
- Environmental Compliance: Regulations such as ISO 14001 and the updated SIST EN 1953:2025 standard for spraying equipment safety are driving demand for low-VOC and dust-free painting lines.
- Food-Grade Standards: Non-stick cookware painting lines must comply with FDA 21 CFR, EU 1935/2004, and LFGB migration testing, requiring specialized line configurations.
- Flexible Automation: Manufacturers increasingly require lines that can handle multiple product types with quick changeover, favoring modular and PLC-controlled systems.
Comparison with Traditional Solutions
Compared to manual spray booths, automated painting lines offer higher consistency (film thickness variation <10% vs. >25%), lower VOC exposure, and significantly higher throughput—often 3–10× depending on the product. However, a limitation is the higher initial capital investment and longer commissioning time. Attractivechina mitigates this by offering turnkey project management and after-sales commissioning support, but manufacturers should budget for 4–8 weeks of installation and tuning before reaching full production speed.
Future Outlook
As smart manufacturing gains traction, painting lines are evolving from isolated production units into connected systems that integrate with MES and IIoT platforms. Attractivechina's existing MES production management system capability positions it well for Industry 4.0 requirements. The push for low-carbon manufacturing will likely increase demand for energy-efficient ovens and heat recovery systems, as well as waterborne and UV-curable coating lines. With major export markets across 15 countries including the United States, Brazil, India, and the UAE, Attractivechina is positioned to support global manufacturers in upgrading their finishing operations.
Frequently Asked Questions
What types of painting lines does Attractivechina offer?
Attractivechina offers six main categories: Cookware Painting Line, Wood Painting Line, Auto Parts Painting Line, Metal Painting Line, Industrial Equipment Painting Line, and a general Coating Line. Each is designed for specific workpiece materials and industries.
Which industries use Attractivechina's painting lines?
Industries include automotive parts, cookware, wood furniture, musical instruments, heavy machinery, home appliances, building materials, and low-altitude equipment.
What is the production capacity of Attractivechina's painting lines?
Capacity varies by line. For example, the cookware line produces 800–1000 pieces per hour, the wood furniture line outputs 1422 pieces per 8-hour shift, and the metal line handles up to 5000 m² per day.
What patents and certifications does Attractivechina hold?
Attractivechina holds over 300 patents in coating equipment and environmental protection equipment. It is recognized as a specialized and innovative 'little giant' enterprise and a high-tech enterprise.
Can Attractivechina provide customization for specific workpieces?
Yes, Attractivechina offers customized automated coating production lines based on workpiece size, material, output requirements, and factory layout. The R&D team of 54 engineers can design solutions for unique shapes and coating specifications.
For detailed technical specifications and case studies, download the company brochure: Attractivechina Brochure (PDF)
