Product Summary

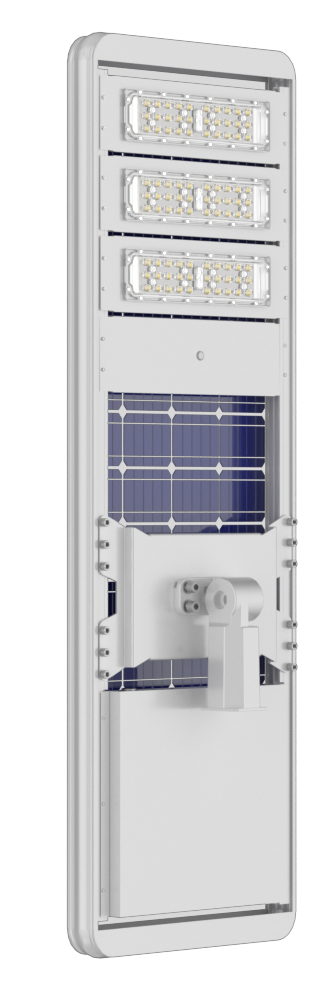

The ML-ST-100 is a compact integrated solar street light from the ST series, designed for adjustable mounting. It combines a high-efficiency 120W monocrystalline solar panel, a 100W LED module with 10 Philips chips, and a 45Ah LiFePO4 battery in a single die-cast aluminum housing. With 200 lm/W efficacy and continuous operation for 3-5 rainy days, this model suits municipal and road lighting projects.

Key Features

• High-Efficiency Solar Panel: 120W mono-crystalline panel (18V) ensures effective charging even under limited sunlight.
• Luminous Efficacy: 100W LED with 200 lm/W output delivers bright illumination with lower energy consumption.
• Long Backup: 45Ah LiFePO4 battery supports 3-5 consecutive rainy days and 12 hours of nightly operation.
• Smart Control: Light, time, and microwave sensor control modes enable adaptive brightness management.
• Durable Construction: Die-cast aluminum housing with IP67 rating (certified) protects against weather and corrosion.
• Adjustable Design: The all-in-one structure can be adjusted for optimal solar panel angle, maximizing sun exposure.

Technical Specifications

Models and Options

Model: ML-ST-100

Optional: CCT from 3500K to 6000K

Materials and Structure

The lamp housing is made of die-cast aluminum, offering robust protection and efficient heat dissipation. The integrated design incorporates the solar panel, LED module, battery, and controller in a single unit, simplifying installation and reducing cabling.

Applications

Suitable for municipal and public facilities, road lighting, energy conservation, and environmental projects. Ideal for streets, residential areas, campuses, and remote sites.

Customization

CCT can be customized from 3500K to 6000K upon request.

FAQ

Q1: What is the warranty period for this solar street light?

Please contact us for detailed warranty information.

Q2: Can the brightness be adjusted according to traffic flow?

Yes, it supports light, time, and microwave sensor control modes.

Q3: How many rainy days can it operate without sunlight?

It can operate continuously for 3-5 rainy days.

Q4: What is the recommended pole diameter for ML-ST-100?

The recommended pole diameter is 60-65mm.

Q5: Is the housing waterproof?

Yes, the housing is rated IP67, confirmed by certification.

Q6: Can the color temperature be customized?

Yes, CCT can be customized from 3500K to 6000K.

Q7: What is the minimum order quantity?

The MOQ is 50 units.

Q8: What are the payment terms?

Payment is 30% deposit and 70% balance via T/T.
