120W Split Solar Street Light with 45W LED and LiFePO4 Battery
Product Summary: The ML-Split-120 is a split-type solar street light engineered for municipal and public road lighting. It combines a 120W high-efficiency monocrystalline solar panel, a 45W LED module with 200 lm/W output, and a long-lasting LiFePO4 battery, ensuring consistent illumination for 12 hours nightly with 3-5 rainy days of backup.
Key Features
High-Efficiency Solar Panel: 120W DC36V monocrystalline panel maximizes solar energy conversion, reducing grid dependency.
Bright LED Output: 45W LED with 200 lm/W and 5050 Cree chips from the US delivers bright illumination with lower energy consumption.
Reliable Lithium Battery: A-class LiFePO4 (45Ah, 12.8V) ensures safe, stable storage and long cycle life.
Smart Control Modes: Light, time, and microwave sensor control allow flexible operation for different needs.
Durable Die-Cast Aluminum Housing: Designed to withstand outdoor conditions, protecting internal components.
Customizable Color Temperature: Standard 5000K, with options from 3000K to 6000K for varied ambiance.
Technical Specifications
Parameter
Value
Solar Panel
120W, DC36V, Monocrystalline
LED Power
45W (5050 Cree, 10 chips)
Luminous Efficacy
200 lm/W
Battery
LiFePO4, 45Ah, 12.8V
Controller
12V8A
CCT
5000K (3000-6000K optional)
Working Time
12 hours/night, 3-5 rainy days
Control Mode
Light / Time / Microwave Sensor
Installation Height
8-10m
Installation Distance
30-35m
Pole Diameter
60-72mm
Housing Material
Die-cast Aluminum
Models and Options
Model: ML-Split-120. Optional color temperatures (3000K-6000K) and control modes are available upon request.
Materials and Structure
The housing is made of die-cast aluminum, providing a robust and weather-resistant structure. The separate solar panel and light head are designed for flexible installation, accommodating various pole diameters (60-72mm).
Applications
Ideal for municipal and public facilities, road lighting, and energy-saving projects. Suitable for highways, city roads, and streets where reliable off-grid lighting is required.
Customization
We offer customization for color temperature (3000-6000K), pole mounting options, and lighting modes (e.g., 100%-4hrs, 70%-4hrs, 30%-4hrs). Contact our team to discuss your project needs.
Case Study
Mexico Highway Project: A contractor installed 480 units of this 120W split solar street light on highways. After 10 years, the units maintained stable operation with no decrease in brightness and long nightly lighting times.
Libya Highway Project: 880 units were deployed on Libyan highways, demonstrating stable performance over 10 years with sustained brightness and extended night lighting.
UAE City Road Project: 680 units used on city roads in UAE have operated reliably for 10 years, preserving brightness and long nightly runtime.
FAQ
What is the MOQ for this solar street light? The MOQ is 50 units.
What payment terms are accepted? We accept 30% deposit T/T and 70% balance T/T.
How is the product delivered? Delivery methods include EXW, FOB, and CIF.
Can the color temperature be customized? Yes, CCT can be customized between 3000K and 6000K.
How long does the battery last on cloudy days? It supports 3-5 rainy days of continuous operation.
Is pre-shipment testing available? Yes, we offer pre-shipment testing as part of our quality assurance.
What control modes are available? The light can be controlled by light sensor, time settings, or microwave sensor.
Do you provide installation guidelines? Yes, we provide guidelines and support for installation, including recommended heights and distances.
Inquiry Information
For pricing, lead time, and detailed specifications, please contact us:
Name: Kim
Email: info@cmoonlight.com
Tel/WhatsApp: +86 18823328907
Address: Huiye Science Park, Tangtou Avenue, Tangtou Community, Shiyan Street, Baoan District, Shenzhen, China
Product Gallery

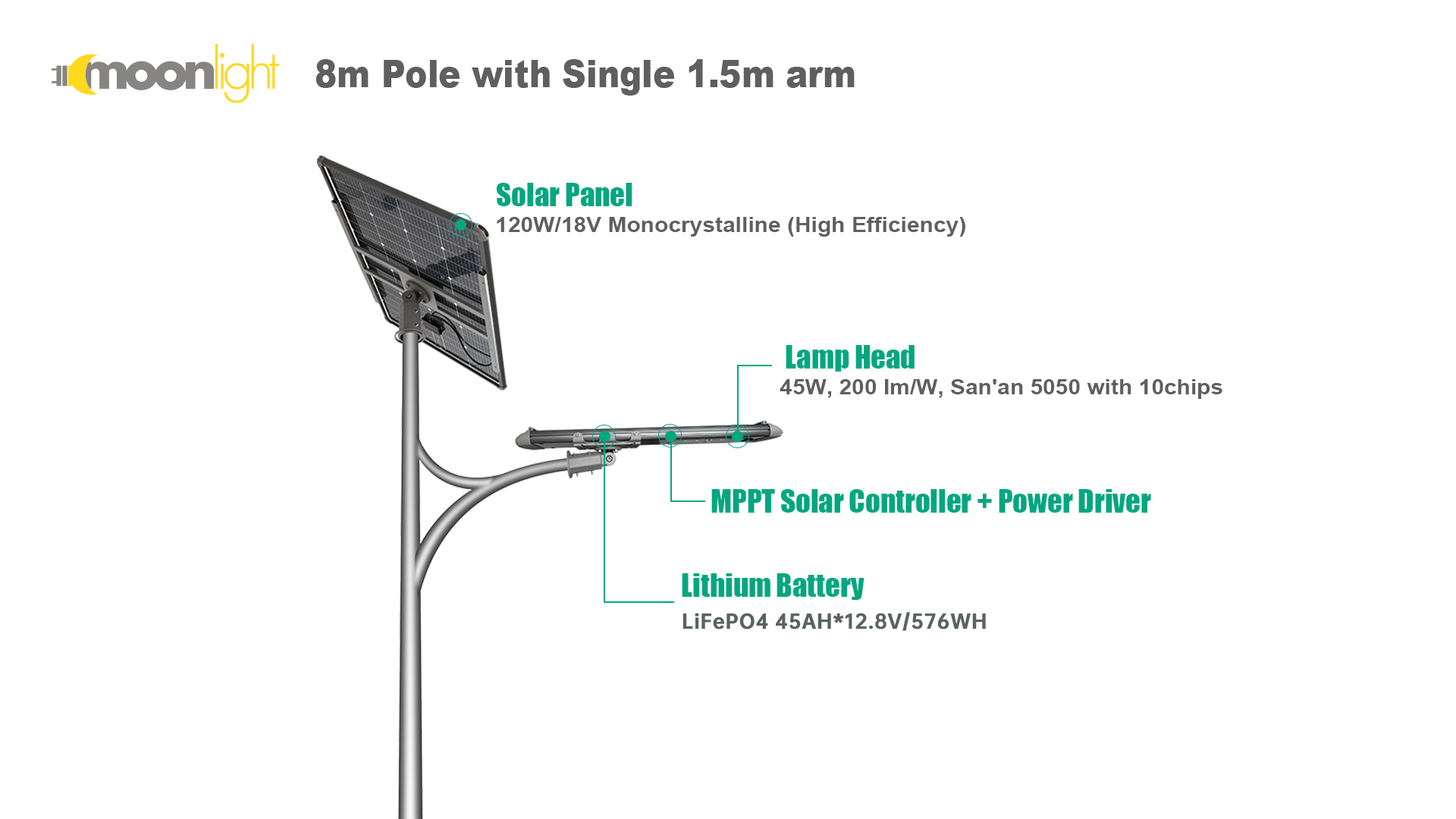

ML-Split-120 on 8m pole with double 2.5m armsML-Split-120 on 8m pole with single 1.5m arm
