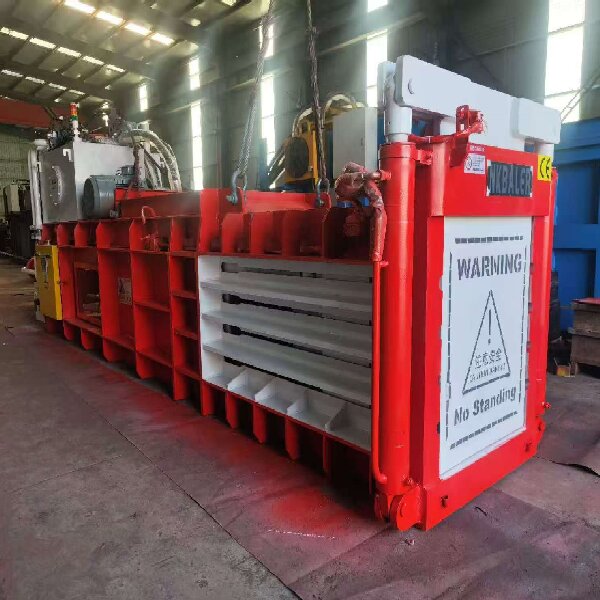

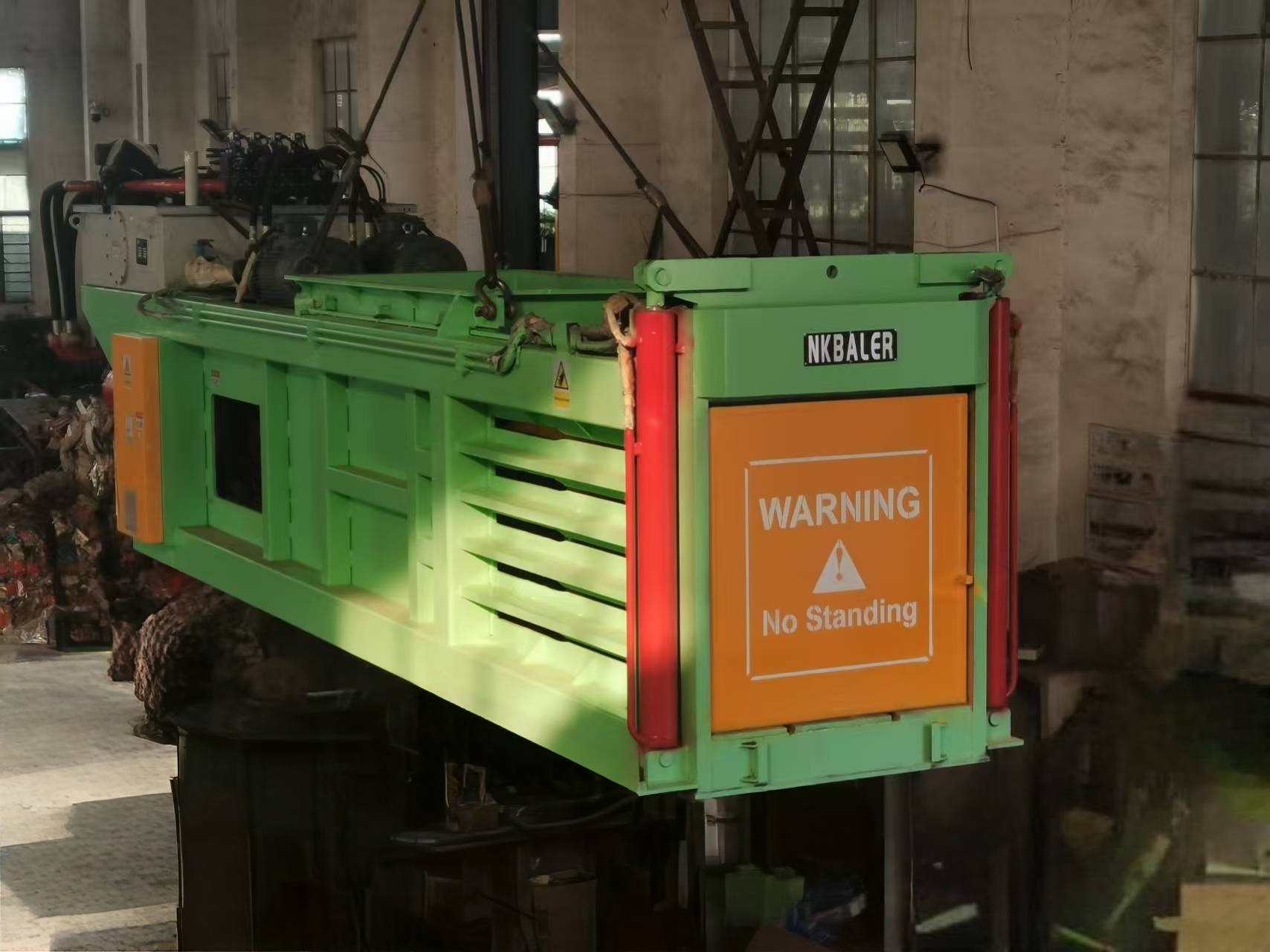

This semi-automatic horizontal baler model NKW125BD offers the same heavy-duty 125-ton pressing force with a simpler, more cost-effective operating process. It produces uniform bales of 1100*1250*1700 mm at a rate of 5-7 tons per hour, making it ideal for facilities that need a reliable baling solution without full automation.
Key Selling Points
- Manual Tie-Off: Lower initial investment and easier maintenance.
- High Pressing Force: 125 tons ensures dense, compact bales.
- Compact Design: Smaller footprint compared to fully automatic models.
- Simple Operation: Operator-friendly controls with PLC assist.
- Versatile Applications: Suitable for various materials including paper, plastic, and metal.
- CE Certified: Meets EN ISO 12100:2010 and EN 60204-1:2018 standards.
Technical Specifications
| Parameter | Value |
|---|
| Hydraulic Power | 125 Ton |
| Bale Size (W*H*L) | 1100*1250*1700 mm |
| Feed Opening Size | 2000*1100 mm |
| Capability | 5-7 T/hour |
| Power | 30KW / 40HP |
| Bale Wire | 10# * 5 PCS |
| Machine Weight | 18000 KG |
| Working Pressure | 20 MPa |
Models and Options
Semi-automatic model based on NKW125BD. Options include different bale sizes and wire tying counts.
Materials and Structure
Main structure made of carbon steel. Hydraulic cylinder with Ø250-4300 provides the pressing force.
Applications
Ideal for waste management companies, recycling centers, and manufacturing plants processing cardboard, plastic, or metal scrap.
Customization
Customizable bale size and wire tying options to meet specific requirements.
FAQ
Q: What is the difference between semi-automatic and fully automatic?
A: Semi-automatic requires manual tying and some manual steps, while fully automatic is automated.
Q: Can this baler handle wet materials?
A: Yes, it can handle wet materials, but drying is recommended.
Q: What is the power consumption?
A: The main motor is 30KW, plus conveyor if used.
Q: Is training required for operation?
A: Minimal training is needed due to simple controls.
Q: What is the warranty period?
A: Warranty details are available upon request.
