180° Foldable Flexible LED Display P2.6 - Magic Plus FPS Series

Name: "180° Foldable Flexible LED Display P2.6 - Magic Plus FPS Series"
Rating: 5 (707 reviews)

Quantity:

SKU: 0930727479

Model: FPS

Onumen Technology Co., Ltd.

Enter Shop

Product Details

Magic Plus FPS Series - P2.6 180° Foldable Flexible LED Display

The Magic Plus FPS Series P2.6 is a 180° foldable flexible LED display designed for dynamic visual applications. With a pixel pitch of 2.6mm, SMD1212 LEDs, and 3840Hz refresh rate, it delivers crisp, flicker-free images. Its ultra-slim profile (15mm thick, 15kg/m²) and IP65 rating make it suitable for both indoor and outdoor use. Patented foldable technology allows creative shapes like curves, waves, and circles.

Key Selling Points

✓ 180° Foldable Design: Flexible PCB and silicone material allow 180° folding, enabling curved and complex installations with minimal space.
✓ Ultra-Thin & Lightweight: Only 15mm thick and 15kg/m², reducing structural load and simplifying installation.
✓ High Brightness 6000 nits: Ensures readability under direct sunlight for outdoor advertising and events.
✓ IP65 Double-Sided Potting: Protects against dust and water jets, reliable for outdoor use (optional IP68).
✓ 3840Hz Refresh Rate & 16-bit Gray Scale: Delivers smooth, high-contrast video quality for live events and broadcast.

Technical Specifications

Pixel Pitch	P2.6
LED Type	SMD1212
Brightness	6000 nits
Refresh Rate	3840Hz
Module Size	250×250 mm
Thickness	15 mm
Weight	15 kg/m²
Protection Rating	IP65 (double-sided potting, up to IP68)
Foldable Angle	180°
Viewing Angle	140° H / 140° V
Gray Scale	16 bit
Working Voltage	DC24V / DC48V
Input Voltage	AC100-240V
Working Temperature	-20℃ ~ +45℃
Storage Temperature	-20℃ ~ +60℃
Control Mode	Synchronous / Asynchronous

Models and Options

Available in pixel pitches P2.6 and P3.9. Custom module sizes and control systems can be configured upon request.

Materials and Structure

Engineering plastic frame, metal hardware, flexible PCB, and silicone material for foldability. Double-sided potting provides IP65 protection.

Applications

Stage events, concerts, outdoor advertising, sports events, exhibitions, theme parks, creative installations, rental events, architectural displays.

Customization

MOQ: 1 m²/unit. Delivery: EXW, FOB, CIF, DDP. Payment: T/T, L/C, Trade Assurance. We support customized size, control system, and installation accessories.

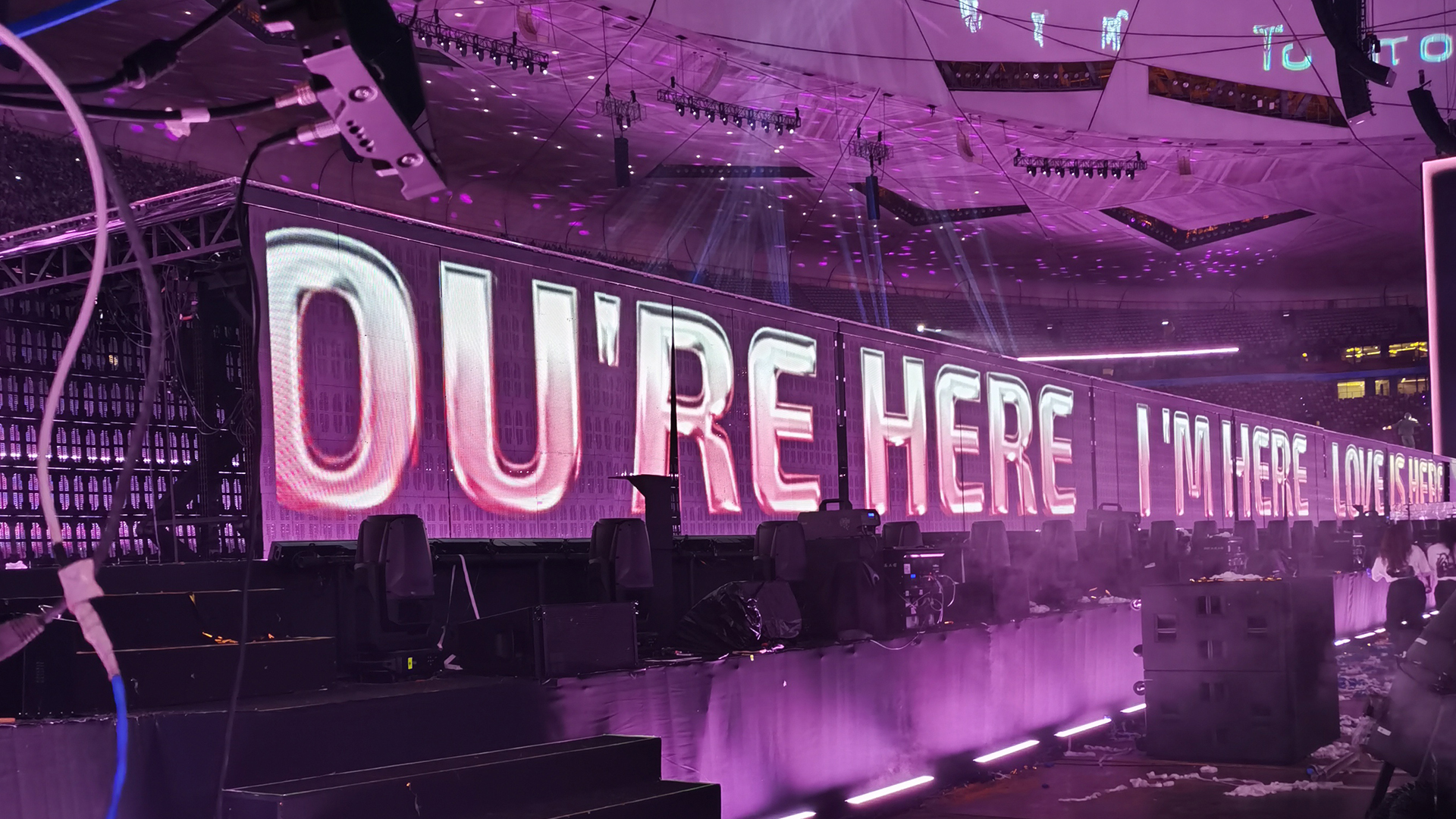

Case Study: Zhang Jie Concert

500 m² foldable LED display integrated with stage lifting system for a dynamic visual experience. Lightweight structure enabled fast installation and synchronized movement.

FAQ

Q: What is the minimum order quantity?

A: MOQ is 1 m² or 1 unit, suitable for small-scale projects and trials.

Q: Can this display be used outdoors?

A: Yes, with IP65 protection (double-sided potting), it is resistant to dust and water jets. Optional IP68 available.

Q: What certifications does the product have?

A: CE, FCC, RoHS, CCC, ISO 9001, ISO 14001, ISO 45001, and multiple invention patents including US, EP, JP, KR, etc.

Q: What is the delivery time?

A: Please contact sales for lead time. Pre-shipment inspection and testing available.

Q: Can the screen form curved shapes?

A: Yes, the 180° foldable design allows curved, wave, circular, and other creative layouts.

Inquiry Information

Contact us for pricing, technical details, and customization. Email: sales@onumen.com | Tel: +86 755 8360 1688 | WhatsApp

Image Gallery

Magic Plus P2.6 foldable flexible LED display front view

Magic Plus P2.6 flexible LED screen side angle

Magic Plus P2.6 180° foldable LED panel close-up

Magic Plus P2.6 LED display installation example
