Magic Plus FPS Series - P3.9 180° Foldable Flexible LED Display

The Magic Plus FPS Series P3.9 is a 180° foldable flexible LED display with a 3.9mm pixel pitch, using SMD1921 LEDs. It offers the same high brightness (6000 nits) and refresh rate (3840Hz) as the P2.6 variant, but at a lower cost per square meter, making it ideal for large-scale installations where viewing distance is greater. Ultra-thin (15mm) and lightweight (15kg/m²), with IP65 protection.

Key Selling Points

✓ Cost-Effective P3.9: Larger pixel pitch reduces LED density, offering a budget-friendly solution for large screens.
✓ 180° Foldable Design: Flexible PCB and silicone enable creative curved and angled installations.
✓ 6000 nits Brightness: Suitable for outdoor use even in direct sunlight.
✓ IP65 Protection: Double-sided potting ensures reliability in harsh environments.
✓ Ultra-Thin 15mm: Reduces transportation and installation costs.

Technical Specifications

Pixel Pitch	P3.9
LED Type	SMD1921
Brightness	6000 nits
Refresh Rate	3840Hz
Module Size	250×250 mm
Thickness	15 mm
Weight	15 kg/m²
Protection Rating	IP65 (double-sided potting, up to IP68)
Foldable Angle	180°
Viewing Angle	140° H / 140° V
Gray Scale	16 bit
Working Voltage	DC24V / DC48V
Input Voltage	AC100-240V
Working Temperature	-20℃ ~ +45℃
Storage Temperature	-20℃ ~ +60℃
Control Mode	Synchronous / Asynchronous

Models and Options

Available in P2.6 and P3.9 pixel pitches. Custom configurations available upon request.

Materials and Structure

Engineering plastic frame, metal hardware, flexible PCB, silicone material. Double-sided potting for IP65 protection.

Applications

Stage events, concerts, outdoor advertising, sports events, exhibitions, theme parks, creative installations, rental events, architectural displays.

Customization

MOQ: 1 m²/unit. Delivery: EXW, FOB, CIF, DDP. Payment: T/T, L/C, Trade Assurance. Custom size and control options available.

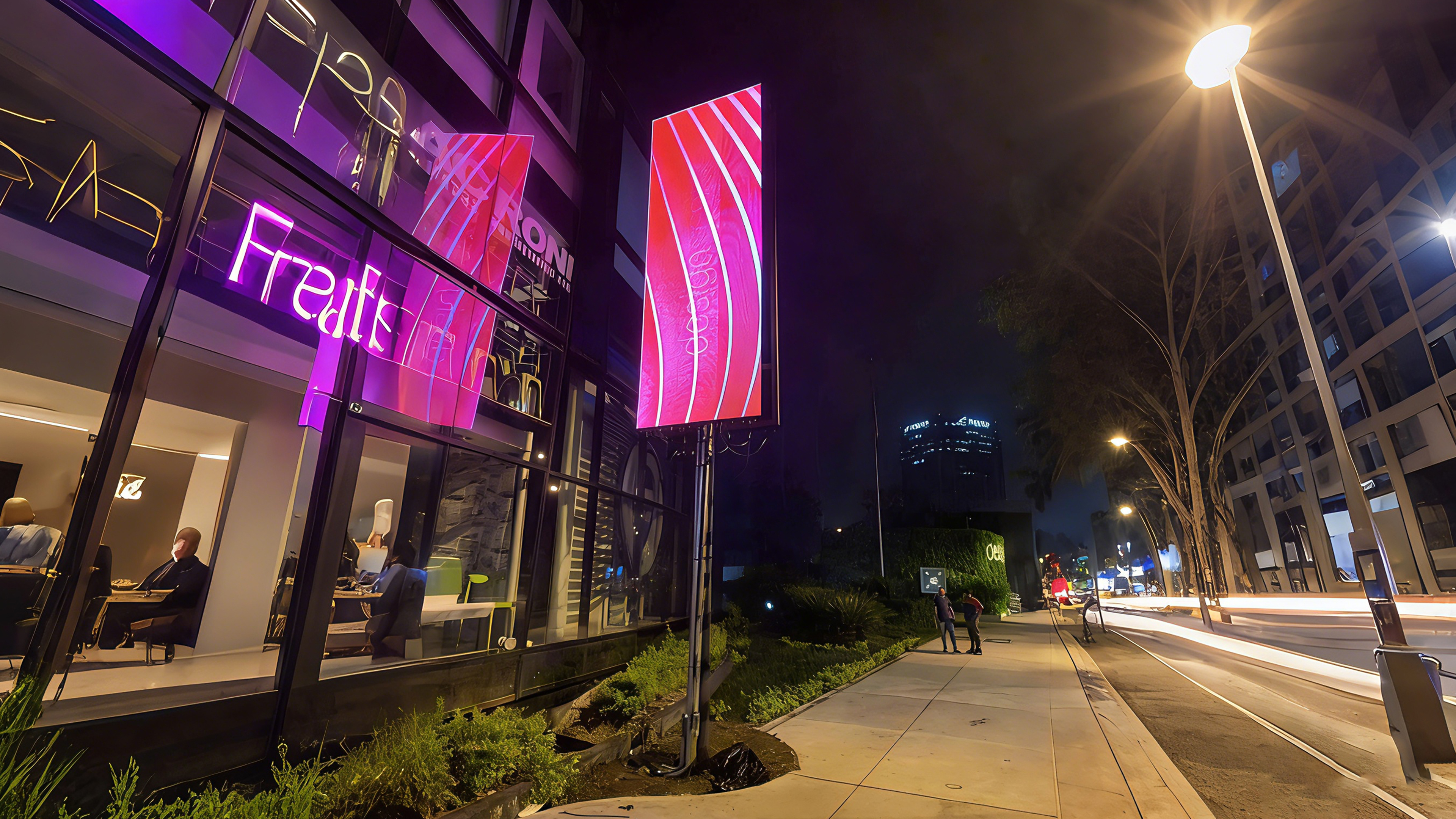

Case Study: Guatemala Double-Sided Pole Display

50+ m² double-sided ultra-thin foldable LED display installed on advertising poles in Guatemala. Lightweight design reduced installation complexity and provided 7+ years of reliable service.

Guatemala double-sided pole LED display installation

FAQ

Q: What is the difference between P2.6 and P3.9?

A: P3.9 has a larger pixel pitch, resulting in lower resolution per area but lower cost, suitable for larger viewing distances.

Q: Is the P3.9 version suitable for outdoor use?

A: Yes, it has 6000 nits brightness and IP65 protection, making it fully outdoor-capable.

Q: How does the 180° folding work?

A: The flexible PCB and silicone material allow the panel to be folded up to 180°, enabling creative shapes like waves and circles.

Q: What are the payment terms?

A: T/T, L/C, and Trade Assurance are accepted.

Q: Can I get a sample before bulk order?

A: Yes, MOQ is 1 m² or 1 unit for sample testing.

Inquiry Information

Image Gallery

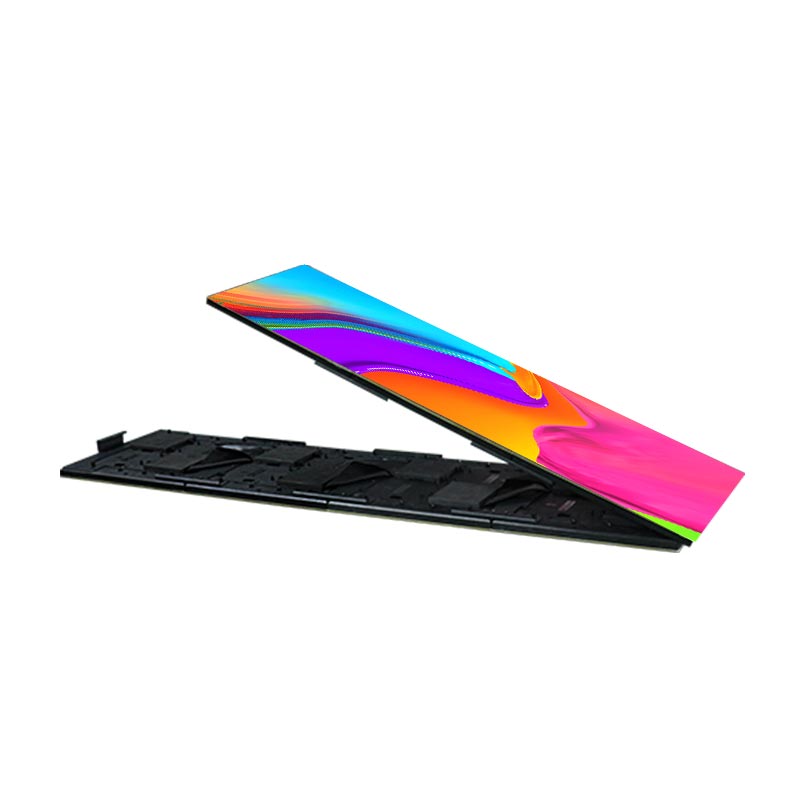

Magic Plus P3.9 foldable flexible LED display front view

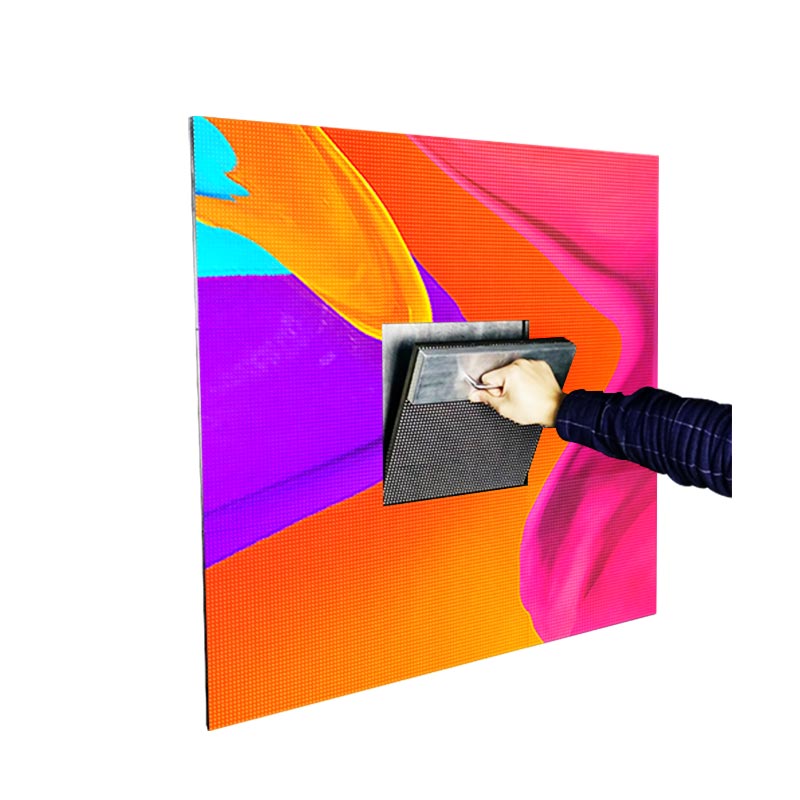

Magic Plus P3.9 flexible LED screen side angle

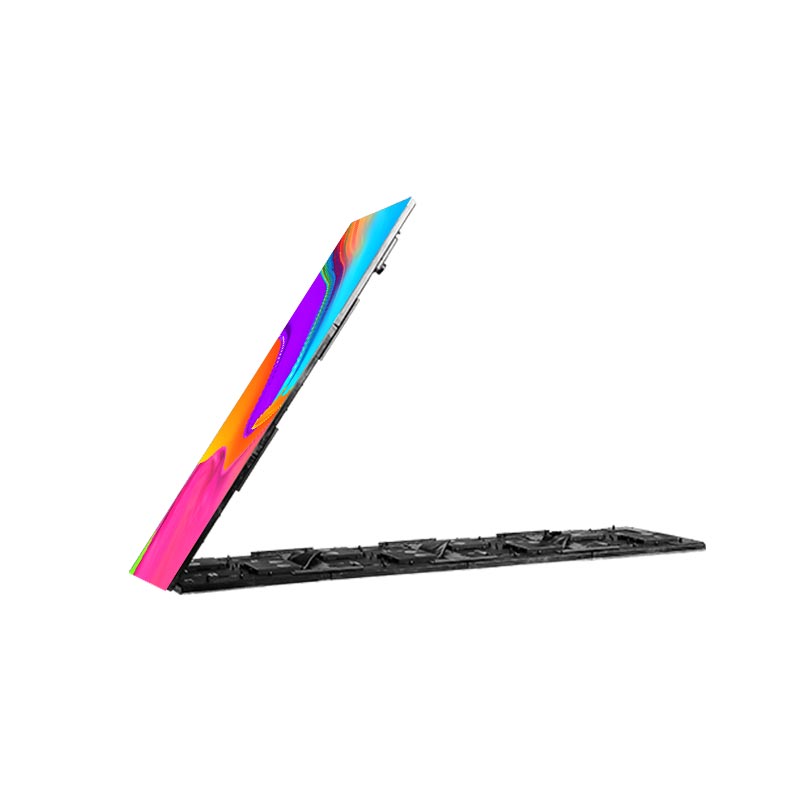

Magic Plus P3.9 180° foldable LED panel close-up

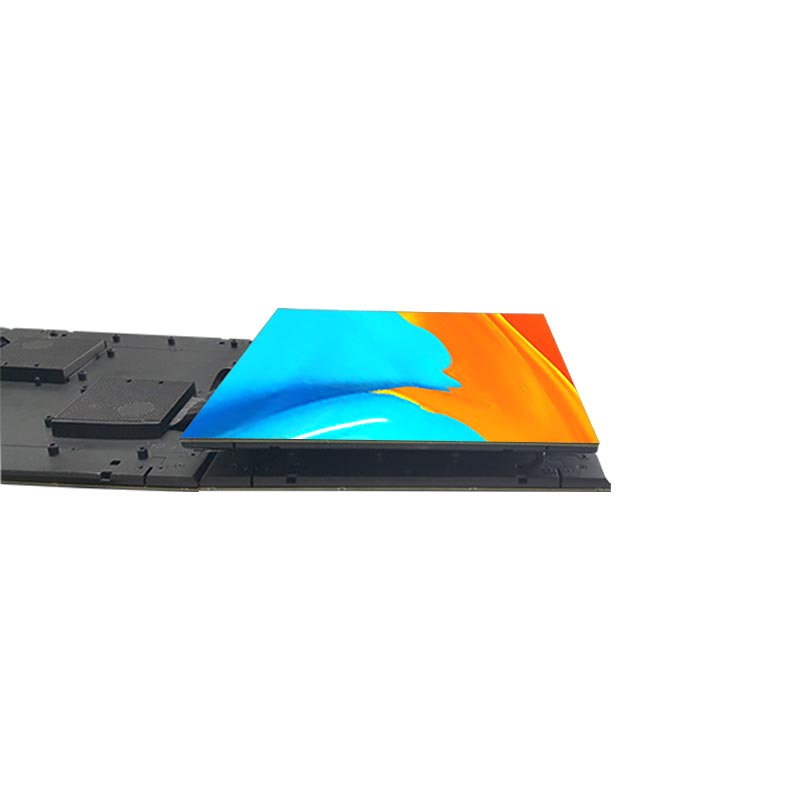

Magic Plus P3.9 LED display installation example
