2-in-1 Hybrid Single-Pass and Scanning Digital Printing Machine with White Ink for Corrugated Cardboard

Name: "2-in-1 Hybrid Single-Pass and Scanning Digital Printing Machine with White Ink for Corrugated Cardboard"
Rating: 5 (218 reviews)

Quantity:

SKU: 2739555245

Model: Digital Printing Machine——CMYK and Five Colors, Different Nozzles, Different DPI, Different Printhead Numbers, Different Printing Width and Speed.

GOKING

Enter Shop

Product Details

2-in-1 Hybrid Single-Pass and Scanning Digital Printing Machine for Corrugated Cardboard

Combining single-pass speed and scanning precision, this versatile machine with white ink capability adapts to both high-volume and high-precision jobs, maximizing asset utilization.

2-in-1 hybrid digital printing machine with white ink for corrugated cardboard

Key Selling Points

Dual-Mode Operation: Single-pass mode for high-speed production, scanning mode for high-precision short runs.
White Ink Printing: Supports CMYK+W for opaque backgrounds and special effects.
Flexible Configuration: Configurable with Epson or XAAR printheads (8 to 256) to suit your specific needs.
Cost-Effective: One machine replaces two, reducing capital investment.
Wide Material Compatibility: Handles corrugated cardboard thicknesses of 2-30mm.

Technical Specifications

Printheads	Epson or XAAR
Modes	Single-pass, scanning, and combined
Single-pass Speed	Epson: 60m/min; XAAR: ≥100m/min
Production Efficiency	700 / 1500 m²/h
Print Width	264mm - 2600mm
Material Thickness	2-30mm
Color Mode	CMYK+W
Ink Type	Water-based dye, pigment, coating, UV eco-friendly
Rated Power	≈14KW
Machine Size	4260x2300x1900 mm
Weight	2800 kg
Electricity	380V, 50/60Hz, Three-phase

Models and Options

Available with 8 to 256 printheads, various print widths, and both Epson and XAAR nozzle options. Customizable with automatic lead-edge feeding and scanning-to-print switching.

Materials and Structure

Carbon steel frame, stainless steel conveying rollers, aluminum alloy beam, magnetic levitation crossbeam, vacuum adsorption platform.

Applications

Suitable for markets with uncertain order types, handling both high-volume standard orders and high-precision short-run jobs.

Customization

OEM/ODM customization, including printhead type and count, width, feeding system, and integration with production lines.

Case Study

Adopted by factories in Turkey and other countries for flexible production, enabling them to serve cross-border e-commerce with POD model efficiently.

FAQ

Q1: How does the hybrid mode work? The machine can operate in single-pass for high-speed runs and switch to scanning for high-precision jobs.

Q2: Can it print white ink? Yes, supports CMYK+W color mode.

Q3: What printheads are available? Epson or XAAR, with 8 to 256 printheads.

Q4: What is the single-pass speed with Epson? 60m/min; with XAAR, at least 100m/min.

Q5: What is the minimum text size? Digital English text as small as 1.5mm.

Q6: Is it suitable for proofing and short runs? Yes, the scanning mode is ideal for proofing and short-run, high-precision orders.

Inquiry Information

MOQ: 1 set. Payment: 30% deposit before production, 70% before shipment. Delivery: Global shipping, secure packaging. Contact: Jake Dong, Email: dongjake402@gmail.com, Tel/WhatsApp: +86 139-2437-1492.

Image and Alt Suggestions

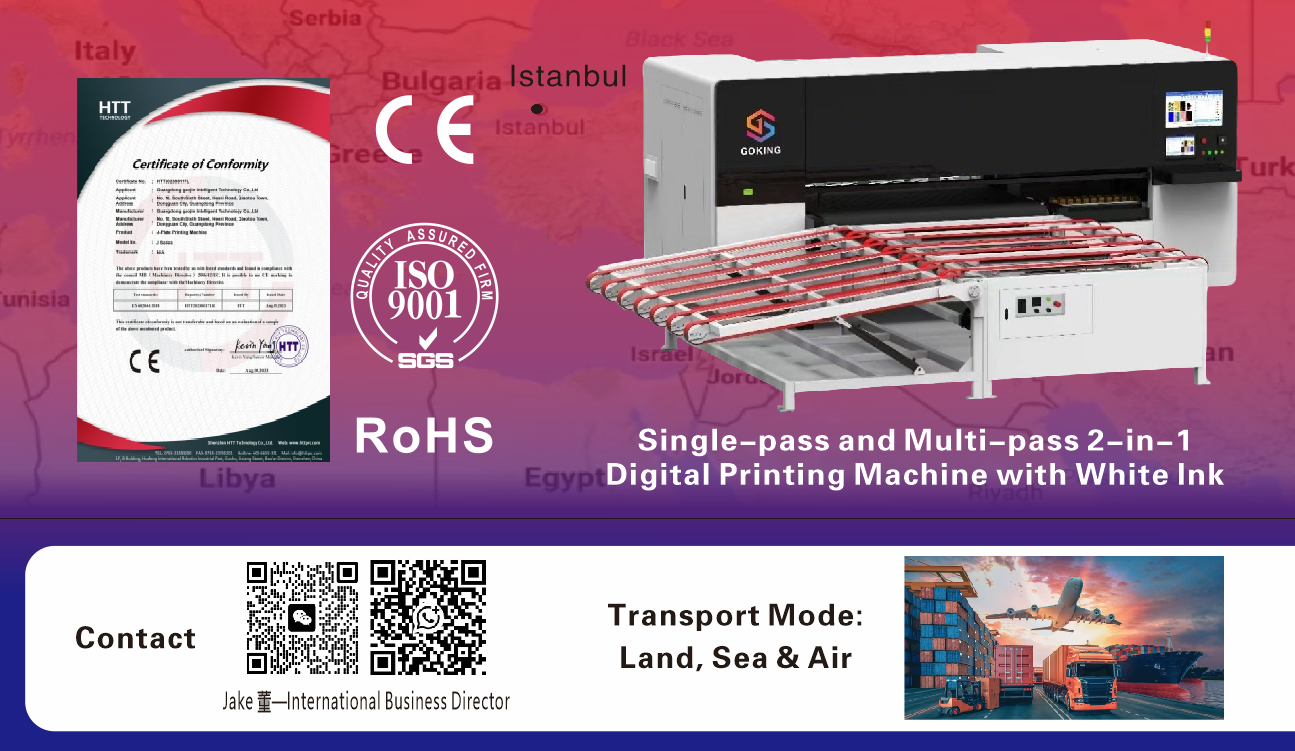

Main Image: 2in1-hybrid-printer.png - Alt: "2-in-1 hybrid digital printing machine with white ink option"
