200W 100AH 4G Solar CCTV Camera
Off-grid surveillance with 18x zoom, 2MP dual-light camera for road and city monitoring.
200w-100ah-4g-solar-cctv-camera
Product Summary

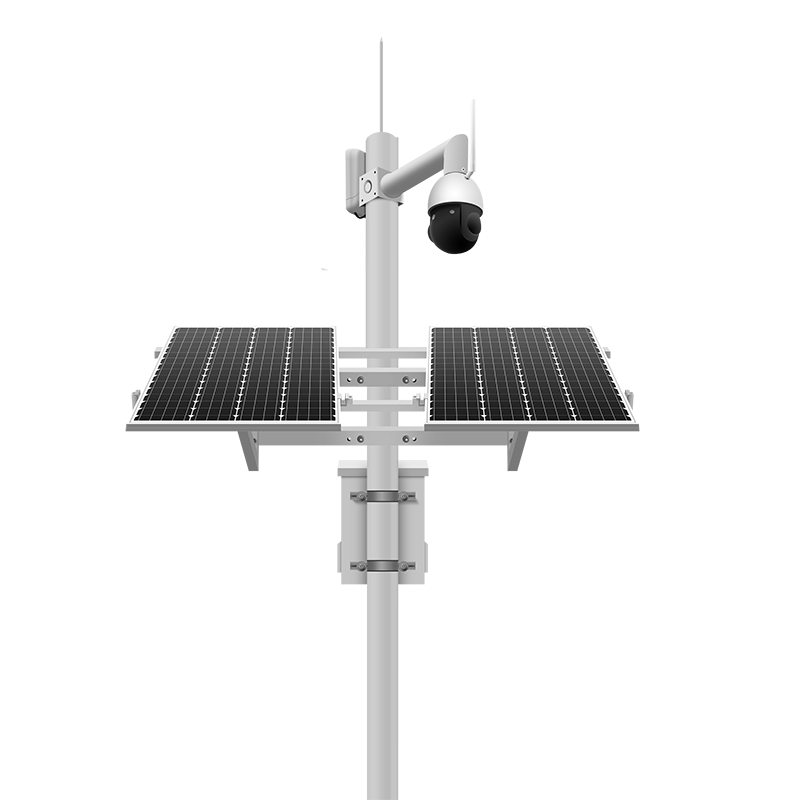

The 200W100AH 4G solar CCTV camera model ML-C200W-18Z is a self-contained surveillance solution featuring a 100W solar panel (expandable to 200W), a 100AH LiFePO4 battery, and a 2MP dual-light 4G dome camera with 18x zoom. It operates 24/7, using solar energy to charge the battery by day and power the camera at night. The system includes a waterproof equipment box, a 10A solar controller, and is designed for low-power consumption, using only one-third the energy of standard cameras.
Key Features
- 100W solar panel with support for 200W upgrade, ensuring reliable charging in sunny climates.
- 100Ah LiFePO4 battery provides long-lasting nighttime operation, backed by 10 years of stable performance in case studies.
- 2MP dual-light dome camera with 18x zoom delivers clear images day and night, and supports remote viewing via mobile app through 4G.
- IP66 waterproof and IK10 impact resistance ensures durability in outdoor environments from -20°C to 60°C.
- Die-cast aluminum housing offers robust protection against harsh weather and vandalism.
- Low power consumption reduces energy use to one-third of ordinary cameras, extending battery life.
Technical Specifications
| Solar Panel | SUNPJ-SUNPAN-18V100W |
| Support | SUNPJ-5152-200W Solar Panel (optional) |
| Camera | HD866-WF61080P, 2MP, dual light, 4G dome, 18x zoom (European version) |
| Equipment Box | SUNPJ-BOX-80/100AH waterproof |
| Controller | SUNPJ-SUNCON10A-002 |
| Battery | 100Ah, 12V, LiFePO4 (32650 cells) |
| Housing | Die-cast Aluminum |
| Operating Temperature | -20°C to 60°C |
| Protection | IP66 waterproof, IK10 impact |
Models and Options
- Standard model: 100W panel, 100Ah battery, 18x zoom camera
- Upgrade option: 200W solar panel for higher energy yield
- Camera options: standard or European version
Materials and Structure
The housing is made of die-cast aluminum, providing a lightweight yet sturdy frame. The camera is housed in a dome structure for wide-angle coverage. The equipment box is waterproof, and all components are designed for outdoor installation on lamp posts.
Applications

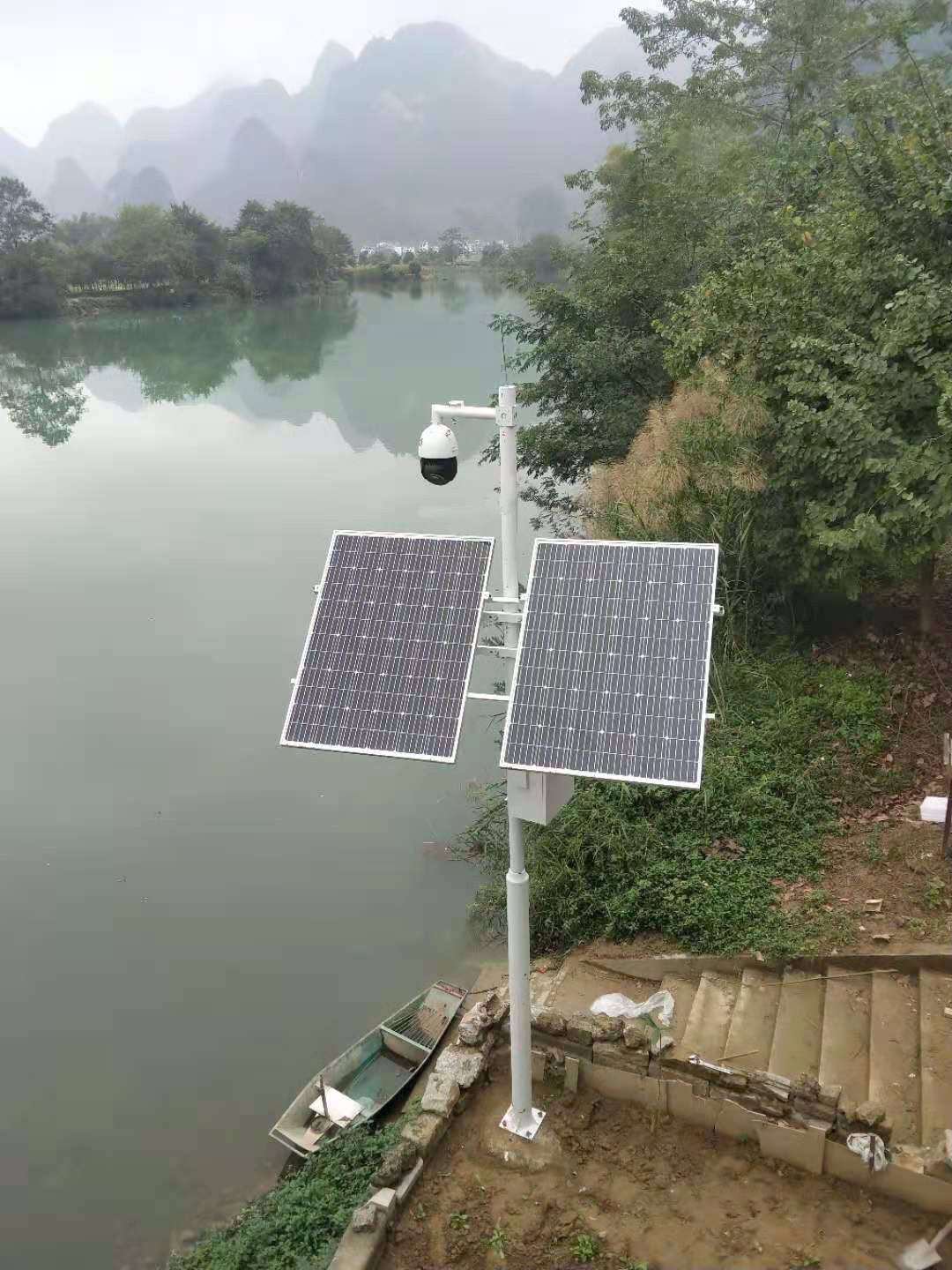

Ideal for municipal and public facilities, including road surveillance, highways, city roads, courtyards, parks, gardens, rural roads, and parking lots. Also suitable for energy conservation and environmental protection projects.
Customization
OEM/ODM services available. Contact us for custom panel sizes, battery capacities, camera specifications, and branding.
Case Study

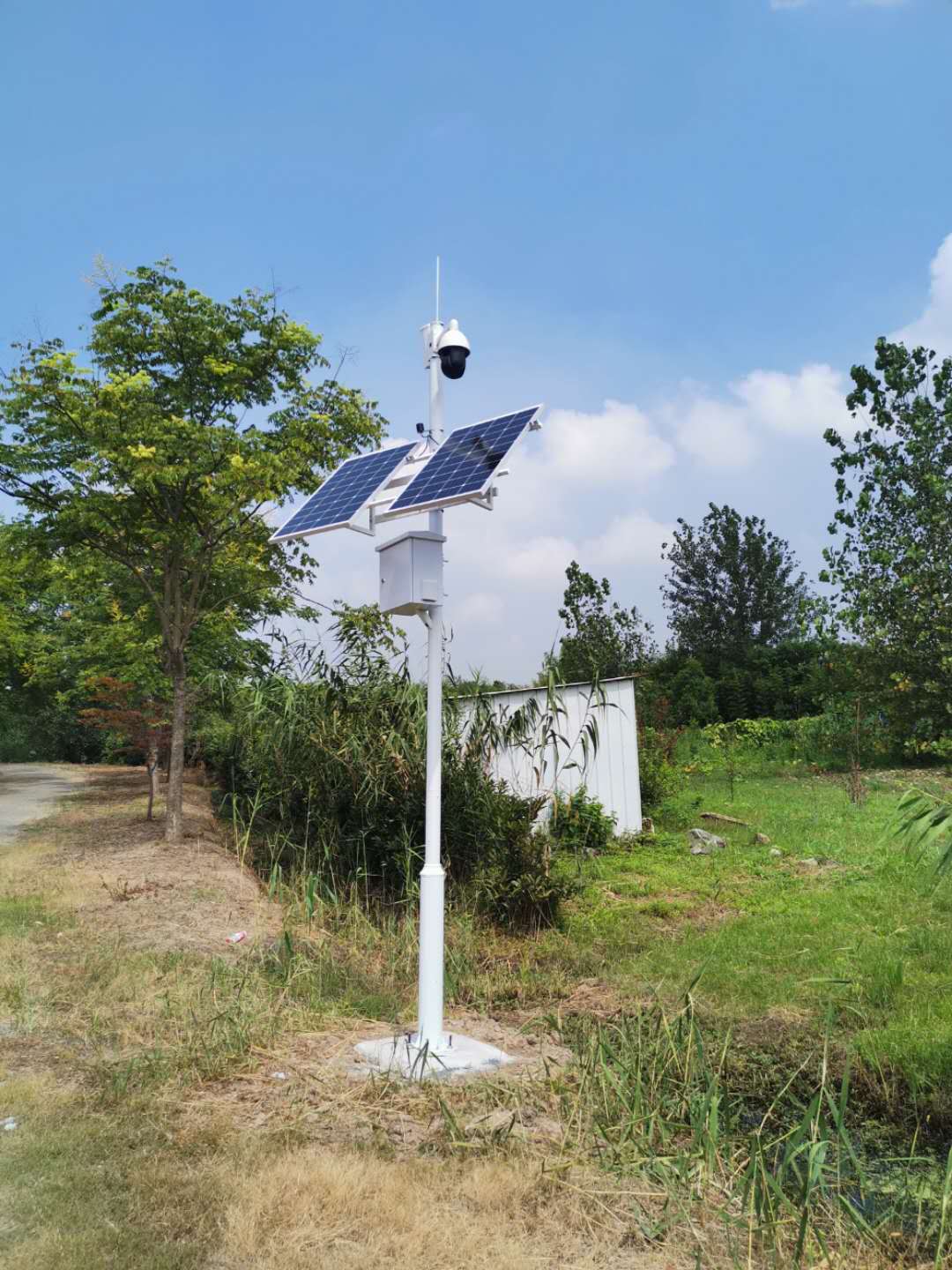

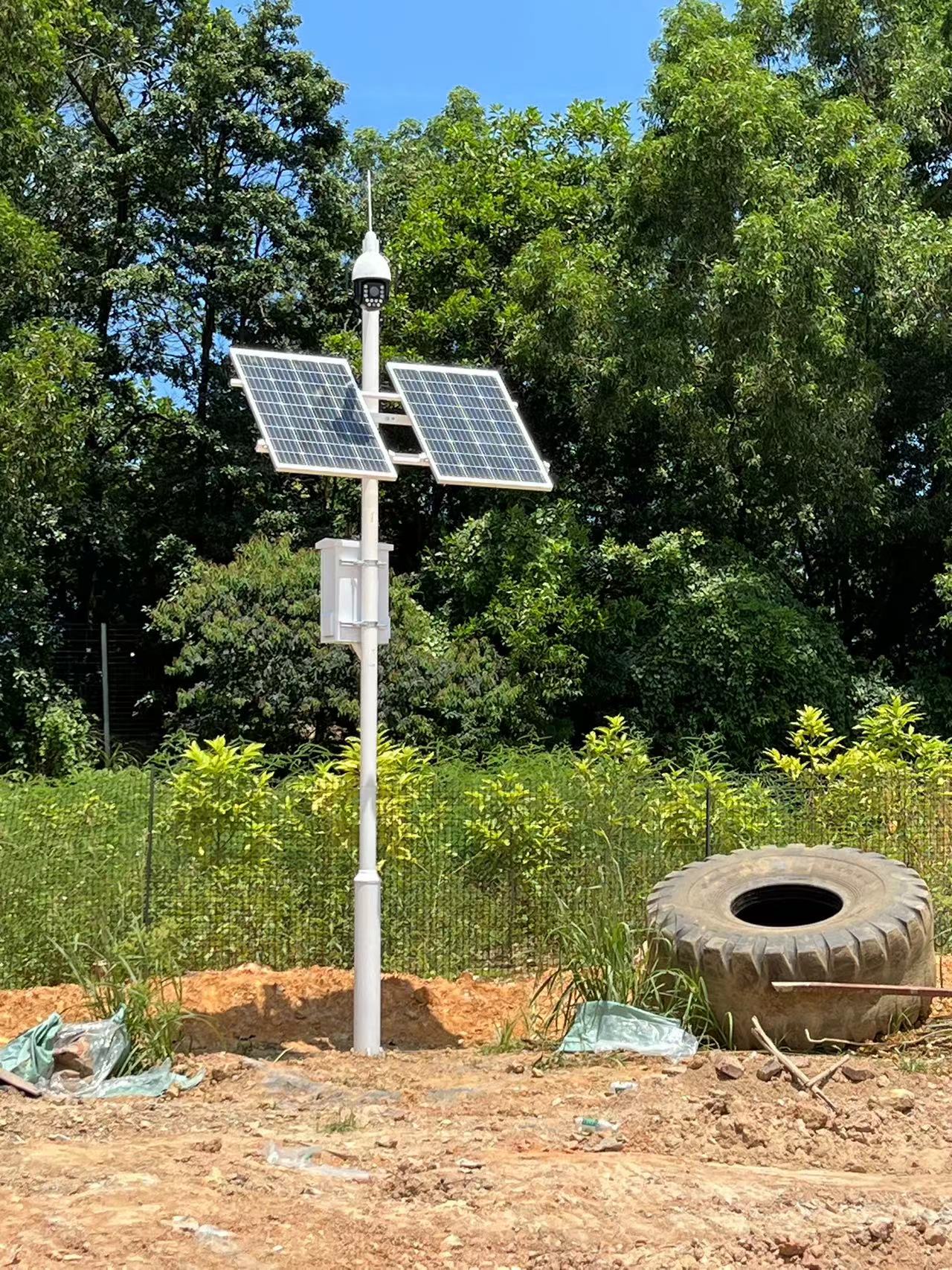

A contractor in Thailand deployed 290 units for road surveillance. Over 10 years, the cameras have operated stably with no decrease in brightness and long nighttime lighting.
FAQ
Q: How long does the battery last at night?A: The 100Ah LiFePO4 battery is designed to power the camera through the night, with case studies showing long lighting times over 10 years.
Q: Can the camera be viewed remotely?A: Yes, insert a SIM card and view live footage via a mobile app over 4G.
Q: What is the operating temperature range?A: The system works in temperatures from -20°C to 60°C.
Q: Is the system waterproof?A: Yes, it has IP66 waterproof rating and IK10 impact resistance.
Q: Can the solar panel be upgraded?A: Yes, it supports a 200W panel upgrade.
Q: What is the minimum order quantity?A: MOQ is 50 units.
Q: What payment terms are accepted?A: 30% deposit T/T, 70% balance T/T.
Inquiry Information
For pricing and detailed specifications, contact:
- Name: Kim
- Email: info@cmoonlight.com
- Tel/WhatsApp: +86 18823328907
- MOQ: 50 units
- Payment: 30% deposit T/T, 70% balance T/T
