200W Split Solar Street Light for 2.5m Double Arm Installation

Quantity:
SKU: 3793070727
Model: ML-Split-200

{{ variable.name }}

{{ value.name }}

200W Split Solar Street Light for 2.5m Double Arm Installation

Alternative configuration of ML-Split-200 for mounting on 10m poles with 2.5m double arms, providing consistent illumination for wider road sections using 80W Cree LED and robust energy storage.

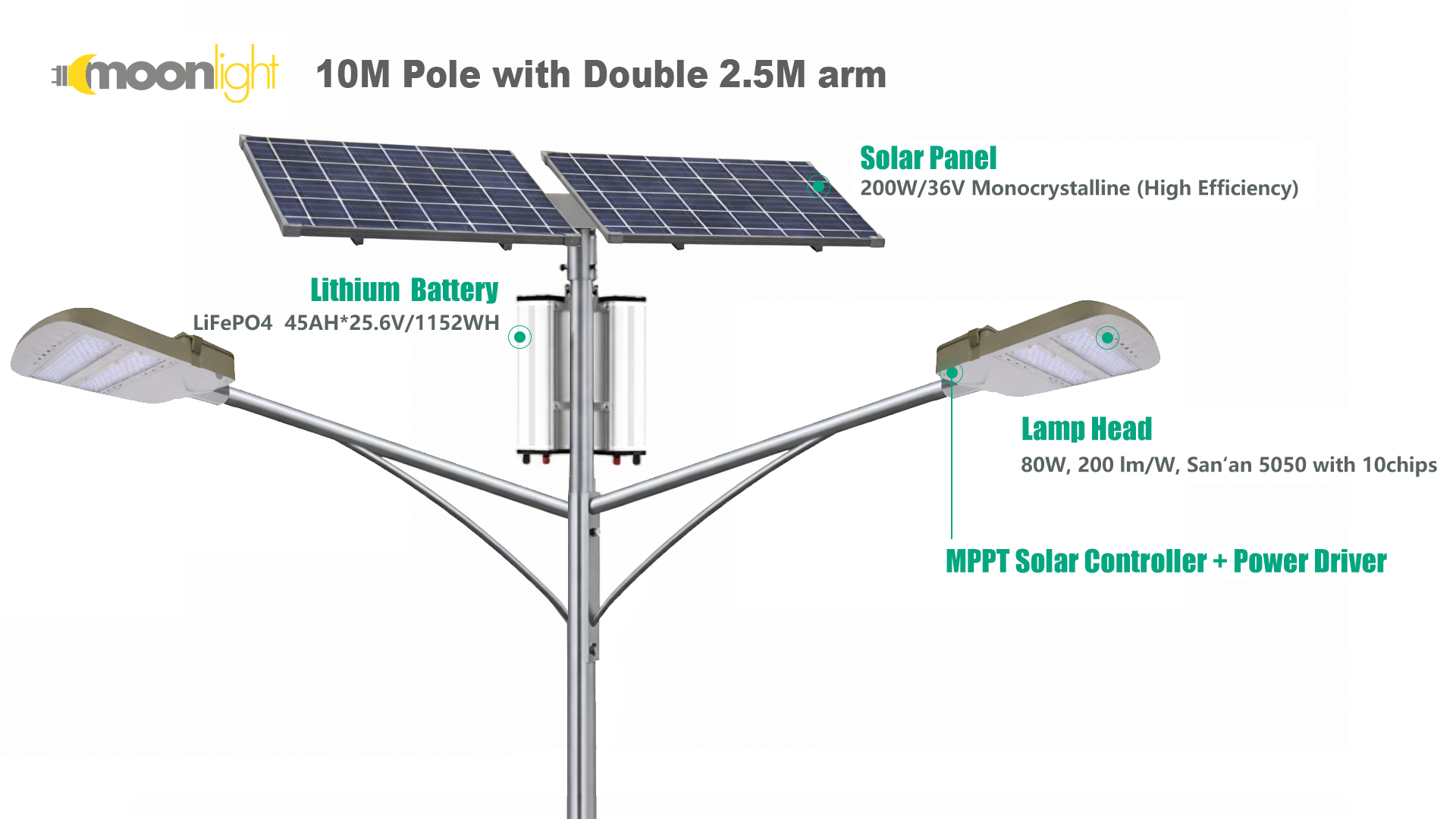

200W split solar street light installed on 10m pole with 2.5m double arm

Key Features

  • 80W LED with 200 lm/W, using Cree 5050 chips from the US
  • 200W monocrystalline solar panel (DC36V)
  • A-class LiFePO4 battery (45Ah×25.6V) for 3-5 rainy days
  • Smart control options: light, time, microwave sensor
  • Die-cast aluminum housing for prolonged outdoor use
  • Compatible with 2.5m double arm installation on 10m poles

Technical Specifications

ParameterValue
Solar Panel200W, DC36V, monocrystalline
LED Power80W (Cree 5050)
Light Efficiency200 lm/W
BatteryLiFePO4, 45Ah×25.6V
Controller12V8A
CCT5000K standard, 3000-6000K custom
Work Time12h/night, 3-5 rainy days
Control ModeLight/Time/Microwave sensor
Recommended Installation Height9-10m
Recommended Installation Distance30-35m
Recommended Pole Diameter60-72mm
Lamp HousingDie-cast Aluminum
Lighting Mode100% for 4hrs, 70% for 4hrs, 30% for 4hrs

Models and Options

This double-arm model is a specific configuration. Other arm lengths (e.g., 1.5m) and pole diameters can be ordered.

Materials and Structure

The lamp housing is made of die-cast aluminum, offering corrosion resistance and effective heat dissipation.

Applications

Suitable for main roads, highways, and wide streets where double-arm poles are used for balanced lighting.

Case Study

In UAE, a contractor used this model for highway lighting (580 units). After 10 years, the lights operated stably with no decrease in brightness.

FAQ

What is the light output?

80W with 200 lm/W, providing high brightness.

How does the microwave sensor work?

It detects movement to dim or brighten the light accordingly, saving energy.

Can the color temperature be adjusted?

Yes, we can customize CCT from 3000K to 6000K.

What is the warehouse capacity?

We have a 20,000 m² factory with annual output of 120,000 units.

Do you provide pre-shipment testing?

Yes, acceptance includes pre-shipment tests.

Inquiry Information

Contact Kim at info@cmoonlight.com or +86 18823328907 for quotes and lead times.
