200lm/W LED High Bay Light 100W-200W with Beaded Lens
Ultra-high efficacy LED high bay light with beaded lens for superior light distribution, ideal for energy-conscious industrial applications.
Product Summary
Optimize your industrial lighting with the HBE beaded lens high bay, offering up to 200lm/W efficacy. This model provides exceptional energy efficiency and light quality, making it a cost-effective solution for warehouses, factories, and large public spaces.
Key Selling Points
- Ultra-High Efficacy up to 200lm/W: Achieve maximum energy savings without compromising on brightness.
- Beaded Lens Design: Provides uniform light distribution, reducing glare and improving visual comfort.
- Wattage Flexibility (100W-200W): Select the appropriate power to match your ceiling height and lighting demands.
- Robust Die-Cast Housing: Ensures durability and effective thermal management for prolonged lifespan.
- Multiple CCT and CRI: From 3000K to 6500K with Ra70/Ra80 options.
- Certified Performance: UL, cUL, RoHS, CE, CB, and TUV certified.
Technical Specifications
| Wattage | 100W / 150W / 200W |
| Efficacy | Up to 200lm/W (170lm/W and 185lm/W also available) |
| Voltage | 100-277VAC / 277-480VAC |
| CCT & CRI | 3000K-6500K, Ra70 / Ra80 |
| Beam Angle | 60° / 90° / 120° |
| Housing Material | Heavy-duty die-cast aluminum |
| Lens | Beaded lens |
| Certifications | UL, cUL, RoHS, CE, CB, TUV |
| Warranty | 5 years standard, 10 years optional |
Models and Options
Available in 100W, 150W, and 200W wattages. The beaded lens version offers enhanced light diffusion. Other options include various CCT, CRI, and beam angles.
Materials and Structure
Constructed with heavy-duty die-cast aluminum, this light is built to endure tough industrial conditions while maintaining optimal thermal performance.
Applications
Suitable for industrial environments such as warehouses, manufacturing plants, and large public facilities. Also effective in applications like movie studios and equestrian centers.
Case Study
For a movie studio project in the US, 150W UFO high bay lights were utilized for indoor lighting, operating 24/7. The high efficacy and reliability contributed to uninterrupted production and energy savings.
FAQ
What is the efficacy of this model?
Up to 200lm/W, with 170lm/W and 185lm/W options.
Does the beaded lens affect light distribution?
Yes, it provides a more uniform spread and reduces glare.
What wattages are available?
100W, 150W, and 200W.
What certifications does this product have?
UL, cUL, RoHS, CE, CB, and TUV.
What is the warranty period?
5 years standard, 10 years optional.
Can it be used in high ceiling applications?
Yes, designed for high bay installations.
What are the delivery terms?
EXW, FOB, or CIF.
Is third-party inspection accepted?
Yes, pre-shipment test and SGS inspection available.
Customization
We offer customization of wattage, CCT, CRI, beam angle, and lens type based on project needs. Contact our sales team for tailored solutions.
Inquiry Information
For inquiries, email info@aokledlight.com or call +86-755-23579418.
Image Information
Filename: hbe-200lm-beaded-lens.png

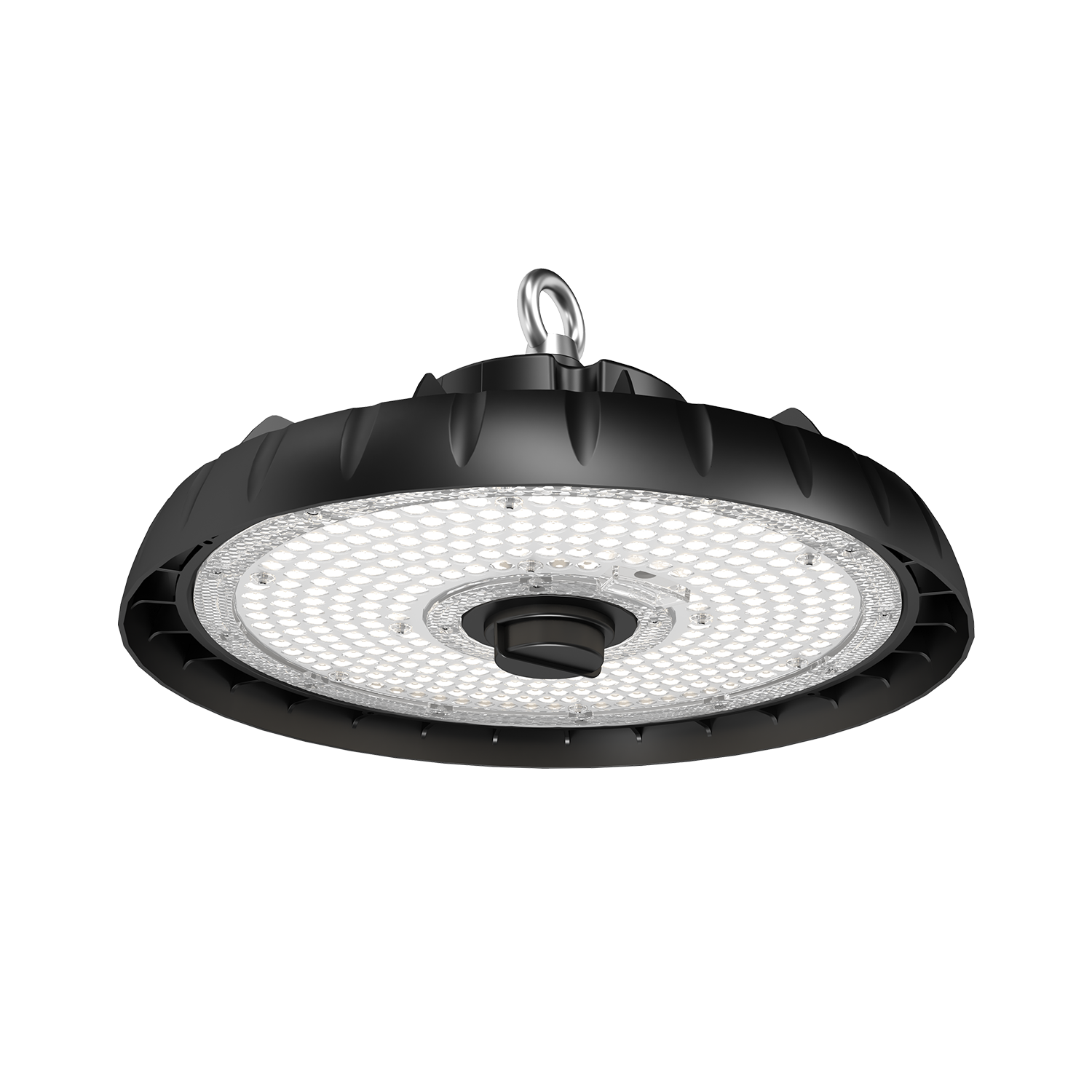

Alt Text: HBE 100W-200W LED high bay light with beaded lens
