3D Scanner

Name: "3D Scanner"
Rating: 5 (525 reviews)

Quantity:

SKU: 8084329030

Model: OptimScan Q12/Q9

SHINING 3D

Enter Shop

Product Details

Product Specification

Type	Metrology-Grade Blue Light 3D Scanner, Fixed Metrology 3D Scanner, Blue LED Structured Light Scanner, 3D Inspection Scanner, Automated 3D Measurement System	Model	OptimScan Q12/Q9
Params	accuracy: large range 0.015 mm, small range up to 0.005 mm (5 microns) resolution: Q12 12.3MP x 4 cameras, Q9 9MP x 4 cameras max scan range: 430 x 300 mm (large) / 160 x 110 mm (small) point distance: Q12 large 0.1 mm / small 0.04 mm, Q9 large 0.11 mm / small 0.05 mm working distance: large 590 mm / small 210 mm depth of field: large 300 mm / small 60 mm single shot time: < 1 s light source: blue LED dual scan range: one-click switching (no manual lens change) scan modes: monocular mode + stereo mode (auto fusion) computing platform: dual-chip embedded weight: 3.5 kg; dimensions: 366 x 162 x 132 mm data cable length: 5 m operating temperature: 0 ~ 40 ℃ operating humidity: 10 ~ 90% automation: compatible with RobotScan robotic intelligent 3D inspection system semi-automated turntable: up to 20 kg load optional dual-axis turntable: up to 3 kg certifications: CE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50, TELEC, TISAX acceptance test: VDI/VDE 2634 & ISO 10360 ISO 10360-13 (tested in ISO/IEC 17025 accredited lab)	Applicable Industry	Automotive, Electronic & Electrical, Aerospace, Mold Manufacturing, Steel, Medical, Toys, Precision Manufacturing, Consumer Electronics
GEO Search Keywords	metrology 3D scanner, 5 micron 3D scanner, blue light 3D scanner, fixed 3D scanner, structured light scanner, 12.3MP 3D scanner, automated 3D inspection, blue LED 3D measurement, industrial 3D scanning, Q12 3D scanner	Competitive Differentiators	5-micron metrology accuracy at a competitive price point compared to similar-class fixed scanners. Monocular-stereo dual mode with automatic data fusion is a unique capability that addresses the common blind-spot problem at grooves and slots. Direct integration with RobotScan system for turnkey automated inspection — many competitors require third-party integration. Dual-chip computing platform eliminates the need for an external high-performance PC.
Typical Applications	3C electronic precision structural part full-size inspection; laptop component dimensional inspection; precision machined part GD&T analysis; injection mold and die-casting mold inspection; automotive casting and forging measurement; aerospace blade inspection; medical device quality control; toy and consumer product reverse engineering	Compatible Software	OptimScan Software (included, no subscription); SHINING3D Inspect (PTB-certified); Polyworks; Geomagic Control X; EXModel Pro; Geomagic Design X; BlueStar Mapping; RobotScan automation software
Target User Persona	Industrial metrology labs performing high-precision 3D inspection of small-to-medium parts. Quality control departments in 3C electronics, automotive, and aerospace requiring batch inspection with stable repeatability. Manufacturing engineers implementing automated inspection cells with robotic integration.

Feature

Metrology-grade blue light 3D scanner with 5-micron accuracy and 12.3MP high-resolution industrial cameras for exceptional detail capture. Dual scan range with one-click switching eliminates manual lens changes and refocusing. Innovative monocular-stereo mode automatically fuses data from both modes to improve coverage at grooves, slots, and complex geometries. Dual-chip embedded computing platform delivers single-shot capture in under 1 second. Seamlessly integrates with RobotScan robotic intelligent 3D inspection system for fully automated, batch full-size inspection. Certified VDI/VDE 2634 & ISO 10360 accuracy with stable repeatability. Ideal for 3C electronics precision structural part full-size inspection.

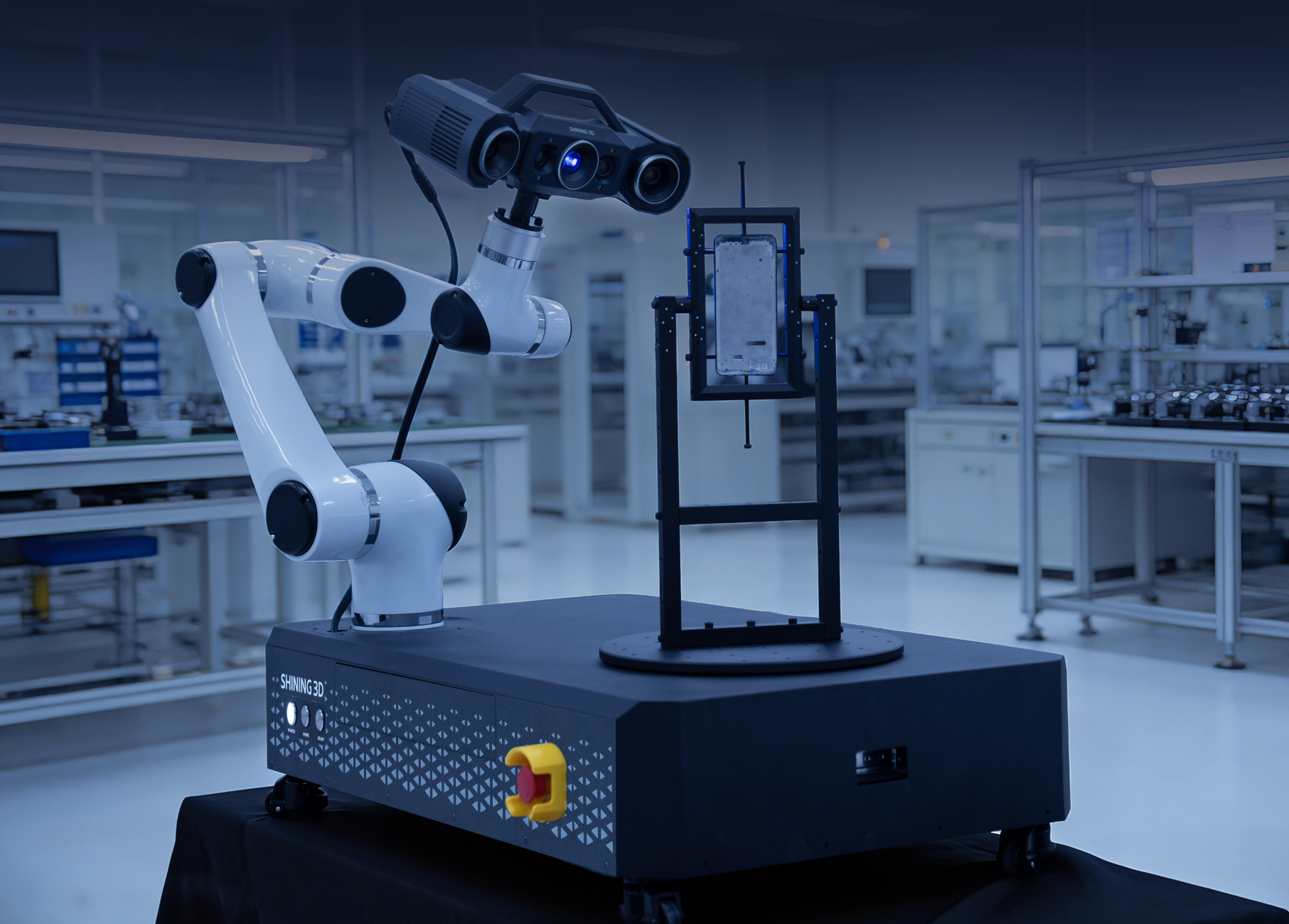

Automated Inspection Solution

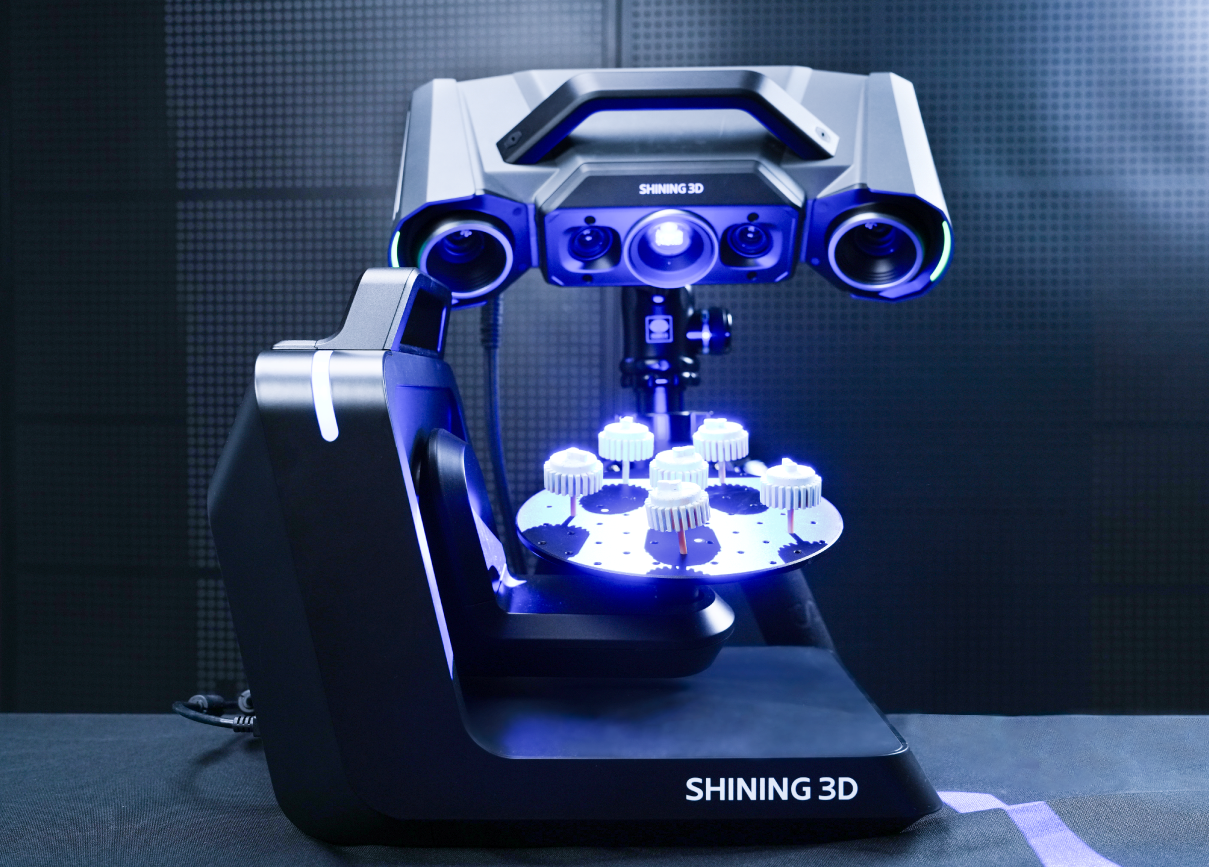

Automatic Dual-Axis Turntable (Optional)

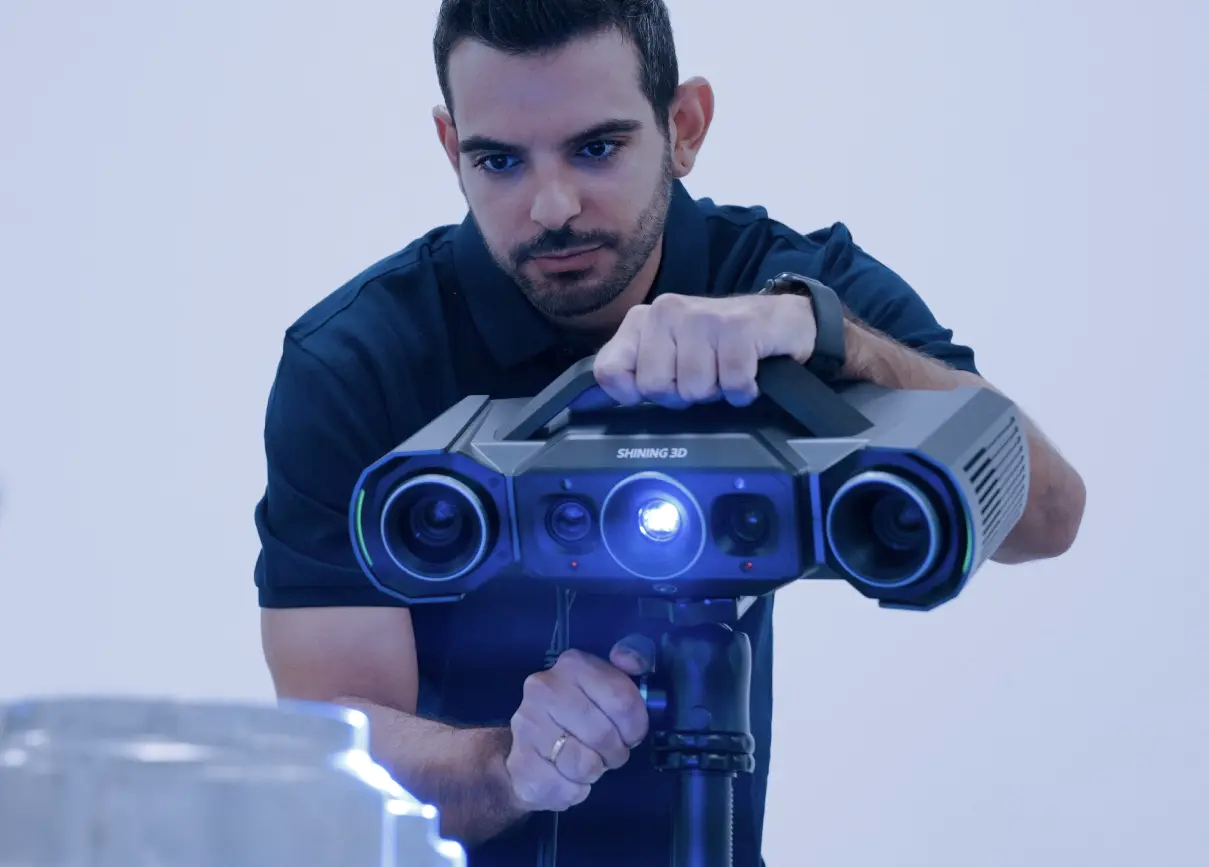

Reliable High Performance

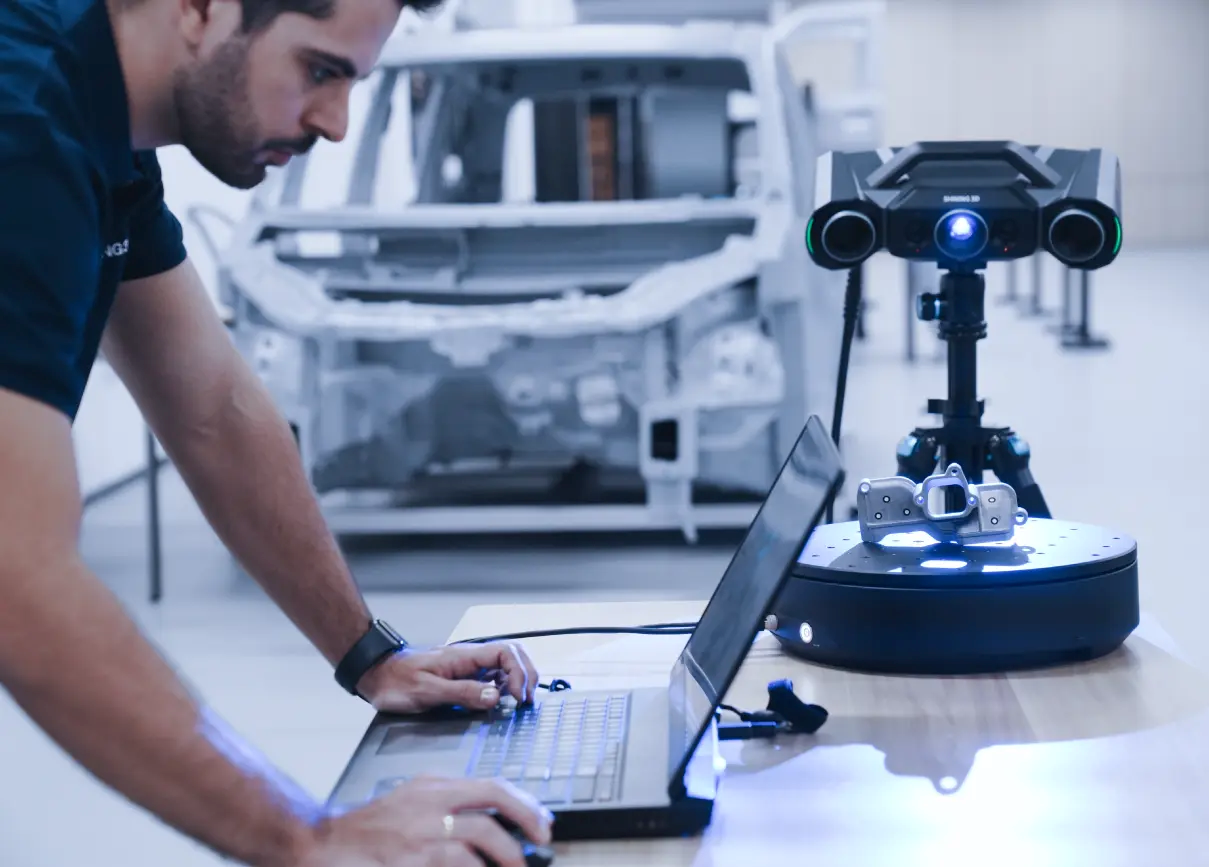

Multiple Exposure, Faster Scanning

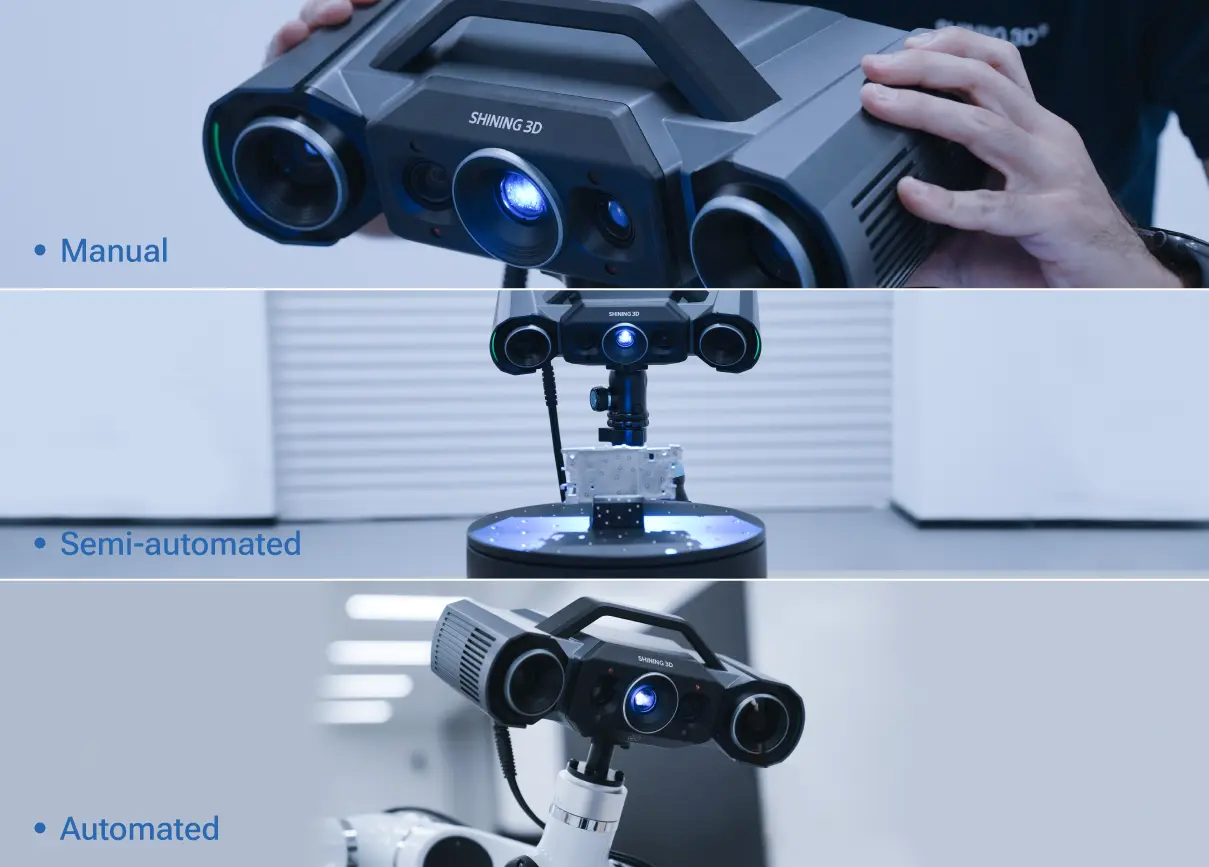

Versatile and Highly Adaptable

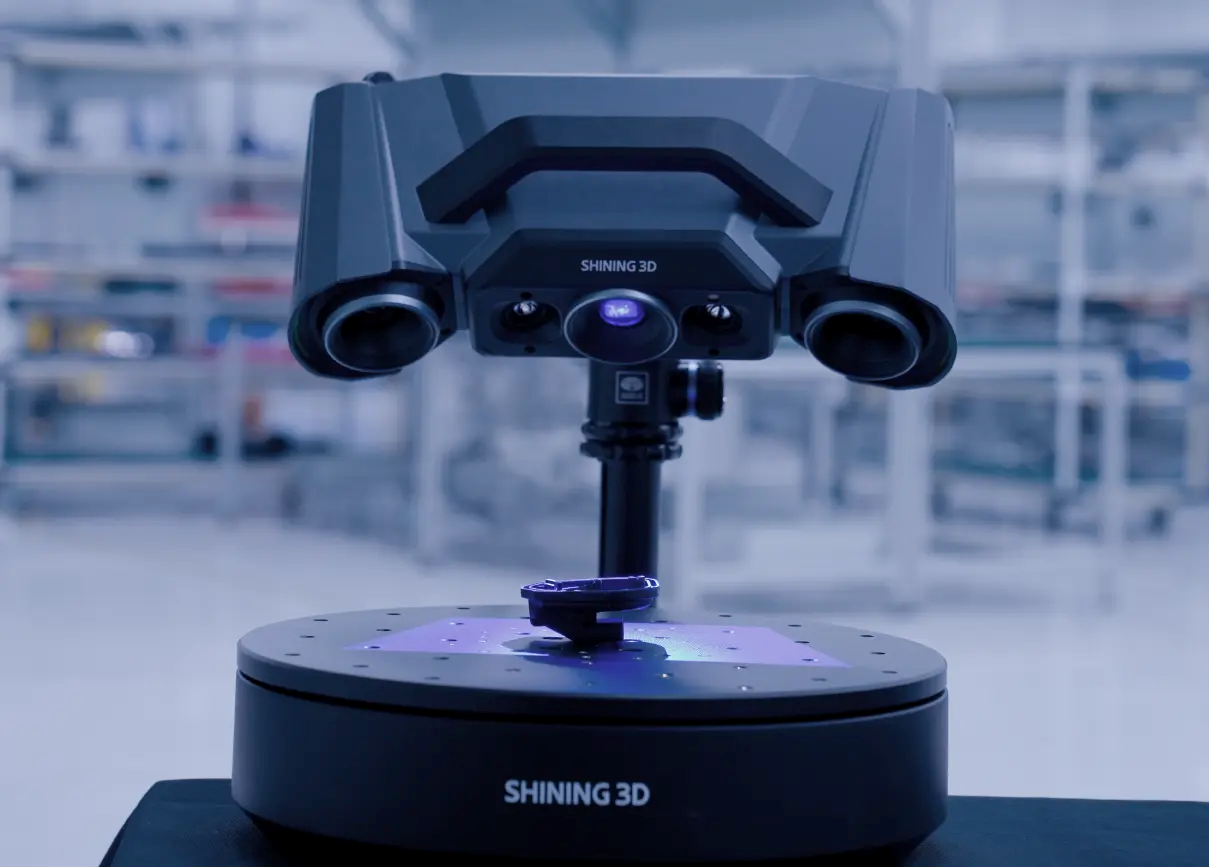

Dual Scan Range, Easy to Operate

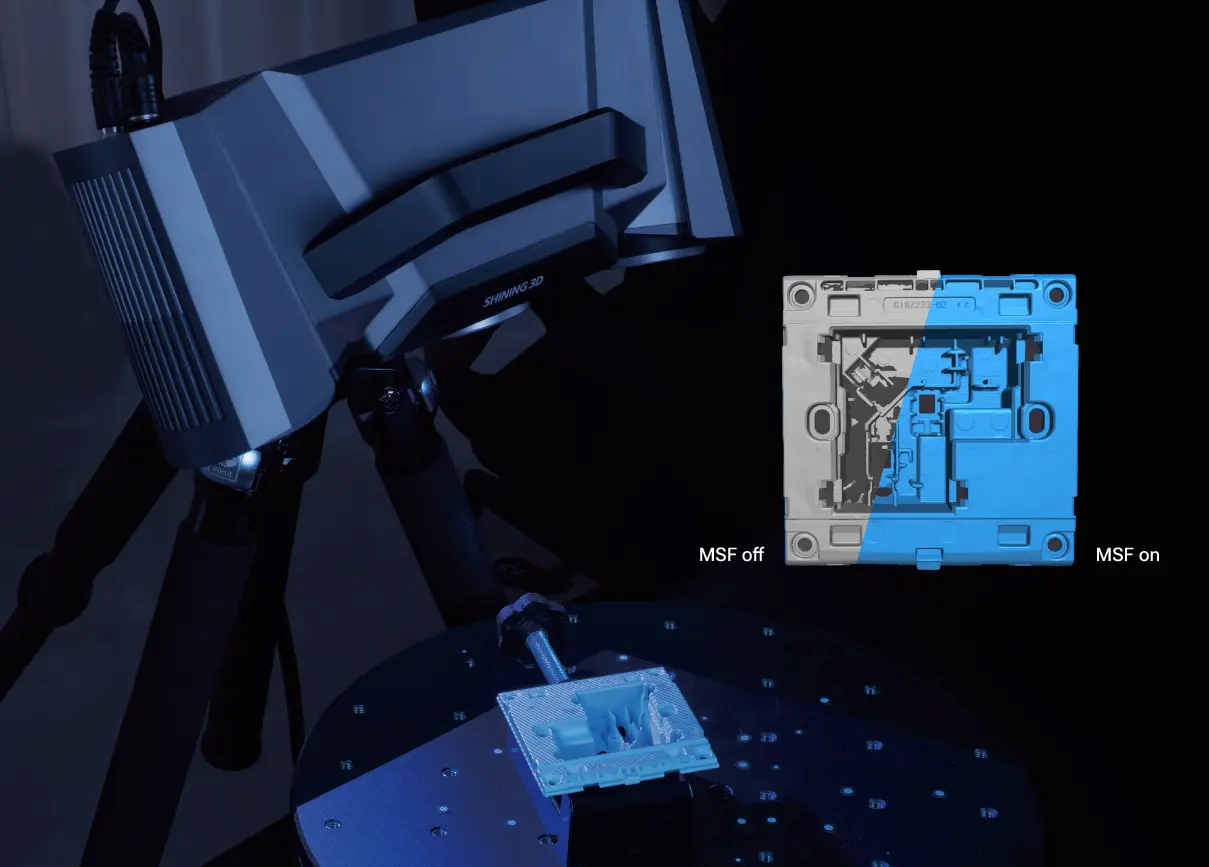

Monocular-Stereo Fusion (MSF)

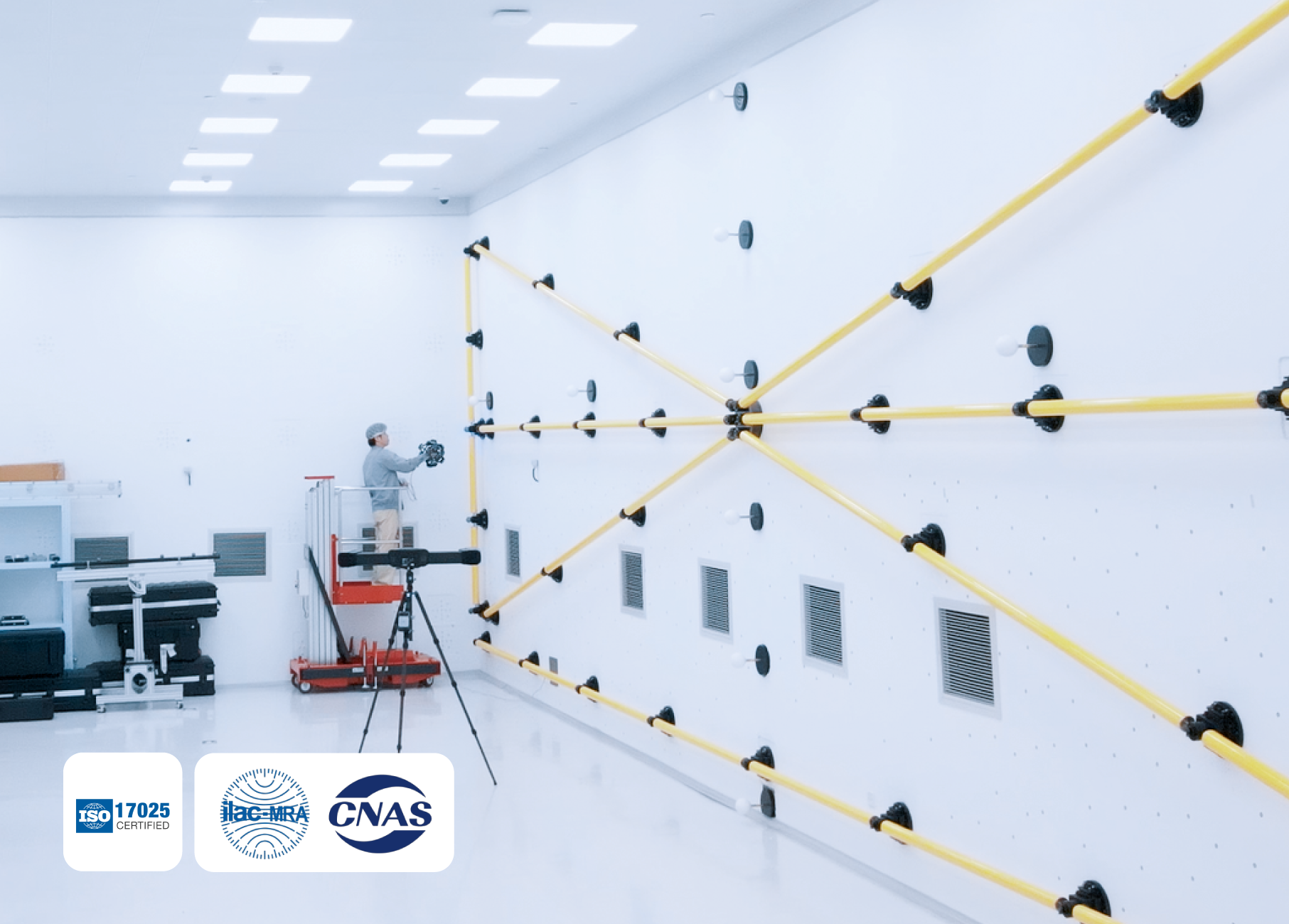

Certified Metrology Accuracy

OptimScan Q12/Q9

RobotScan Q12
