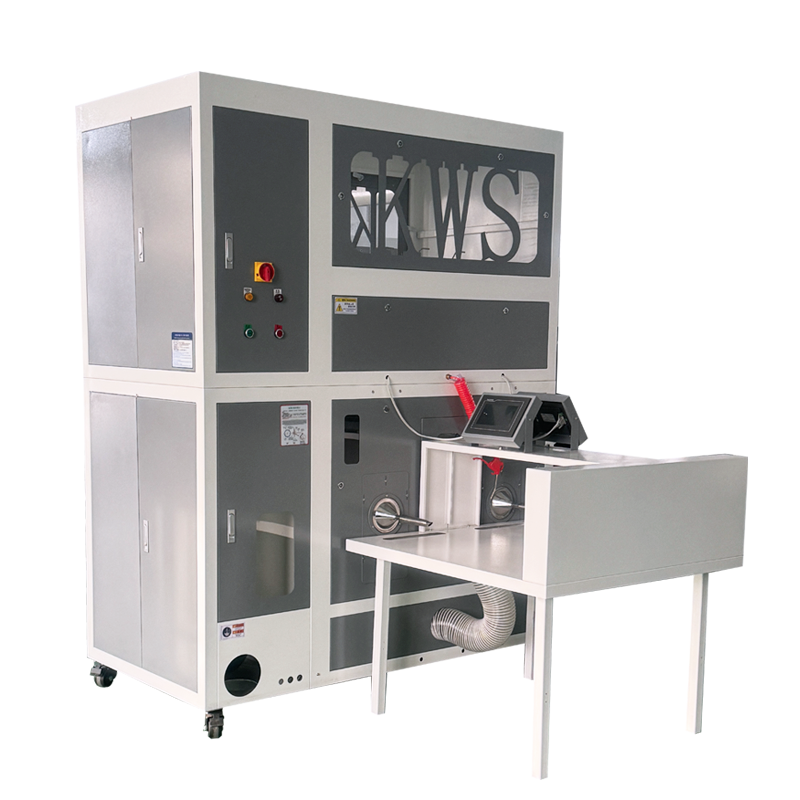

4-Workstation Pillow Filling Machine KWS6901-4
The KWS6901-4 features 4 filling ports for high-throughput production, capable of processing 400-800 kg/h with 1% accuracy. Ideal for large-scale bedding and textile manufacturing.
Key Selling Points
- High Throughput: 4 workstations maximize output; fills a 600g pillow at 10-20 pieces/min.
- Precision Weighing: 1% accuracy (±5-10g) ensures consistent product quality across all stations.
- Multi-Material Compatibility: Handles polyester fiber (0.6D-15D), fiber balls, shredded foam, down, EPS balls, and mixed fills.
- Durable Construction: Steel frame with pneumatic operation, designed for long-term industrial use.
- CE Certified: Complies with EN ISO 12100:2010 and EN 60204-1:2018, safe for EU market.
Technical Specifications
| Model | KWS6901-4 |
| Number of Workstations | 4 |
| Production Capacity | 400-800 kg/h |
| Filling Speed (600g pillow) | 10-20 pieces/min |
| Accuracy | ~1% (Error ±5-10g) |
| Optimal Filling Range | 100-2000g |
| Power Range | 10.5-13.5 kW |
| Suitable Raw Materials | 0.6D-15D polyester fiber, fiber balls, shredded foam, down, EPS balls, etc. |
| Material | Steel |
| Certification | CE (EN ISO 12100:2010, EN 60204-1:2018) |
Models and Options
Available in 2-workstation (KWS6901-2) and 4-workstation (KWS6901-4) configurations. Can be integrated with automatic fiber opening and feeding systems.
Materials and Structure
Constructed from steel, pneumatic automatic continuous operation. Suitable for indoor dry workshops with stable three-phase power and compressed air supply.
Applications
Perfect for high-volume production of pillows, duvets, quilts, cushions, down jackets, plush toys, beanbags, and pet beds.
Customization
MOQ: 1 unit. Delivery terms: EXW, FOB, CIF, CFR, DDP. Payment: 30% TT deposit, 70% before shipment. Pre-shipment testing and third-party inspection (SGS) available.
Case Study
A Saudi manufacturer deployed 10 units of our KWS6901-4 filling line. After 3 years, they achieved 30% energy savings, 35% labor cost reduction, and 40% capacity increase. The machines operate normally with minimal maintenance.
FAQ
What is the difference between KWS6901-2 and KWS6901-4?
The main difference is the number of filling ports: 2 vs 4. KWS6901-4 offers higher throughput for large-scale production.
Can this machine fill down feathers?
Yes, it can fill down feathers, polyester fiber, and other similar raw materials, including mixed fills.
What is the accuracy of the filling?
Accuracy is about 1%, with error range ±5-10g, depending on material and fill weight.
What power supply is needed?
Requires stable three-phase power supply; power range is 10.5-13.5 kW.
Is the machine CE certified?
Yes, it holds CE-MD certification (certificate M.2024.206.C100562) valid until 2029.
What is the warranty?
Standard warranty is typically 1 year, contact us for details.
Can I get a sample test?
Pre-shipment testing is available; we also offer third-party inspection upon request.
Inquiry Information
Contact: Yan Du, Email: kivas@qdkws.com, Tel: +86 18669828215, WhatsApp: +86 18669828215. Address: 279, Huan Tai East Road, Huangdao District, Qingdao, China.
