40W 35Ah 4G Solar CCTV Camera with 4mm Fixed Lens and 2MP Dome for Road Monitoring
This 4G solar CCTV camera integrates a 6V 40W monocrystalline solar panel, a 3.2V 35Ah LiFePO4 battery, and a low-power 2MP dome camera with a 4mm fixed focus lens. Designed for off-grid road and public area surveillance, it operates 24 hours a day using solar energy, with live viewing via mobile app over 4G networks.
Key Selling Points
- Micro Power Consumption: Consumes only 1/3 the power of ordinary surveillance cameras, extending battery life and ensuring 24/7 operation.
- Long-Lasting LiFePO4 Battery: 35Ah lithium iron phosphate battery provides stable power output and reliable performance in a wide temperature range.
- 4G Remote Monitoring: Insert a SIM card to transmit real-time video to your smartphone via 4G, keeping you connected from anywhere.
- European Version Dome Camera: 2MP micro power dome with fixed focus, ideal for precise area monitoring.
- Rugged Die-Cast Aluminum Housing: Lamp housing in die-cast aluminum ensures durability and effective heat dissipation.
- IP66 Waterproof & IK10 Impact Resistance: Designed for outdoor use, resistant to water and physical impacts, with anti-theft design.
Technical Specifications
| Parameter | Value |
|---|
| Solar Panel | SUNPJ-SUNPAN-6V40W |
| Camera | HC863HD-4mm4G 2 million pixel micro power 2.5 inch dome camera (fixed focus) European version |
| Battery | Battery35AH3.2V / Output 12V (LiFePO4 Lithium) |
| Controller | SUNPJ-SUNCON-3.2T12V |
| Support | SUNPJ-5150 40W solar panel with integrated waterproof box |
| Accessories | Throat clamp screw |
| Housing Material | Lamp Housing: Die-cast Aluminum |
Models and Options
Model: ML-C40W-4MM
Type: 40W35AH 4G Solar CCTV Camera
Configuration: European version with 4mm fixed focus lens.
Materials and Structure
The lamp housing is made of die-cast aluminum, providing robust protection and thermal management. The system includes a 6V 40W solar panel, a LiFePO4 battery pack with 35Ah capacity at 3.2V, and a dedicated charge controller (SUNPJ-SUNCON-3.2T12V) to manage power flow efficiently.
Applications
Ideal for municipal and public facilities, road monitoring, energy conservation projects, highways, city roads, courtyards, parks, rural roads, and parking lots. Also suitable for commercial lighting environments such as warehouses, mining areas, and floodlighting.
Case Study
Philippines Contractor Road Surveillance Project: A contractor in the Philippines deployed 60 units of this solar CCTV camera for road surveillance. Over a 10-year period, the cameras have operated with stable performance, maintaining brightness and long lighting time at night without significant degradation.
FAQ
Q: What is the solar panel wattage and voltage?
A: The solar panel is rated at 6V and 40W.
Q: What type of battery is used?
A: The system uses a 35Ah, 3.2V lithium iron phosphate (LiFePO4) battery with 12V output.
Q: How does the camera receive power?
A: The battery discharges to the camera, and the battery is charged by the solar panel during the day.
Q: Is the camera suitable for outdoor use in extreme temperatures?
A: Yes, it is designed to operate in temperatures from -20°C to 60°C and is IP66 waterproof.
Q: Can I view the surveillance footage remotely?
A: Yes, by inserting a SIM card, the camera transmits video via 4G signal to your mobile app.
Inquiry Information
For pricing and more details, contact Cmoonlight at info@cmoonlight.com or WhatsApp +86 18823328907.
Image Filename and Alt Suggestions
Image 1:
Filename: 40w-solar-cctv-camera-ml-c40w-4mm-back-view.png
Image 2:

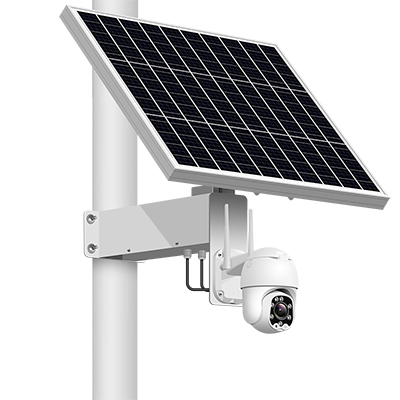

Filename: 40w-solar-cctv-camera-ml-c40w-4mm-front-view.png
