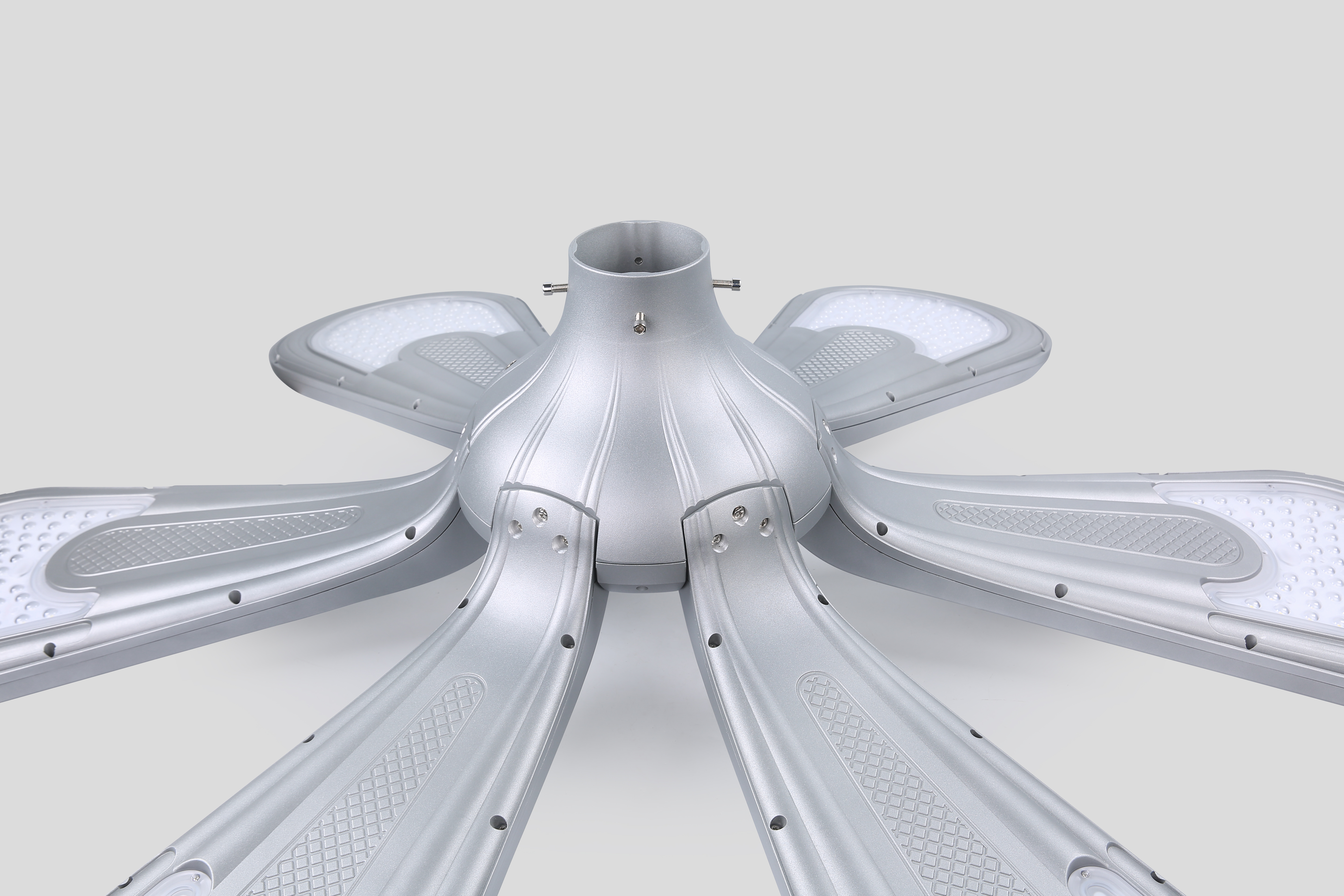

6-Head Lily Solar Garden Light
The Lily Series solar garden light (model ML-TYD5005-6) combines a decorative lily design with efficient solar technology. It features a 6-head "lily of prosperity" configuration, a monocrystalline silicon solar panel of 96W/5V, and a lithium battery of 3.2V/100AH, providing reliable outdoor lighting. With IP65 protection and die-cast aluminum housing, this light is built for durability in municipal and residential environments.
Key Features
- 96W monocrystalline silicon solar panel ensures efficient solar energy conversion, reducing reliance on grid electricity.
- 100AH lithium battery provides extended lighting duration, supporting all-night operation.
- IP65 protection rating makes it resistant to dust and water, ensuring stable performance in various weather conditions.
- Die-cast aluminum housing offers excellent heat dissipation and long-term durability.
- Philips 2835 LED beads deliver bright, consistent illumination with a choice of pure white or warm white light.
- 6-head design offers 360-degree illumination, suitable for wide-area lighting in parks and roads.
Technical Specifications
| Parameter | Value |
|---|
| Model | ML-TYD5005-6 |
| Solar Panel | Monocrystalline silicon 96W/5V |
| Battery | Lithium battery 3.2V/100AH |
| Light Source | Philips 2835, 480 LED beads |
| Color Temperature | Pure white / warm white |
| Housing Material | Die-cast aluminum + PC |
| Shell Color | Sand gray |
| Protection Level | IP65 |
| Operating Temperature | -20℃ to 50℃ |
| Lamp Head Size | 1660*H435mm |
Models and Options
This is the 6-head lily model (ML-TYD5005-6). Available light colors: pure white and warm white. Customization options for solar panel wattage and battery capacity are available upon request.
Materials and Structure
The lamp housing is made of die-cast aluminum, ensuring robust construction and effective heat dissipation. The lampshade uses PC material for impact resistance and UV stability. The structure is designed for easy installation and maintenance.
Applications
Ideal for municipal and public facilities, energy conservation projects, road lighting, parks, residential areas, and commercial spaces.
Case Study
In a project in the Philippines, 1,280 units of this Lily Series solar garden light were installed for road lighting in residential and commercial areas. After 10 years of operation, the lights maintained stable performance with no decrease in brightness, and lighting time at night remained long.
FAQ
Q1: What is the solar panel wattage?
A: The solar panel is monocrystalline silicon with a power of 96W and voltage of 5V.
Q2: What battery does it use?
A: It uses a lithium battery with 3.2V and 100AH capacity.
Q3: How long does the light stay on?
A: With the 100AH battery, it can provide extended lighting duration through the night, though exact hours depend on sunlight conditions.
Q4: Can I choose the light color?
A: Yes, the light is available in pure white or warm white.
Q5: What is the protection rating?
A: The protection level is IP65, meaning it is dust-tight and protected against water jets.
Q6: What is the lamp head size?
A: The lamp head size is 1660*H435mm.
Q7: What is the ambient temperature range?
A: It can operate in temperatures from -20℃ to 50℃.
Q8: Is it suitable for road lighting?
A: Yes, it has been successfully used for road lighting in residential and commercial areas.
