6x7 Galvanized Steel Wire Rope for Substation Construction and Rigging

The 6x7 construction wire rope is a versatile and robust option for substation construction and general rigging applications. Its 6 strands of 7 wires each provide a good balance of strength and flexibility. With tensile strengths ranging from 1570 to 2160 MPa and optional galvanized coating, it offers excellent corrosion resistance for outdoor environments.

Key Selling Points

High Tensile Strength: 1570-2160 MPa handles heavy rigging loads.
Corrosion Resistance: Galvanized option protects against rust and extends service life.
Customized Services: Diameters from 1-120mm to match specific requirements.
Standards Compliance: Meets GB/T, EN, and GOST standards, ensuring global acceptability.
Application Versatility: Suitable for substation construction, pole and tower assembly.
Proven Manufacturing: Produced in ISO-certified facility with 300,000 tons annual output.

Technical Specifications

Parameter	Value
Construction	6x7
Rope Diameter	1-120 mm
Tensile Strength	1570, 1670, 1770, 1870, 1960, 2160 MPa
Material	High carbon steel
Standards	GB/T, EN, GOST
Surface Treatment	Ungalvanized or galvanized

Models and Options

Available in all five constructions; the 6x7 variant is a standard rope widely used for general purposes and is more flexible than 1x19 but still strong.

Materials and Structure

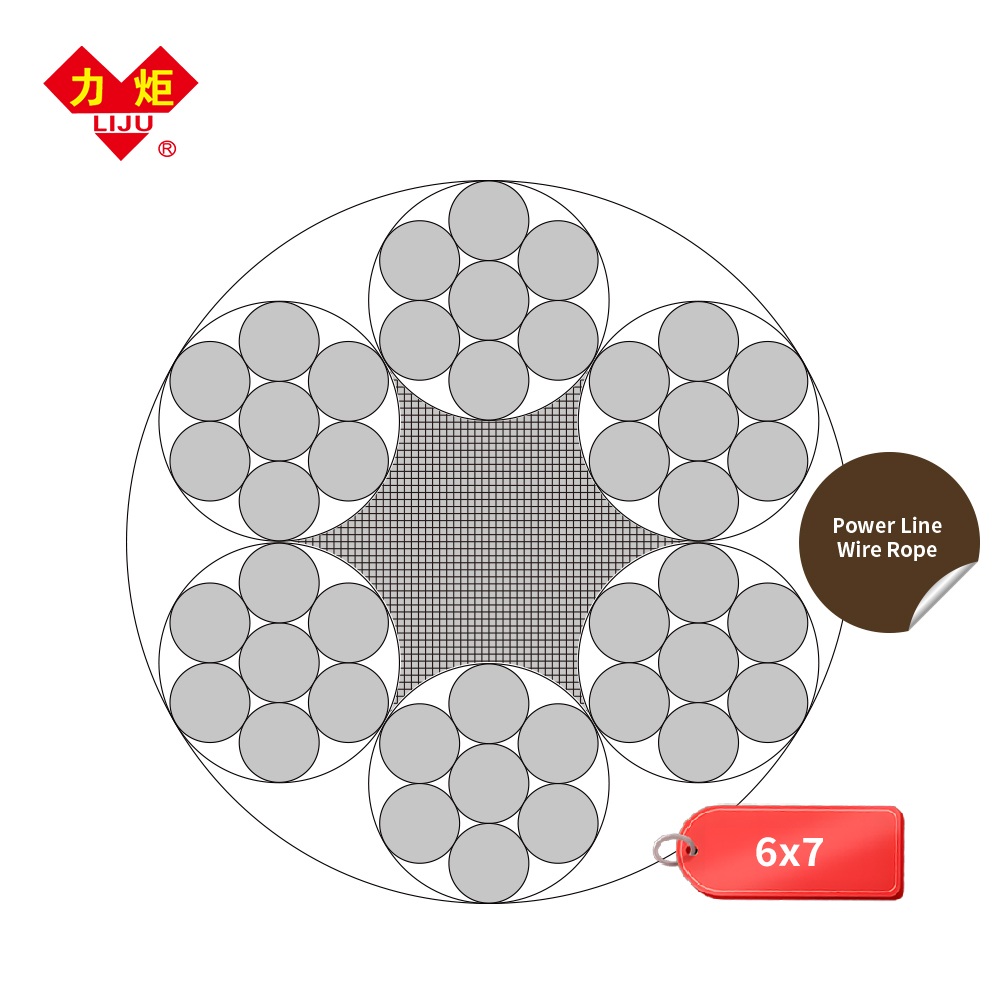

Composed of six strands, each with seven wires, laid around a fiber or independent wire rope core. The design provides a good balance of flexibility and resistance to abrasion.

Applications

Used for substation construction, guy wires, and general rigging. Suitable for outdoor use with galvanized finish, resisting corrosion from environmental exposure.

Customization

Custom diameters, lengths, and galvanized finishes. Also can be supplied with various end fittings per request.

FAQ

What is the maximum diameter available?

Up to 120mm.

Can I get this rope in a plastic-coated version?

Yes, plastic-coated options are available upon request.

Does it meet EN 12385?

Yes, it complies with EN 12385.

What certifications do you have?

We hold API, CE, GOST, SIRIM, SNI, CCS, ABS, and EPD certifications.

Can it be used for marine applications?

With appropriate galvanization, it is suitable for marine environments.

What is the minimum order quantity?

Please contact us for MOQ information.

Do you provide samples?

Yes, samples are available.

How is the rope packaged?

Standard wooden reels or coils, or customized packaging.
