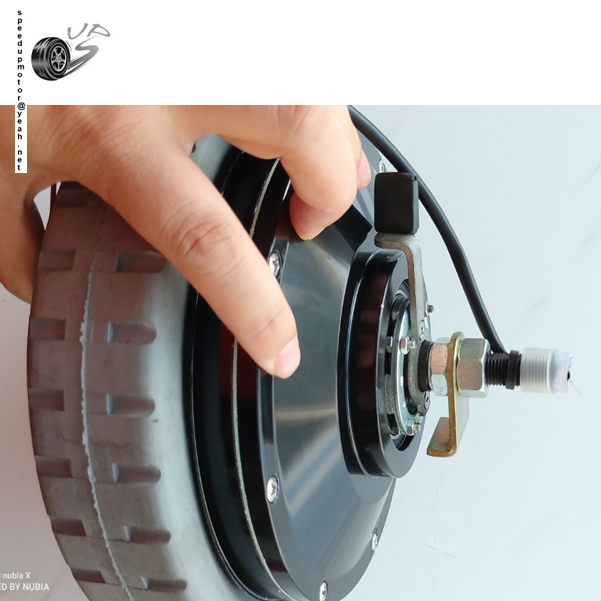

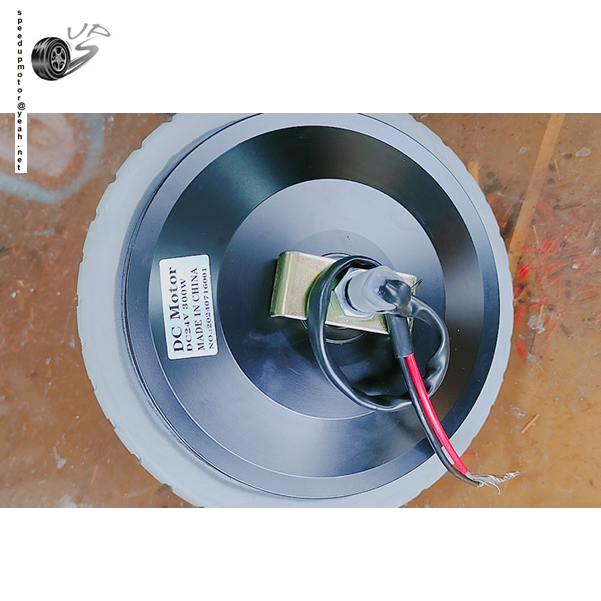

Power your electric shopping carts with this 8-inch brush DC wheel hub motor featuring low-speed high-torque output and safe electromagnetic braking. Trusted by cart factories with 10+ years of stable operation.
| Model | 1DY-E5A |
|---|---|
| Rated Voltage | 24V |
| Rated Power | 300W |
| Rated Speed | 100RPM |
| Rated Torque | 30Nm |
| Wheel Diameter | 210mm (8 inch) |
| Reduction Ratio | 1:20 |
| Brake | Electromagnetic |
| Net Weight | 5.5kg |
| Loading Capacity | 80-300kg |
| Configurations | 24V, 36V, 48V; single/double shaft |
Standard model 1DY-E5A. Voltage options: 24V, 36V, 48V. Single or double shaft. Custom axis length available.
Aluminum alloy housing, copper windings, permanent magnets, rubber tire for durability.
Specifically for electric shopping carts, transport carts, and other light mobility equipment requiring reliable wheel drive.
Custom shaft, voltage/power variations, and braking configurations. Contact us for OEM/ODM options.
An electric cart factory in NL/DE/GB/ES/US has used this motor for 10 years, with 30,000 units delivered and stable operation.
MOQ is 2 pieces.
Yes, we offer 24V, 36V, and 48V versions.
Payment is 100% in advance.
Yes, it includes an electromagnetic brake with manual clutch option.
It is designed for low-to-medium speed indoor/outdoor use, with condensation protection.
Yes, shaft length is customizable.
The motor supports 80-300kg load.
