90Ton Double Chambers Clothes Baler NK-T90L Carbon Steel

Quantity:
SKU: 8036269023
Model: NK-T90L

{{ variable.name }}

{{ value.name }}
NKBALER
Enter Shop
Product Details

90Ton Double Chambers Clothes Baler NK-T90L

Carbon Steel Hydraulic Baler for Garment and Sack Compaction

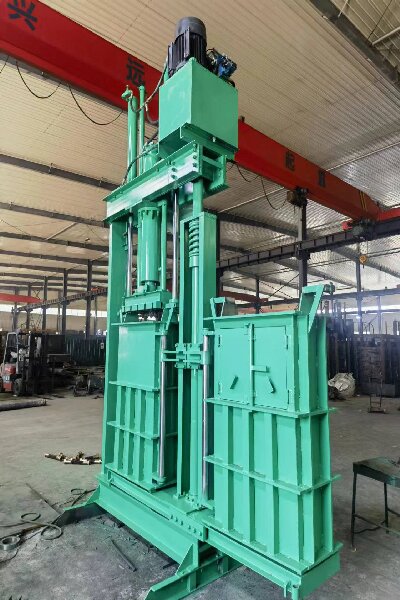

NK-T90L Double chambers clothes baler - front view NK-T90L Double chambers clothes baler - side view NK-T90L Double chambers clothes baler - loading detail

The NK-T90L Double Chambers Clothes Baler is a vertical hydraulic baler designed for efficient compaction of garment and sack materials. With a powerful 90-ton hydraulic force, it achieves bale weights of 75-150kg and delivers a high output of 10-12 bales per hour. Constructed from heavy-duty carbon steel, this baler ensures durability and long service life in demanding industrial environments.

90-Ton Hydraulic Force

High compression force ensures dense bales, reducing storage and transport costs.

Double Chambers Design

Two chambers enable parallel loading and pressing, increasing operational efficiency.

Carbon Steel Construction

Robust frame withstands continuous 24/7 operation, minimizing downtime.

Adjustable Bale Size

Bale height adjustable from 500 to 1000mm, flexible for various packaging requirements.

CE Certified

Machinery directive compliance ensures safety and reliability for EU markets.

Wide Application

Suitable for food, pharmaceutical, packaging, chemical, electronics, and waste recycling industries.

Technical Specifications
ModelNK-T90L
Hydraulic Power90 Ton
Bale Size (L*W*H) mm760*520*500-1000 mm
Feed Opening Size (L*H) mm750*550 mm
Packing MaterialsGarment, Sack
Output Capacity10-12 bales/H
Bale Weight75-150 kg
Voltage380V/50Hz
Packing WayHorizontal 5*2 Vertical
Power (KW)18.5 KW / 25 HP
Feeding WayManual
Machine Size (L*W*H) mm3800*1500*4600 mm
Machine Weight (T)4.8 T

Models and Options

The NK-T90L is part of the double chambers clothes baler series. Options include different bale sizes and power configurations to meet specific needs. Currently, only the NK-T90L model is listed; contact us for other model availability.

Materials and Structure

The baler frame is fabricated from carbon steel to provide structural integrity and resistance to wear. The double-chamber design includes a pair of hydraulic cylinders that operate alternately to achieve continuous compaction. The manual feeding system simplifies operation and reduces initial investment.

Applications

  • Food industry waste compacting
  • Pharmaceutical packaging waste
  • Packaging materials (cardboard, plastic)
  • Chemical fiber and textiles
  • Electronics waste (non-hazardous)
  • Metal scrap (small parts)
  • Waste treatment and recycling facilities

Customization

Custom bale size adjustments, voltage adaptations (e.g., 220V), and color options are available on request. Our R&D team can tailor the baler to specific materials or production requirements.

Frequently Asked Questions

What is the MOQ for this baler?

MOQ is 2 units.

What are the payment terms?

Payment is 30% deposit before production, 70% before shipment.

Can the machine be tested before shipping?

Yes, we offer pre-shipment testing.

What bale sizes can be produced?

Bale size is 760x520mm with height adjustable from 500 to 1000mm, producing bales weighing 75-150kg.

What materials can this baler handle?

It is designed for garment and sack materials.

What is the delivery method?

FOB or CIF terms are available.

Is the machine compliant with EU safety standards?

Yes, it has Verifications of Conformity to EN ISO 12100:2010, EN 60204-1:2018 and EN 415-1:2014 for EU/EEA.

Does the machine have low noise operation?

Yes, it is designed for low noise and low energy consumption.
