A2 Fireproof 0.7mm PVDF Coated Galvanized Steel Coil for Refinery Pipe Cladding
url-slug: a2-fireproof-0.7mm-pvdf-coated-galvanized-steel-coil-refinery-pipe
Product Summary
This 0.7mm PVDF coated galvanized steel coil (Z180) is designed for refinery pipe cladding and thermal insulation systems. Certified to EN 13501-1 A2-s1,d0,t1, it combines fire safety with excellent corrosion protection in aggressive petrochemical environments.
Key Features
- Z180 galvanized coating ensures robust corrosion resistance for long-term outdoor service.
- 0.7mm thickness provides enhanced mechanical strength for demanding cladding applications.
- A2 fire rating (EN 13501-1 A2-s1,d0,t1) meets strict industrial safety requirements.
- PVDF finish (20-35μm top / 5-15μm backer) offers superior weatherability and chemical resistance.
- Small-diameter coil option (Inner Diameter: 200mm) improves pipe insulation installation efficiency.
Technical Specifications
| Parameter | Value |
|---|
| Base Metal | Galvanized Steel (Z180) |
| Coating System | Premium PVDF (20-35μm top / 5-15μm backer) |
| Thickness | 0.70mm |
| Width | 1000mm |
| Fire Rating | EN 13501-1 (A2-s1,d0,t1), ASTM E84 Class A |
| Certifications | BV ISO 9001:2015, RoHS 2.0 & REACH |
Models and Options
Model: PVDF-REF-A2-GALV-0.7. Available with custom slitting and small-diameter coil (200mm ID) for refinery pipe insulation.
Materials and Structure
Base material is galvanized steel with Z180 coating weight. The PVDF topcoat and backer provide comprehensive protection against corrosion and weathering.
Applications
Suitable for oil & gas refineries, petrochemical plants, offshore platforms, LNG facilities, and industrial thermal insulation cladding systems.
Customization
Custom widths and coil inner diameters possible. MOQ: 2000 kgs. Export terms: FOB, CIF, CFR, DDP, DDU, EXW. Payment: 30% advance T/T, 70% after shipment.
FAQ
What is the MOQ?
2000 kgs or as per specifications.
Is this product fire rated?
Yes, it meets EN 13501-1 A2-s1,d0,t1 and ASTM E84 Class A.
Can you supply small-diameter coils?
Yes, we offer 200mm Inner Diameter coils for pipe insulation.
What galvanizing weight is used?
Z180 galvanized coating.
What is the coating thickness?
PVDF topcoat 20-35μm, backer 5-15μm.
What delivery terms do you support?
FOB, CIF, CFR, DDP, DDU, EXW.
Do you have RoHS/REACH compliance?
Yes, SGS certified for RoHS 2.0 and REACH.
Inquiry Information
Contact Mr. Qing at info@youngsonmetal.com or +86-23-62566629 / WhatsApp +86-13594107385.

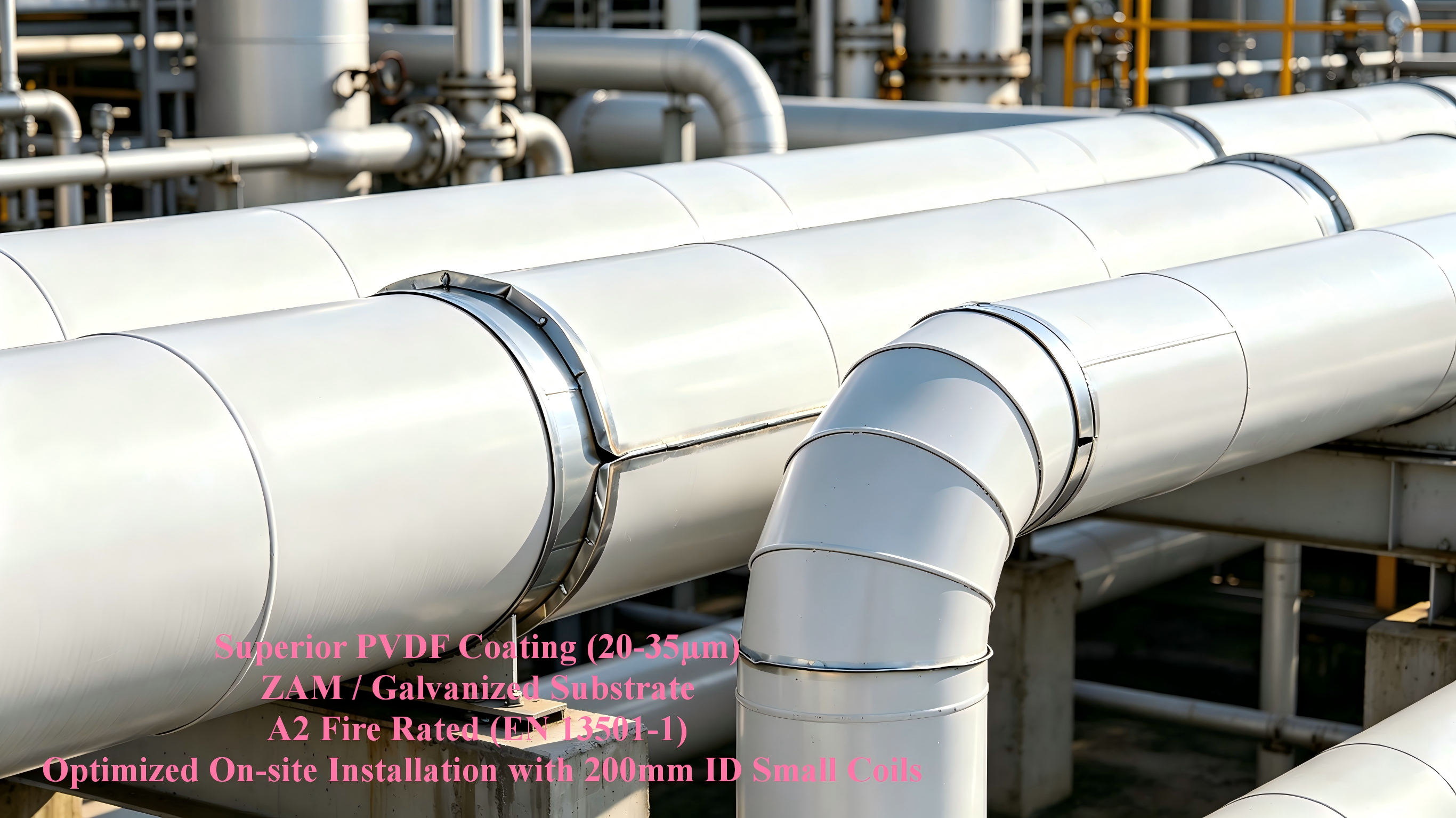

Images: [Refinery Pipe Insulation] [PVDF Coated Metal Jacketing for Refinery]
