The SRK-100 ATEX thermal mass flow meter is specifically designed for use in Zone 2 hazardous areas. It carries ATEX certification (cert #ICR/VC/HM251296 and ECM 22 ATEX-B 0S05) ensuring safe operation in explosive gas environments. Ideal for natural gas, LPG, and biogas measurement in oil & gas and chemical industries.
| Parameter | Value |
|---|---|
| Flow Sensor Size | DN15 ~ DN2000 (depends on type) |
| Installation Type | Insertion or Inline (ATEX rated) |
| Gas Temperature Range | -20 ~ 300 ℃ |
| Output | 4~20mA |
| Communication | RS485, MODBUS RTU, HART |
| Certifications | CE, ATEX Zone 2, ISO9001 |
| Material | Stainless Steel 304 |
SRK-100 ATEX variant available in both insertion and inline configurations. Remote display option for safe area installation.
Stainless steel 304 sensor and body. Flameproof enclosure for electronics meeting ATEX standards. PTFE coating available for corrosive gases.
Custom sensor ranges, ATEX enclosure options, and special process connections available. Contact our engineering team for hazardous area requirements.

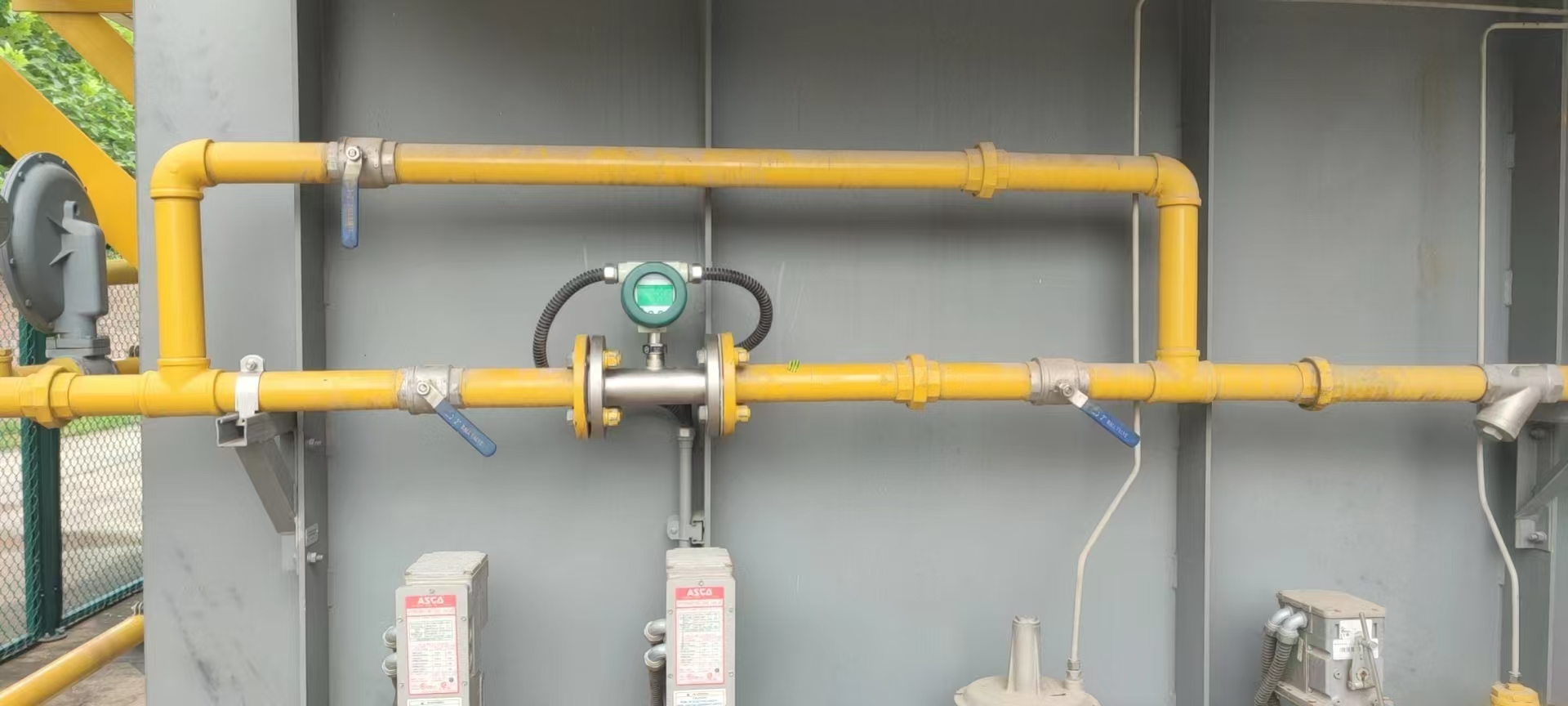

Client: Gas utility | Quantity: 20 units | Application: Measure natural gas flow.
Result: Stable mass flow measurement over more than 10 years. Much lower price compared to top brands, fast delivery within 5-7 working days.
It is certified for Zone 2 gas groups according to IEC 60079 standards. Certificates available upon request.
Hydrogen measurement requires special consideration due to its low molecular weight. Please contact our technical team for feasibility.
The ATEX version includes explosion-proof housing and certified electronics for safe operation in flammable gas environments.
Current certificates expire in 2027 and 2030. Renewal is managed by the certifying body.
Yes, pre-shipment calibration test and optional factory acceptance test are available.
Standard warranty is 12 months from shipment. Extended warranty available on request.
For ATEX grade details and pricing, contact:
Lily – Sales Manager
Phone: +86 25-52155837
WhatsApp: +86 18936759191
Email: sales@silverinstruments.com
Main Image: atex-thermal-mass-flow-meter-srk-100-hazardous.jpg – Alt: ATEX certified thermal mass flow meter SRK-100 for hazardous area
Detail Image: atex-thermal-mass-flow-meter-srk-100-certificate.jpg – Alt: ATEX certificate label on SRK-100 mass flow meter
