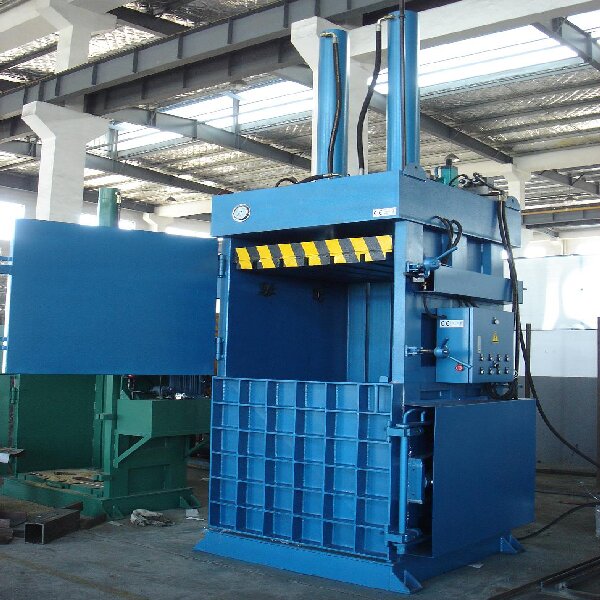

Adjustable Bale Size Vertical Tire Baler NKOT150 for Recycling Industry
Optimize your recycling operations with the NKOT150 Vertical Tire Baler, offering adjustable bale sizes from 700 to 1250mm in height. The 150-ton hydraulic power ensures dense bales, reducing handling costs. Its flexible bale dimensions make it perfect for various downstream processing needs.
Key Selling Points
- Adjustable Bale Height: Height adjustable from 700 to 1250mm, allowing customization for transport or storage.
- High Tonnage: 150-ton force produces dense bales up to 1500kg.
- Quick Cycle: 4-5 bales per hour increases productivity.
- Robust Construction: Carbon steel frame withstands harsh conditions.
- Compliance: CE certified for EU markets.
- Versatile Use: Suitable for various materials and industries.
Technical Specifications
| Parameter | Value |
|---|
| Model | NKOT150 |
| Hydraulic Power | 150 Ton |
| Bale Size (L*W*H) MM | 1800*1000*700-1250 |
| Feed Opening Size (L*H) | 1800*750 mm |
| Chamber Size (L*W*H) | 1800*1000*2100 mm |
| Capability | 4-5 bales/hour |
| Bale Weight (KG) | 1000-1500 kg |
| Voltage | 380V/50HZ |
| Power (KW) | 22KW/30HP |
| Machine Weight (T) | 7 Ton |
Models and Options

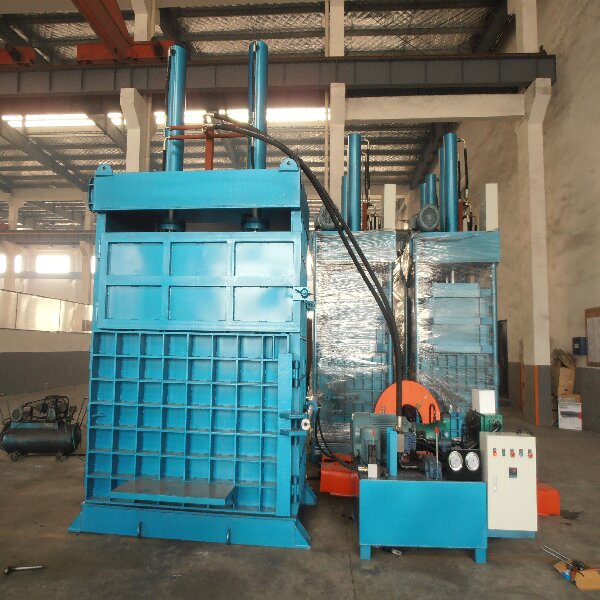

This model comes with standard electricals. We also offer customized PLC controls and tie configurations.
Materials and Structure
Fabricated from welded steel plates, providing a rigid frame that maintains alignment under heavy loads.
Applications
Ideal for recycling centers, scrap yards, and manufacturing facilities dealing with tires, rubber, plastic, and non-ferrous metals.
Case Study
In a high-temperature material compression project, our baling equipment operated continuously with PLC control, achieving low noise and energy consumption as required.
FAQ
What bale size can I get?
The bale size is adjustable, with height ranging from 700mm to 1250mm, width fixed at 1000mm, and length 1800mm.
Does the machine have CE approval?
Yes, it has a Verification of Conformity and a Machinery Directive Attestation.
What is the recommended maintenance?
Regular hydraulic oil level checks and lubrication of moving parts are recommended.
Can I integrate it with a conveyor?
Yes, it can be integrated with conveyor lines, wire ropes, and woven bags for packaging.
What is the delivery term?
We offer FOB and CIF delivery terms.
How many people are needed to operate it?
Typically one operator is sufficient for loading and operation.
Does it require special foundation?
No, it can be installed on a level concrete floor without special foundations.
