Product Summary: The EDUN 150 Series Lift Sliding Door is a premium aluminum alloy system designed for large-scale openings. It combines a slim 2.0mm profile with robust performance, offering 37dB sound insulation, 3600Pa wind load resistance, and excellent thermal efficiency (Uw=1.7W/㎡·K). Tailored for the North American market, it meets CSA standards and is perfect for high-end villas, commercial plazas, and villa courtyards.
Key Features
2.0mm Profile Thickness: Provides enhanced structural strength for large door panels while maintaining a sleek appearance.
High Sound Insulation (37dB): Creates a quiet indoor environment, especially beneficial in urban or noisy settings.
Wind Load Resistance (3600Pa): Withstands strong winds, ensuring stability and safety in high-rise or coastal areas.
Thermal Break Strip & Insulating Glass: Achieves Uw=1.7W/㎡·K, improving energy efficiency and reducing heating/cooling costs.
Heavy-duty Sliding Hardware: Ensures smooth, durable operation even with large and heavy door panels.
CSA Certified: Meets North American standards, facilitating project approvals in Canada and the USA.
Technical Specifications
Parameter
Value
Profile Thickness
2.0mm
Glass Specification
10+16A+10mm (Optional)
Wind Load Resistance
3600Pa
Sound Insulation
37dB
Water Tightness
720Pa
Thermal Transmittance (Uw)
1.7W/㎡·K
Models and Options
The EDUN 150 series is available in various configurations to suit different project requirements. Options include alternative glass specifications (e.g., low-E coatings, laminated glass) and custom dimensions. Please contact our sales team to discuss your specific needs.
Materials and Structure
Constructed from Xingfa aluminum alloy, known for its corrosion resistance and strength. The door features insulating glazing for thermal performance, heavy-duty sliding hardware for reliability, thermal break strips to minimize heat transfer, and EPDM sealing strips for excellent airtightness and weatherproofing.
Applications
Ideal for North American high-end villas, commercial plazas, and villa courtyards. The lift sliding mechanism allows for large openings, seamlessly connecting indoor and outdoor spaces while providing superior protection against the elements.
Customization
We offer full customization services including size, glass type, hardware finish, and color options to match your architectural design and performance requirements. Our engineering team works closely with you to ensure a perfect fit.
FAQ
Q: What is the maximum size for the EDUN 150 lift sliding door?
A: While standard sizes are available, we can custom manufacture doors up to large dimensions. Please provide your specific opening size for a detailed proposal.
Q: Is the EDUN 150 door suitable for coastal environments?
A: Yes, the aluminum alloy profile is corrosion-resistant and the door is designed to withstand high wind loads, making it suitable for coastal and high-wind areas.
Q: Can I choose different glass options?
A: Yes, the standard glass is 10+16A+10mm, but we offer alternatives such as low-E glass, tempered glass, and laminated glass to meet your specific insulation, safety, and acoustical requirements.
Q: Does the door come CSA certified?
A: Yes, the EDUN 150 series has obtained CSA Certificate of Compliance (cert. no. 80232082) for the North American market.
Q: What hardware options are available?
A: We offer a range of heavy-duty sliding hardware finishes to complement your design, including various handle styles and locking systems. Consult with our sales team for the available options.
Q: How is the lead time and shipping?
A: Lead times vary depending on order volume and customization. Generally, we deliver within a reliable timeframe, and we support international shipping with proper export packaging.
Inquiry Information
Contact our sales team for pricing, lead times, and further information:
Email: info@edunwindows.com
Tel/WhatsApp: +86 18988630128
Address: No. 138 Yongli Street, Gaoyao District, Zhaoqing City, Guangdong Province, China

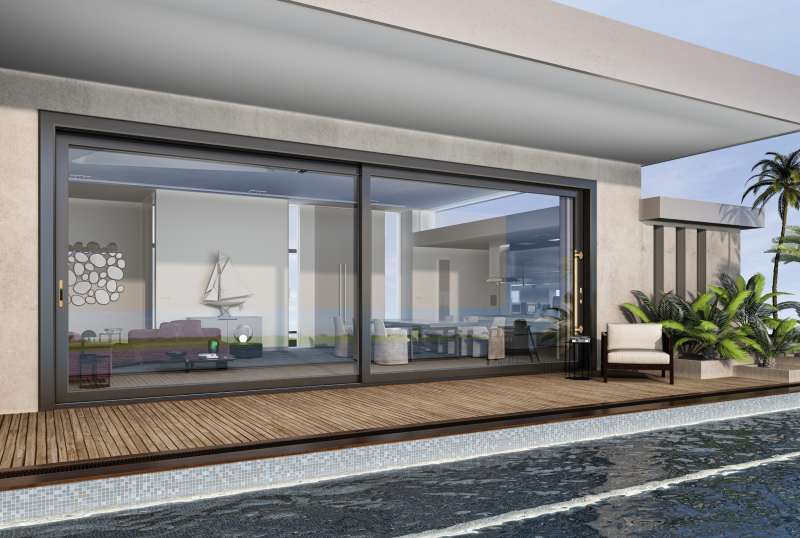

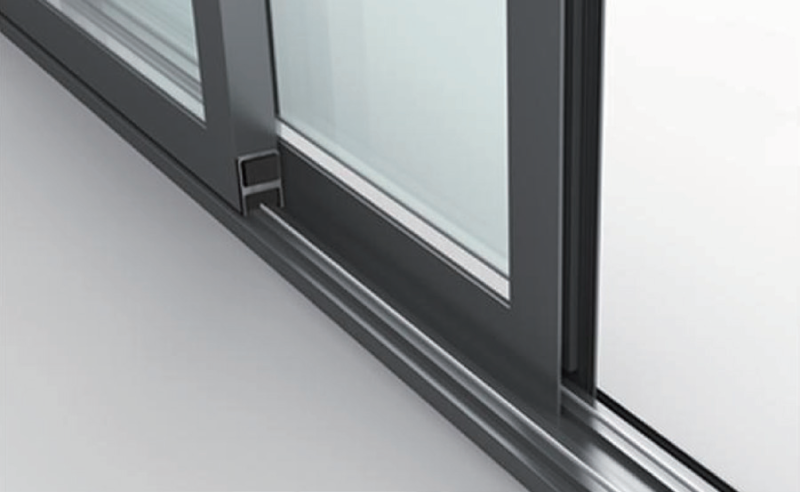

EDUN 150 Lift Sliding Door OverviewClose-up of Sliding MechanismInstallation Example
