This antibacterial epoxy powder coating is designed for applications requiring high hygiene standards, such as home appliances, air conditioners, hospitals, and kitchens. It has passed SGS testing according to ISO 22196:2011, providing effective inhibition of bacterial growth while maintaining excellent corrosion and weather resistance.
Key Selling Points
ISO 22196 antibacterial performance: SGS-tested, effectively inhibits bacterial growth on coated surfaces, promoting hygiene in hospitals, kitchens, and appliances.
500-hour salt spray resistance: Long-lasting protection against corrosion, suitable for humid environments.
Weather-resistant: Outdoor service life over 10 years, no fading or chalking, ideal for outdoor AC units.
Safe and non-toxic: Coating material is non-toxic and harmless, ensuring consumer health safety.
Excellent mechanical properties: Impact resistance 50 kg/cm, bending ≤2mm, ensuring durability in transportation and daily use.
Custom colors: Available in RAL/Pantone colors with gloss options to match design needs.
Technical Specifications
Parameter
Value
Type
Pure Epoxy Powder Coating (Antibacterial)
Antibacterial Standard
ISO 22196:2011
Test Report
ASH25-0055689-02 (SGS)
Color
Customize RAL & Pantone color
Particle Size
Average 32-42μm
Specific Gravity
1.2-1.7 g/cm³
Coverage
8-10 m²/kg at 30-90 μm film thickness
Film Thickness
70 μm
Curing Temperature
180-200℃, 10-15 min
Gloss (ISO 2813)
5%~95%
Impact (ISO 6272)
50 kg/cm
Bending (ISO 1519)
≤2mm
Cupping (ISO 1520)
≥6mm
Adhesion (ISO 2409)
0 Grade
Hardness (ISO 15184)
≥H
Salt Spray Resistance (ISO 7253)
After 500 hours, film unchanged, cross-section corrosion ≤2mm
Humidity & Heat Resistance (GB/T1740-2007)
1000 hours, gloss loss slight, ≤ level 1
Models and Options
Available in custom RAL/Pantone colors, with gloss levels from 5% to 95%. Both indoor and outdoor grades available.
Materials and Structure
Epoxy resin, TGIC curing agent, antibacterial agents, pigments, and additives. The formulation includes antibacterial components that are effective against a broad spectrum of bacteria.
Applications
Ideal for home appliances (air conditioners, refrigerators, washing machines), hospitals, kitchens, and any surface requiring hygienic protection.
Customization
Custom colors, gloss, and film thickness. MOQ: 1 kg for samples, 100 kg for bulk. Provide SGS test report for antibacterial performance.
FAQ
What is the antibacterial performance?
It meets ISO 22196:2011 and has passed SGS testing.
Is it safe for use in hospitals?
Yes, the coating is non-toxic and inhibits bacterial growth, making it suitable for hospitals and kitchens.
Does it withstand outdoor weather conditions?
Yes, it has excellent weather resistance with an outdoor service life of over 10 years, no fading or chalking.
Can you provide the SGS test report?
Yes, we can share the test report (Cert No: ASH25-0055689-02).
What is the curing condition?
180-200°C for 10-15 minutes.
Is it resistant to salt spray?
Yes, it passes 500 hours salt spray testing.
What colors are available?
All RAL and Pantone colors can be customized.
What is the MOQ?
Sample order 1 kg; bulk order 100 kg.
Inquiry Information
Contact Jenny Qin
Tel: +86 188 8641 2845
Email: innocoat.jenny@hsindapowdercoating.com
Add: No.38 Huagang Road, South Area of Chengdu Modern Industrial Port, Pixian, Chengdu, Sichuan, China
MOQ: 100 kg (bulk), 1 kg sample
Payment: 50% T/T in advance, 50% before shipment
Delivery: EX-W, FOB, CIF, CFR, CPT, DAP, DDP
Image Suggestions

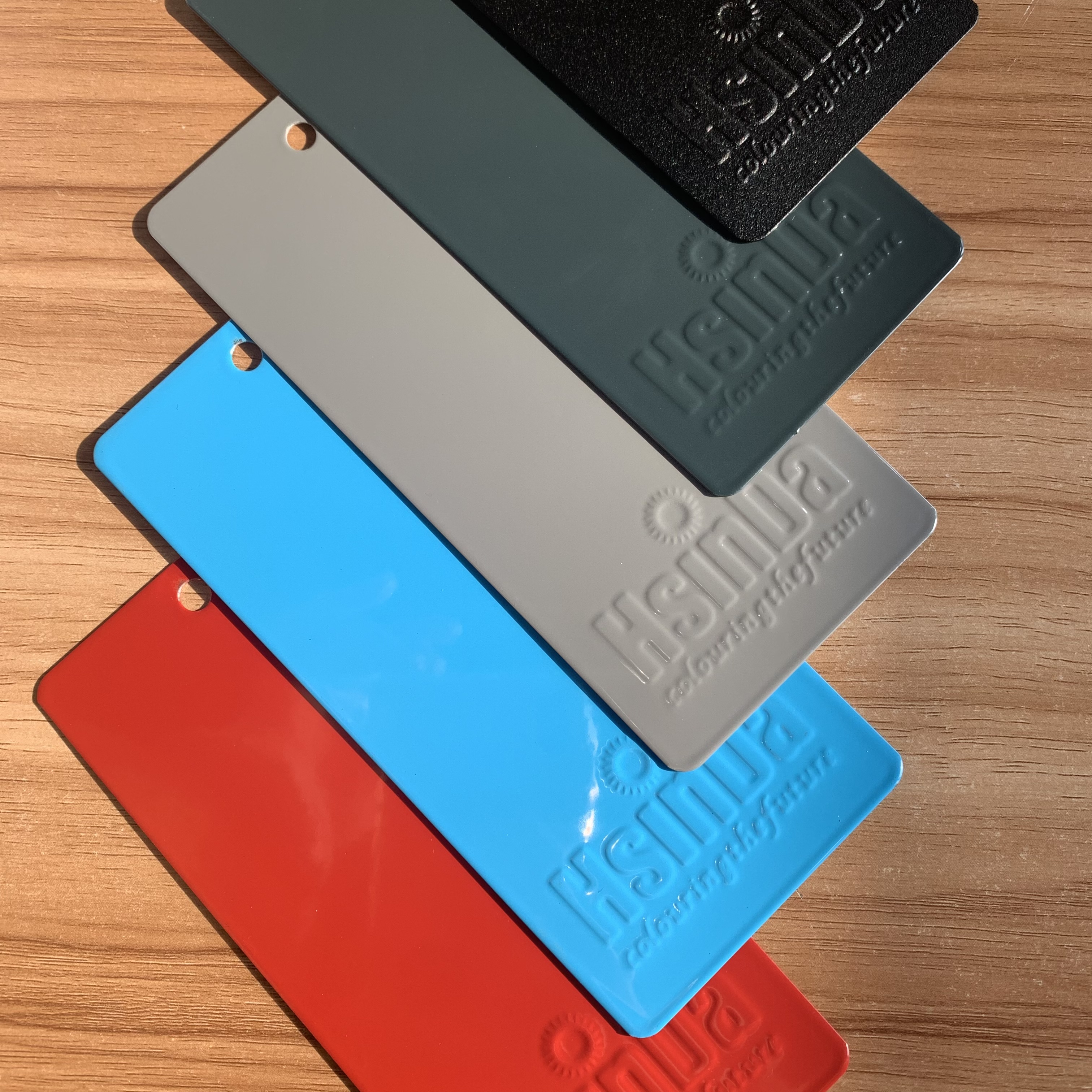

Main image: IMG_1115.HEIC.JPG - alt: "Antibacterial epoxy powder coating color samples"
