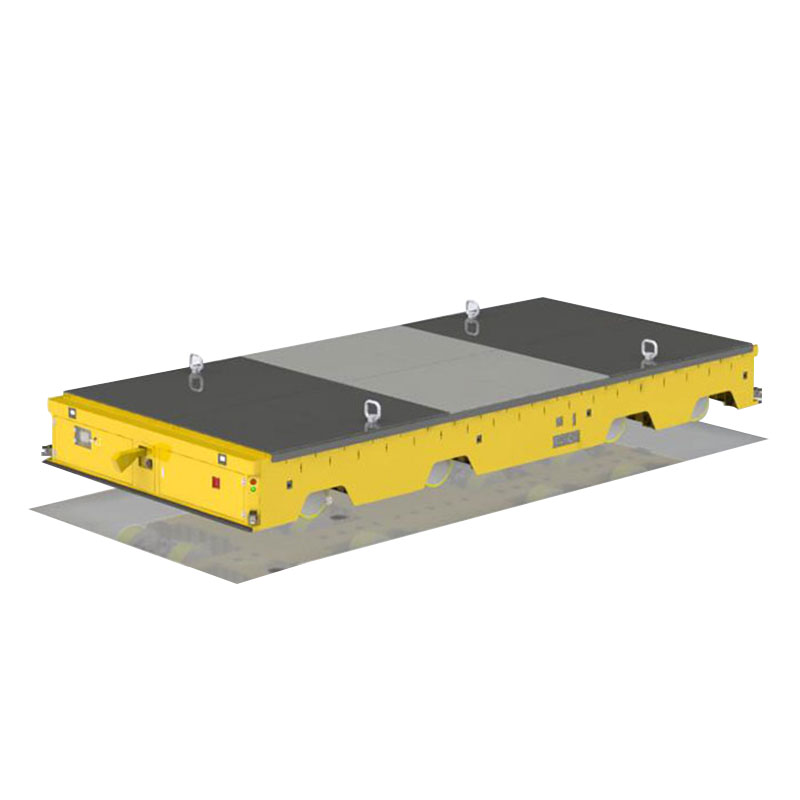

| Type | Backpack heavy-duty AGV | Model | 150 ton Heavy duty AGV |
| Params | model:LY-1-150T-816-A Rated load (kg) :150000 Equipment weight (kg) :35000 Body shape (mm) :7710 mm *2888 mm *722mm (subject to countersigned drawings) Lifting stroke (mm): 200mm _ Climbing ability(°) ≤5° working environment: Indoor and outdoor work Body structure :differential drive Number of driving wheels (pair) :Eight-wheel drive and sixteen wheels Operation mode:The whole vehicle can realize forward and backward straight travel, left and right straight travel, in-situ rotation and turning movement in the plane under no-load and full-load conditions. | Material | Product pages specify Q235B steel for the body frame, with Q355B available for special applications; exact materials must be confirmed by model and technical agreement |
| Applicable Industry | Aerospace, military industry, high-speed rail, wind power, shipbuilding, heavy trucks, energy storage, engineering machinery, foundries, ports, and warehouse logistics | ||
Intelligent Navigation & Maximum Safety Moving hundreds of tons requires flawless precision. Our backpack heavy-duty AGVs utilize advanced Laser SLAM and natural feature navigation for millimeter-level indoor positioning without the need for magnetic tracks. Equipped with hydraulic independent suspension and automatic leveling, they maintain perfect stability under massive loads, even on uneven factory floors. Built-in LiDAR obstacle detection ensures 360-degree safety for both the cargo and your personnel.
