Automated guided vehicle

Name: "Automated guided vehicle"
Rating: 5 (506 reviews)

SKU: 4987603152

Model: 6054343416

YT-LONYU-AGV

Enter Shop

Product Details

Product Specification

Type	backpack heavy duty AGV	Model	200ton Heavy duty AGV backpack transmission box
Params	model：LY-1-200T -816-A Rated load (kg) ：200000 Equipment weight (kg) ：35000 Body shape (mm) ：8100 mm 3500 mm H870mm (subject to countersigned drawings) Lifting stroke (mm) ：200mm _ Climbing ability(°) ≤5° working environment： Indoor and outdoor work Body structure：differential drive Number of driving wheels (pair)： Eight-wheel drive and sixteen wheels Operation mode：The whole vehicle can realize forward and backward straight travel, left and right straight travel, in-situ rotation and turning movement in the plane under no-load and full-load conditions. Tag: 50 to 600-Ton Ultra Heavy-Duty AGVs Categories: Automated guided vehicle, backpack heavy duty AGV Body shape (mm) ：7710 mm 2888 mm 722mm (subject to countersigned drawings) Lifting stroke (mm)： 200mm _ Climbing ability(°) ≤5° working environment： Indoor and outdoor work Body structure ：differential drive Number of driving wheels (pair) ：Eight-wheel drive and sixteen wheels Operation mode：The whole vehicle can realize forward and backward straight travel, left and right straight travel, in-situ rotation and turning movement in the plane under no-load and full-load conditions. Tag: 50 to 600-Ton Ultra Heavy-Duty AGVs Categories: Automated guided vehicle, backpack heavy duty AGV	Material	The main frame adopts Q235B steel. Q355B steel is optional for special working conditions. Exact material selection shall be confirmed per model and technical agreement
Applicable Industry	Aerospace, military industry, high-speed rail, wind power, shipbuilding, heavy trucks, energy storage, engineering machinery, foundries, ports, and warehouse logistics

Feature

Intelligent Navigation & Maximum Safety Moving hundreds of tons requires flawless precision. Our backpack heavy-duty AGVs utilize advanced Laser SLAM and natural feature navigation for millimeter-level indoor positioning without the need for magnetic tracks. Equipped with hydraulic independent suspension and automatic leveling, they maintain perfect stability under massive loads, even on uneven factory floors. Built-in LiDAR obstacle detection ensures 360-degree safety for both the cargo and your personnel.

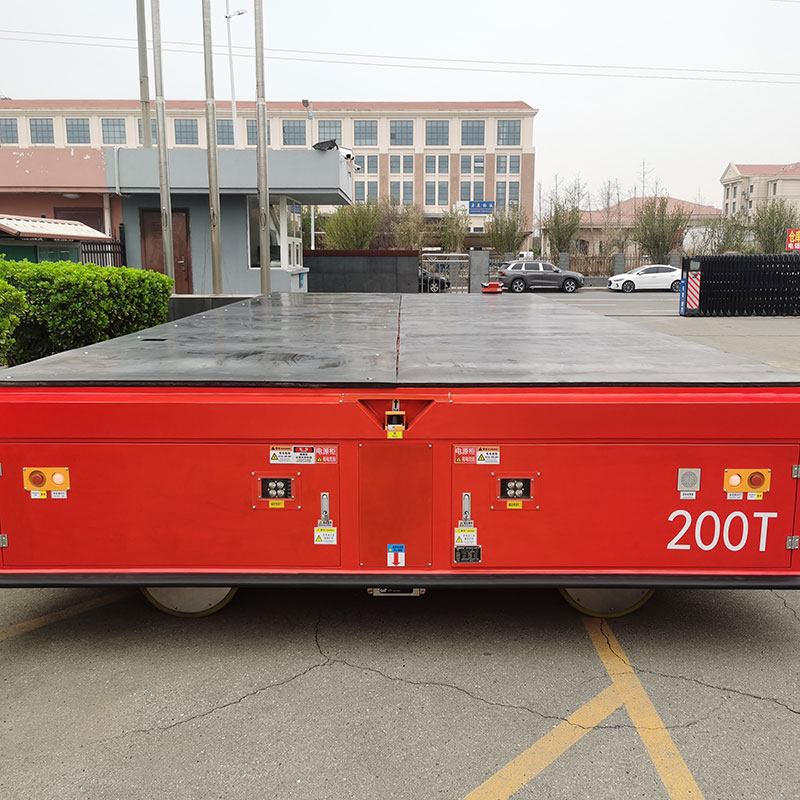

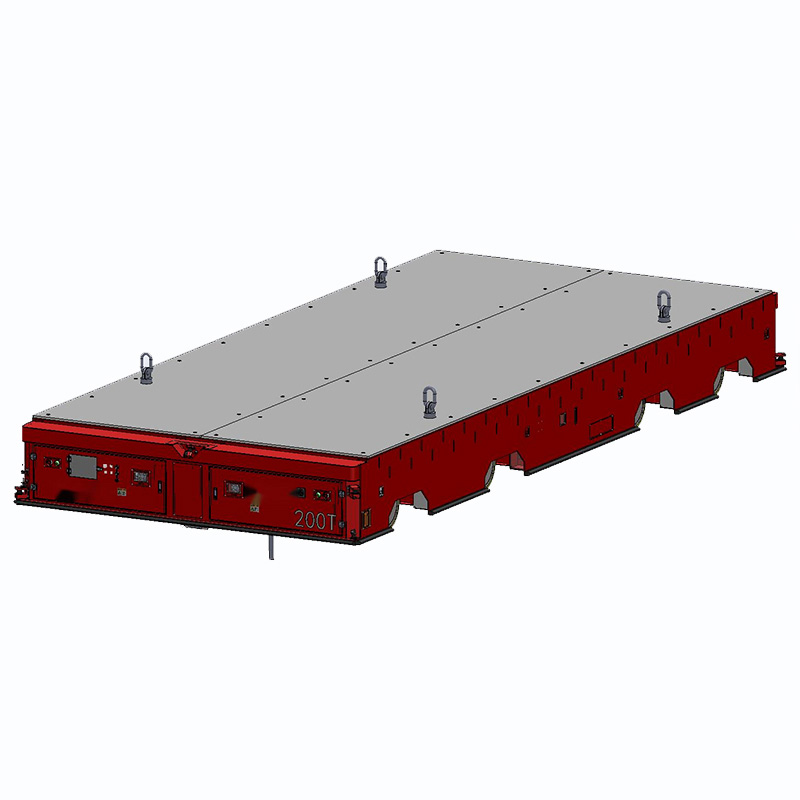

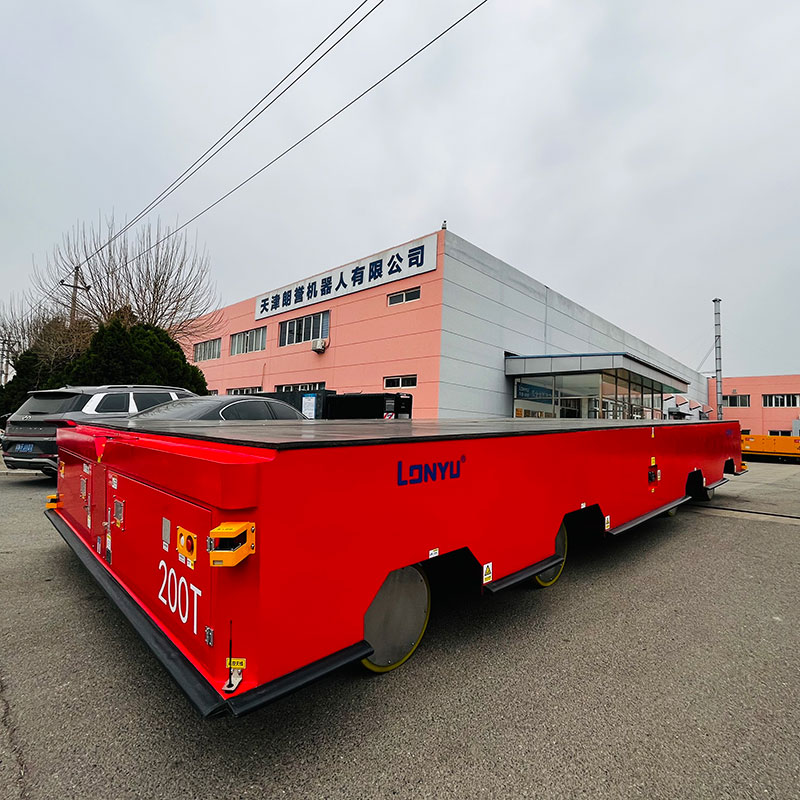

200ton-Heavy-duty-AGV-backpack-transmission-box
