Product Summary

The SNS505 basket type cast steel strainer is built for lines where a basket construction is preferred over a Y form. It removes solid particles from oil, gas, chemical, refining and utility pipelines, protecting pumps, meters, heat exchangers and control valves downstream. The stainless steel screen element is held inside the body and reached through the bolted-on cover, so routine maintenance does not require dismantling the pipeline.

Size, pressure class, end connection, body material and screen mesh or perforation are all selected against the service conditions of the system, from NPS 1/2" to 20".

Key Features

• Basket Strainer ConstructionOffered as an alternative body form to the Y type on the same SNS505 platform.
• Bolted-On CoverProvides easy access to the interior for routine maintenance of the screen element.
• Stainless Steel ScreenSupplied in a wide variety of meshes and perforations for different particle sizes.
• Wide Size CoverageNPS 1/2" to 20" (DN15 – DN500) for small utility and large main lines.
• Pressure Classes 150–600PN16 – PN40, with RF, FF, RTJ and BW end connections.
• Four Material FamiliesCarbon steel, stainless steel, alloy steel or duplex steel bodies.

Technical Specifications

Models and Options

This basket construction shares the SNS505 model number with the Y type version and is differentiated by the body form specified on the purchase order. Buyers select the size (NPS 1/2" – 20"), the pressure class (Class 150 – 600 or PN16 – PN40), the end connection (RF, FF, RTJ, BW) and the screen mesh or perforation. Material choice covers carbon steel, stainless steel, alloy steel and duplex steel.

Materials and Structure

The basket strainer body is available in carbon steel, stainless steel, alloy steel and duplex steel, with a standard paint coating on the outside. The filtration element is a stainless steel screen offered in a wide variety of meshes and perforations. The bolted-on cover gives direct interior access for routine maintenance, and the design prohibits galling or scoring of seating surfaces during repeated opening and closing.

Applications

SNS505 basket strainers suit upstream, midstream and downstream service where a basket body form is preferred, across Oil & Gas, Petrochemical, Power Generation, Chemical Processing, Refining and Industrial Pipeline Systems.

Customization

Configuration is built around the order: body material, screen mesh or perforation, size from NPS 1/2" to 20", pressure class from Class 150 to Class 600, and end type RF, FF, RTJ or BW. Manual, pneumatic and electric operation is available for the associated line equipment, supported by pneumatic or electric actuators.

Frequently Asked Questions

Image Filename and Alt Suggestions

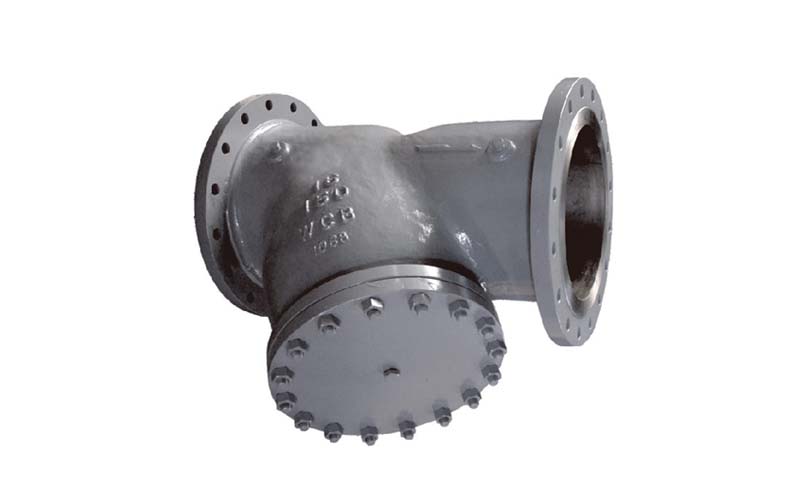

basket-cast-steel-strainer-sns505-front.png – Basket cast steel strainer SNS505 for large flow pipeline, front view.

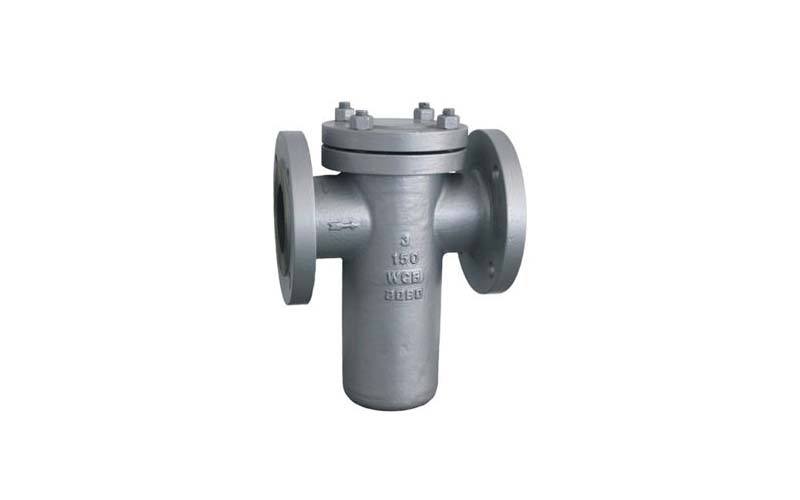

basket-cast-steel-strainer-sns505-cover.png – Basket type strainer SNS505 bolted cover fasteners and body coating.
