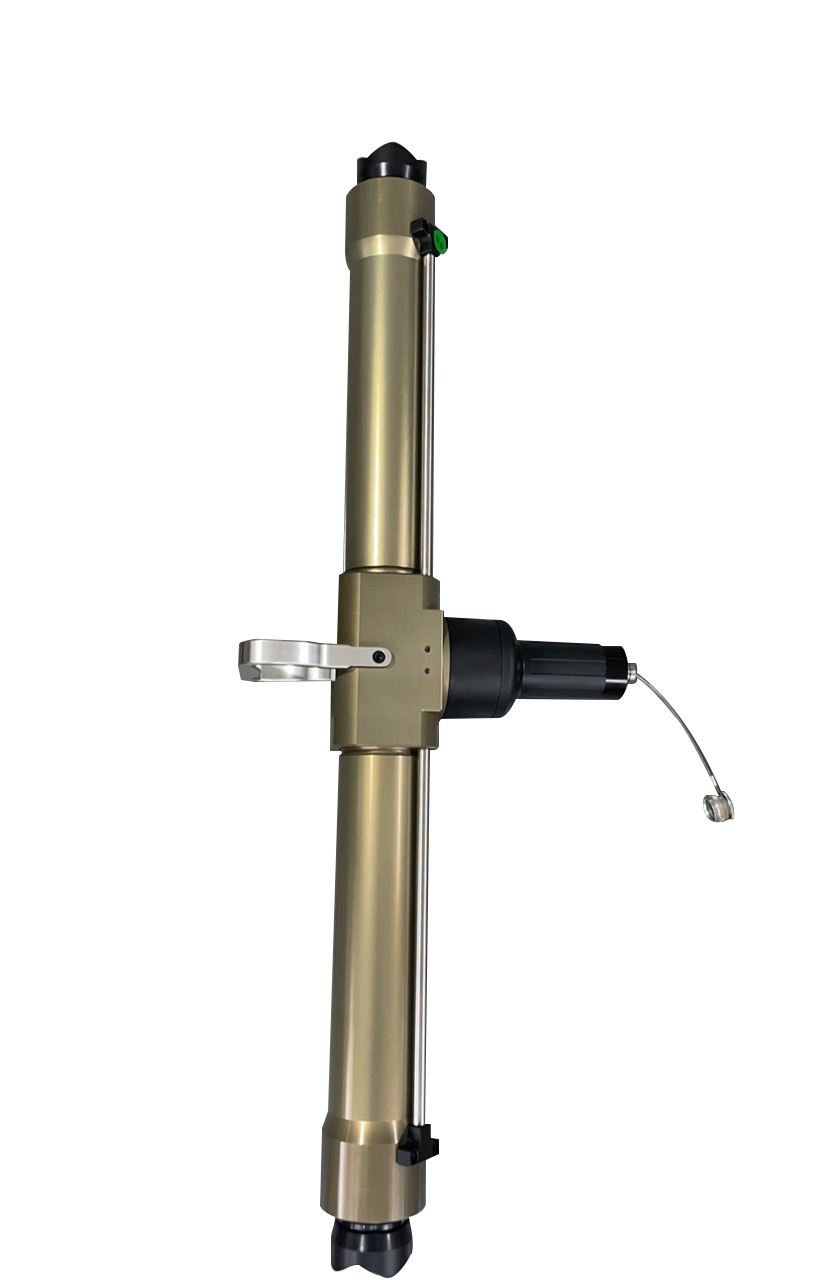

Bi-directional Ram

Quantity:
SKU: 3643274300
Model: TR940-L

{{ variable.name }}

{{ value.name }}

Product Specification

ModelTR940-LParamsNumber of plungers 2 Working pressure: 72Mpa No-load opening time: 60s±5s No-load closing time: 52s±5s Closing length: 938mm Lifting length: 1629mm Lifting stroke: 345.5mm*2 lifting force: 170kN Weight: 16.6kg Dimension:940x135x350mm
Applicable IndustryFire rescue

Feature

For propping up load-bearing objects and building components in on-site rescue. Flat-seal flat-axis single connector: permits connection/disconnection under pressure and easy cleaning. Comes with quickly replaceable anti-slip pushing head, rotatable 360° freely.
