Biocompatible Ultrasonic Flow Sensor for Medical Devices and Bioprocess- TGU Series

Name: "Biocompatible Ultrasonic Flow Sensor for Medical Devices and Bioprocess- TGU Series"
Rating: 5 (190 reviews)

Quantity:

SKU: 0759407541

Model: TGU Series

XY-TEK

Enter Shop

Product Details

Biocompatible Ultrasonic Flow Sensor for Medical Devices and Bioprocess

The TGU Series ultrasonic flow sensor from XY-TEK delivers exceptional accuracy and biocompatibility, designed for demanding applications in medical devices, bioprocessing, and pharmaceutical production. Its U-shaped measuring channel and compatibility with flexible plastic tubing ensure reliable flow measurement without cross-contamination.

Key Selling Points

High accuracy (±1%) and ultra-low flow measurement down to ±0.1 mL/min, enabling precise control in critical fluid delivery.
U-shaped measuring channel enhances signal stability and supports low-flow rates, optimizing performance in compact systems.
Biocompatible plastic construction ensures safety for medical and biological fluids, such as blood and pharmaceutical solutions.
Compatible with PVC, silicone, PFA, PE, and PUR tubing, offering flexibility in system integration.
No moving parts minimizes maintenance, and bidirectional measurement adds versatility.
Proven in electronics manufacturing for flux application, demonstrating reliability and precision.

Technical Specifications

Measurement Accuracy	±0.1 mL/min
Accuracy	±1%
Flow Range	0.1-1000 mL/min
Measurable Fluids	Water, blood, drinks, oil, paint, etc., without or not many solid particles
Applicable Pipe Materials	PVC, Silicone, PFA, PE, PUR, etc., flexible plastic tubing with smooth surfaces
Fluid Temperature	0°C to 60°C

Models and Options

Model: TGU Series

Customization available for OEM ultrasonic flow sensors. Contact XY-TEK for specific model options.

Materials and Structure

Biocompatible plastic
Ultrasonic sensor module
U-shaped measuring channel

Applications

Bioprocess
Medical Equipment
Pharmaceutical Production
Semiconductor
Industrial Automation (coating, dispensing, soldering flux)

Customization

XY-TEK provides OEM ultrasonic flow sensors and customized services. Contact global@xy-tek.cn for your specific requirements.

Case Study

In electronics manufacturing, TGU sensors are used in selective wave soldering equipment to measure and control flux flow in real time, ensuring consistent soldering quality and reducing waste. The ultra-low flow capability down to 1 mL/min and ±1% accuracy have improved production yield.

FAQ

Q: What is the minimum flow rate the TGU can measure?

A: The TGU can measure flow rates down to 0.1 mL/min, with an accuracy of ±0.1 mL/min.

Q: Which tubing materials are compatible?

A: The sensor is compatible with PVC, silicone, PFA, PE, PUR, and other flexible plastic tubing with smooth surfaces.

Q: Can the TGU be used for medical applications?

A: Yes, it uses biocompatible plastic and is suitable for medical devices and bioprocessing where sterility and safety are critical.

Q: What is the accuracy of the sensor?

A: The overall accuracy is ±1% of the measured value.

Q: Does the sensor have moving parts?

A: No, it has no moving parts, which makes it maintenance-free and reliable.

Q: What fluids can be measured?

A: It can measure water, blood, drinks, oil, paint, and similar fluids with minimal solid particles.

Inquiry Information

For more details, contact XY-TEK at global@xy-tek.cn

Tel: 86-21-33885752

Address: Building 7, No. 410 Jinggu Road, Minhang District, Shanghai 200245, China

MOQ: 1 units

Delivery: FOB, factory inspection and calibration before shipping

Images

TGU Series Ultrasonic Flow Sensor Front View

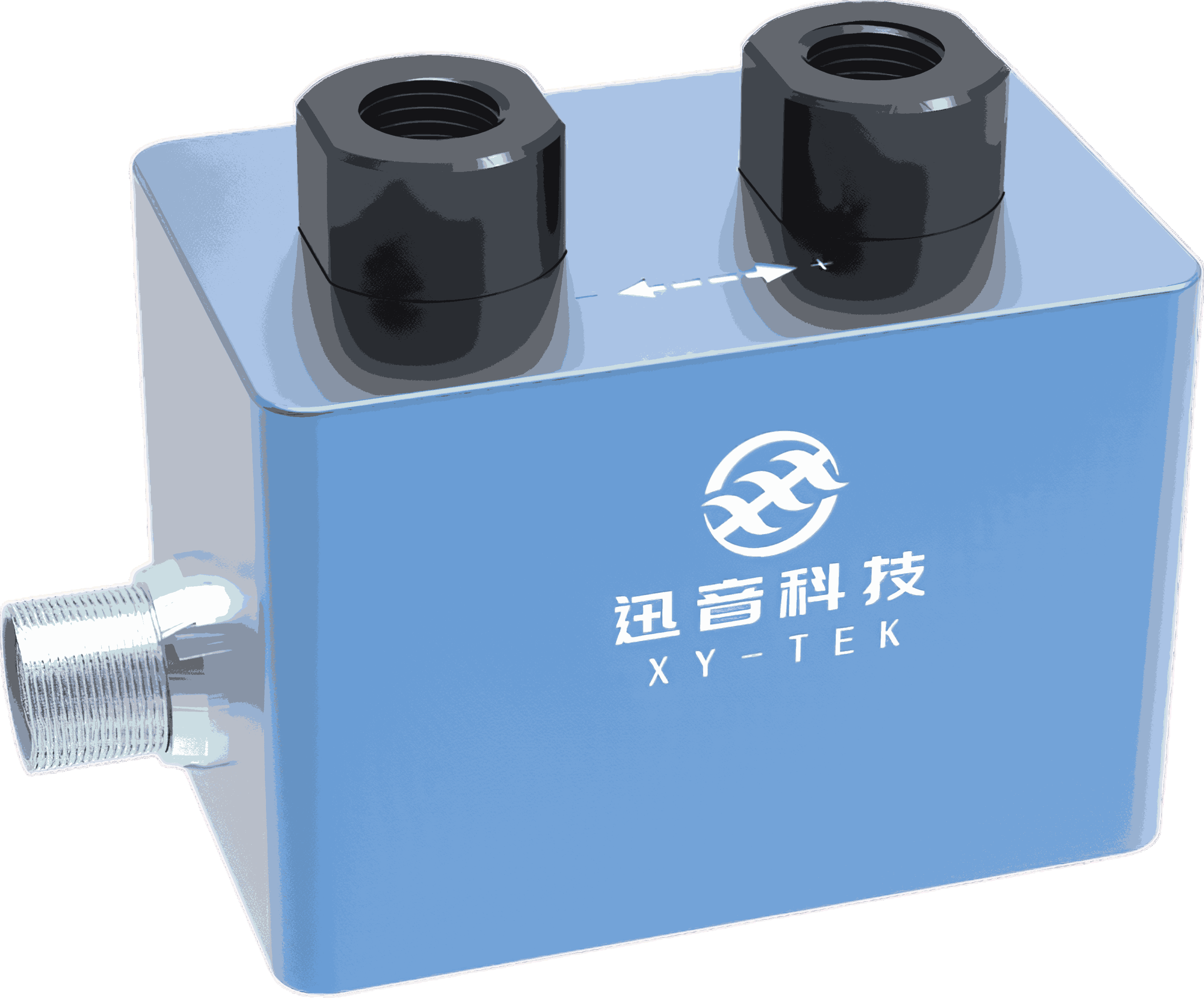

TGU Sensor Module Close-up
