EU compliant edge banding for panel furniture production

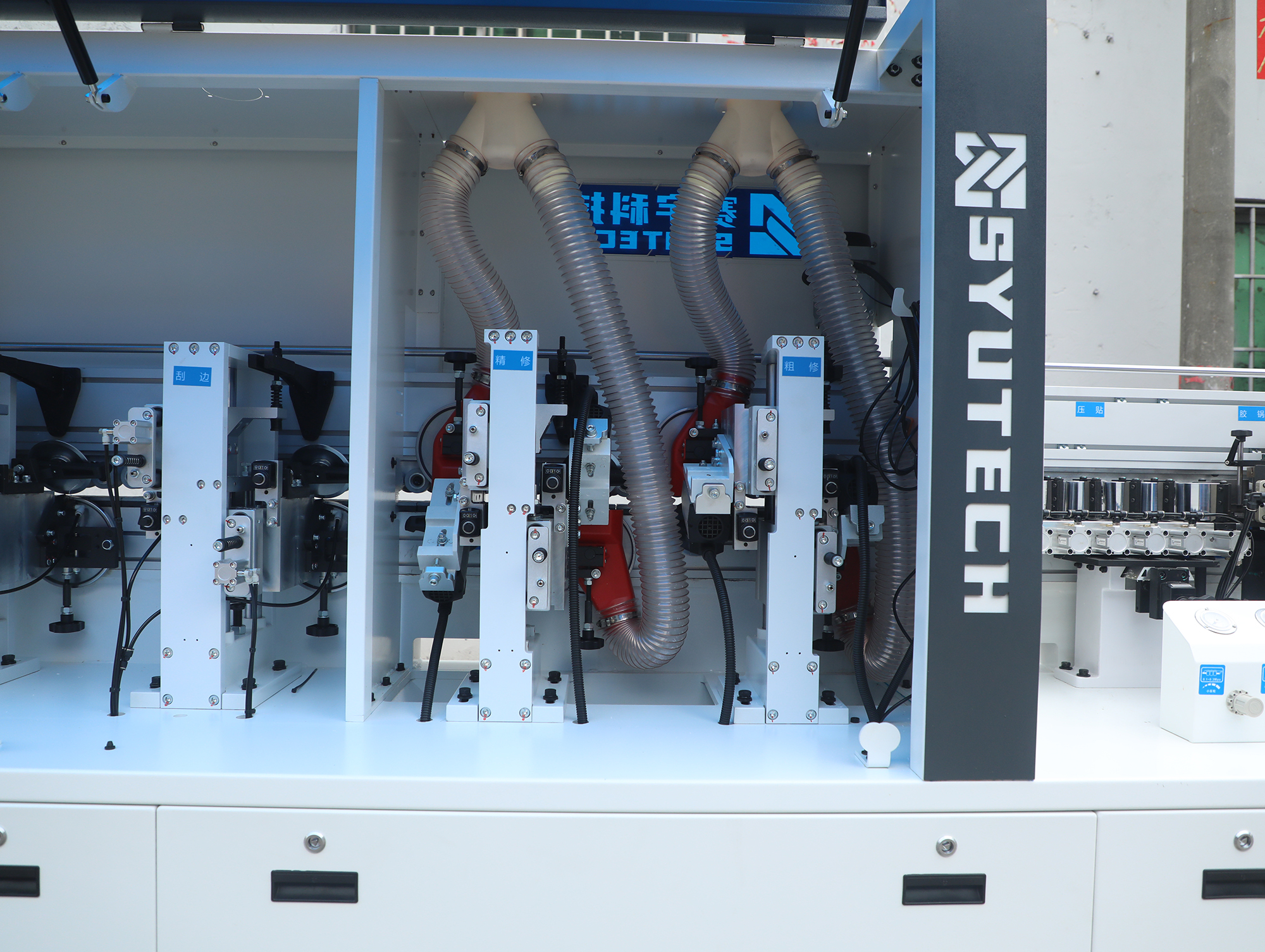

The HK-868P is a fully automatic edge banding machine with CE certification under the Machinery Directive 2006/42/EC and Low Voltage Directive 2014/35/EU (certificate no. HTT202405661L). It provides a complete edge banding solution with working speed 16-22 m/min, edge band width 10-60 mm, and thickness 0.4-3 mm. The machine incorporates pre-milling, end trimming, rough trimming, and polishing functions, all powered by a 25 kW total system.
Key Selling Points
CE Certified: Cert no. HTT202405661L, compliant with EU safety standards, facilitating European market entry.
Stable Performance: Proven in Greece with 10 units operating for 3 years, delivering increased output.
Efficient Production: Working speed up to 22 m/min reduces cycle times.
Comprehensive Finishing: Includes pre-milling, trimming, and polishing for complete edge finishing.
Available as standard model HK-868P. Custom configurations can be discussed with our engineering team.
Materials and Structure
Constructed with a carbon steel frame, the machine is built for continuous industrial use. It operates under normal indoor temperature and humidity, suitable for wood processing environments with dust containment.
Applications
Specifically suited for panel furniture manufacturers in the EU market, handling edge banding for cabinets, cabinet doors, and similar components. Meets EU CE mechanical and low voltage safety standards without explosion-proof requirements.
Case Study
Greece – Panel Furniture Manufacturer (10 units, in use for 3 years)
Yes, it holds CE certificate number HTT202405661L, issued 2024-06-05, covering Machinery and Low Voltage Directives.
What are the compliance standards?
It complies with EN ISO 12100:2010 and EN 60204-1:2018.
Can it handle PVC/ABS edging?
The specified edge band width and thickness ranges (10-60 mm width, 0.4-3 mm thickness) accommodate common PVC, ABS, and wood edging materials, but specific material compatibility should be confirmed.
What is the power requirement?
380V, 50Hz, with a total power of 25 kW.
Is operator training provided?
Training details are not specified in our materials; please contact us for arrangements.
