CWX-25S Motorized Ball Valve - SS316 Large Bore with 10N·m Torque

The CWX-25S is a robust 2-way motorized ball valve designed for industrial applications requiring reliability and precision. Featuring a large bore design, SS316 stainless steel construction, and a powerful 10N·m torque motor, it delivers superior flow control in demanding environments.

Key Selling Points

High Torque (10N·m): Easily drives DN25-80 valves without gear reducers, ensuring reliable operation even under high differential pressure.
IP67 Protection: Fully sealed against dust and temporary submersion, suitable for wet and harsh environments.
SS316 Construction: Corrosion-resistant stainless steel body resists chloride attack (Cl⁻ >200 ppm) for chemical and marine applications.
Fast Acting: Full stroke in <8 seconds for DN80, enabling rapid emergency shutoff.
Zero Leakage: Dual seal with PTFE seat and O-ring ensures bubble-tight shutoff under high pressure.
Anti-blowout Stem: Exclusive design prevents stem ejection at working pressures up to 1.6MPa.

Technical Specifications

Model	CWX-25S
Type	2-Way Motorized Ball Valve (Large Bore)
Voltage	AC220V / DC24V
Size Range	DN25 – DN80
Torque	10N·m
Control Mode	Normally-Closed / Normally-Open
IP Rating	IP67
Working Pressure	≤1.6MPa

Models and Options

CWX-25S-S1: Standard model, AC220V, 2W, NC
CWX-25S-S2: DC24V version, 2W, NO

Materials and Structure

The valve body is available in brass or SS304 (factory default SS304 for this variant). The ball and stem are made of SS316 for enhanced corrosion resistance. Seals are PTFE seat with O-ring for zero leakage. The actuator housing is engineered plastic with an IP67 rating.

Applications

Ideal for chemical, petroleum, pharmaceutical, desalination, and food processing industries. Suitable for water supply systems, fire protection, sewage, industrial circulating water, and smart water management applications.

Customization

We offer custom voltage (12V, 24V), special shaft dimensions, and connector options (DIN, ISO). MOQ is 1 unit. Contact us for details.

FAQ

What is the minimum order quantity?

MOQ is 1 unit.

What are the available power supply options?

Standard are AC220V and DC24V. Custom voltages can be accommodated.

Can the valve be used in harsh environments?

Yes, with IP67 rating and SS316 construction, it is suitable for wet, dusty, and corrosive environments.

What is the lead time for a sample order?

Lead times depend on quantity and customization. Please contact our sales team for a quote.

Does it come with a manual override?

No, this model does not include manual override. Other models in our range may offer this feature.

What certifications does it have?

The valve complies with CE and RoHS directives. We also have ISO 9001 and ISO 14001 certifications for our manufacturing processes.

Inquiry Information

Contact: Mrs Wang

Email: tf.co@tfjt.com

Tel: +86 022 85685296

WhatsApp: +86 18920338351

For more details, visit our website: www.minimotorizedvalve.com

Images

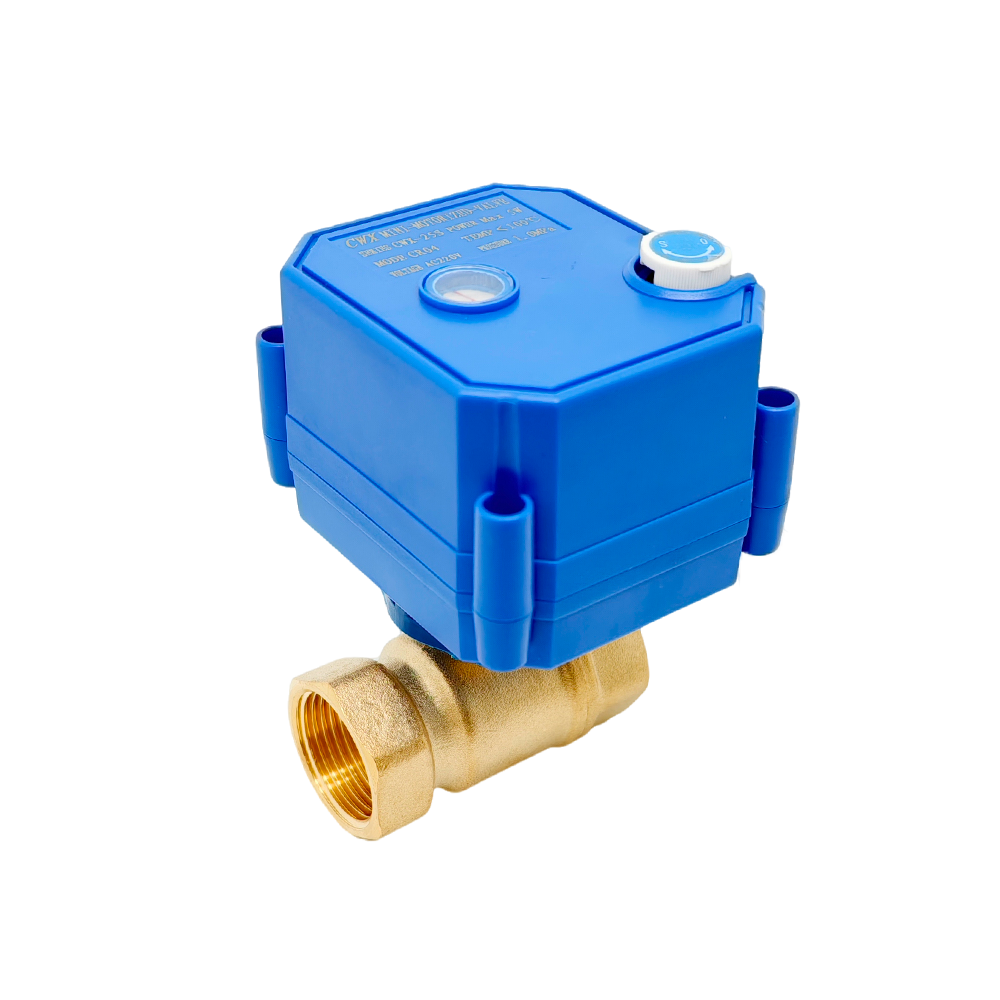

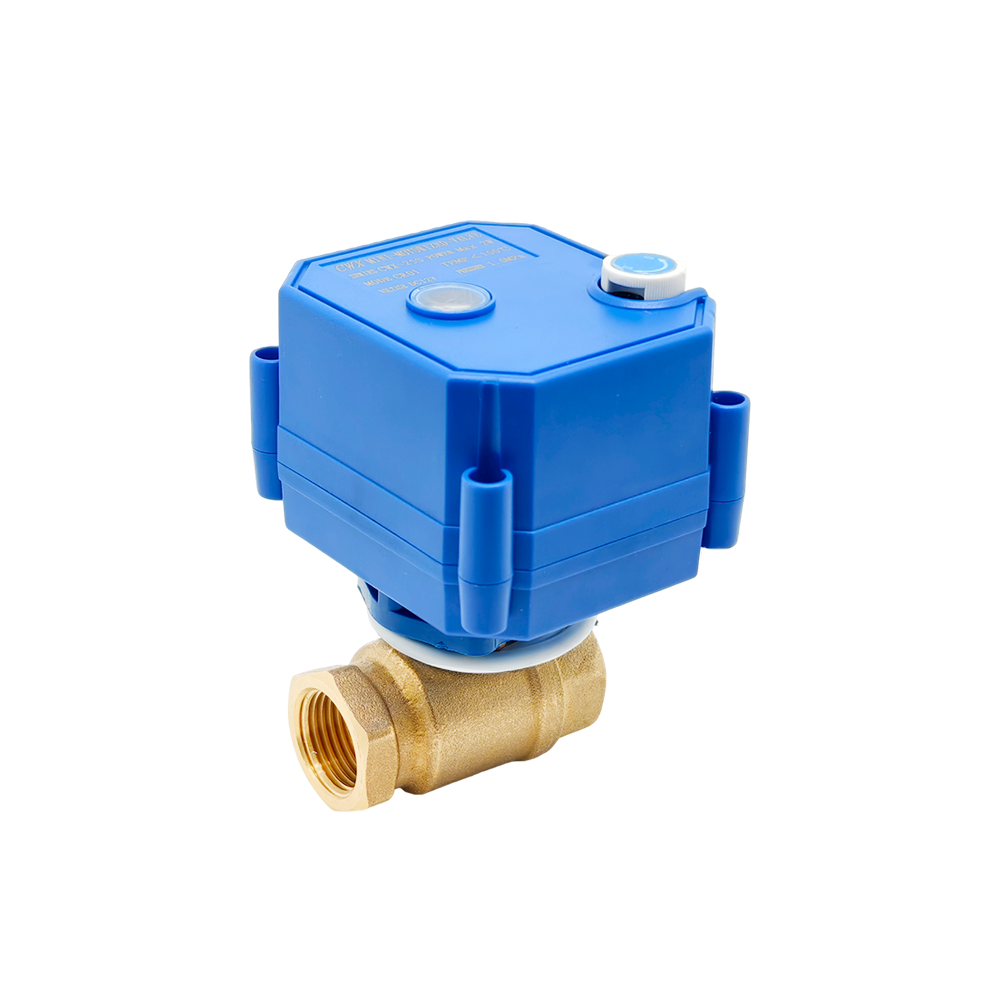

CWX-25S motorized ball valve product view
