MF1700-C3 Roll-to-Roll Laminator with Pneumatic Lift | MEFU

MF1700-C3 Industrial Roll Laminator

The MF1700-C3 is an entry-level industrial roll-to-roll laminator engineered for advertising and digital printing industries. With a max laminating width of 1630mm (64") and adjustable speed up to 20m/min, it streamlines high-volume finishing. Featuring pneumatic up/down control and heated top roller, it ensures consistent pressure and temperature for quality lamination.

Key Selling Points

Wide 1630mm capacity – laminates media up to 64 inches, accommodating large-format prints for billboards and signage.
Pneumatic pressure control – adjust roller pressure automatically for uniform lamination and reduced operator effort.
Heated top roller with max temp 120°C – active heating activates adhesives for strong bonding, suitable for thermal lamination films.
Precision trimming blades – 2 single and 1 double central blades provide clean edge trimming without separate equipment.
CE and RoHS certified – complies with EU safety and environmental standards, ensuring safe operation in regulated markets.
Integrated sheet metal frame – robust construction ensures stability during continuous operation.

Technical Specifications

Parameter	Value
Model	MF1700-C3
Type	Industrial Roll Laminator
Max Laminating Width	1630mm / 64"
Max Laminating Thickness	28mm / 1.1"
Speed	Up to 20m/min
Heating	Top Heated
Max Temperature	60°C or 120°C
Up/Down Control	Pneumatic
Trimmer Holder	2 Single and 1 Double Central Blades
Power Input	1600W or 2600W
Net Weight	180 KGS

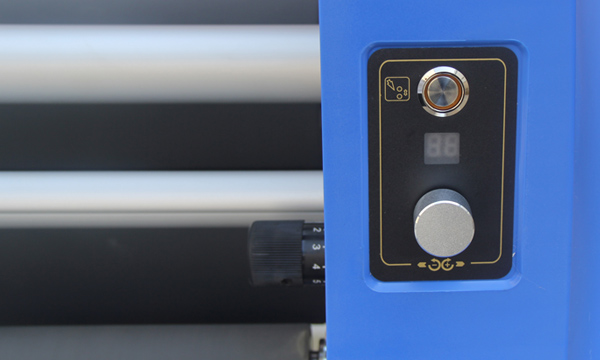

Control Panel	Front and Rear

Models and Options

The MF1700-C3 is part of a comprehensive series for various production needs. Options include models with different speed or control features. Contact us for other configurations in the MF1700 line.

Materials and Structure

Frame: Integrated sheet metal ensures rigidity. Rollers: silicone for even pressure. Heating plate: aluminum alloy for uniform temperature distribution. Heating element: infrared quartz for fast response. Cutting blade: tungsten steel for durability.

Applications

Ideal for laminating photo prints, posters, vinyl, PP paper, and PVC film. Commonly used in advertising production, digital printing, and graphic arts for protective and glossy finishes.

Customization

The machine can be customized with different power inputs (1600W/2600W), temperature settings (60°C/120°C), and control panel positions. OEM/ODM options are available. Contact sales for specific requirements.

FAQ

What is the maximum media width this laminator can handle?

The MF1700-C3 handles up to 1630mm (64 inches) wide media.

Does the machine have heated rollers?

Yes, the top roller is heated with adjustable temperature up to 60°C or 120°C depending on configuration.

Can it laminate thick materials?

Yes, it can laminate materials up to 28mm thick, accommodating a variety of substrates.

How is pressure applied between rollers?

The between-roller pressure is pneumatically controlled, ensuring even pressure distribution.

What type of trimming does it support?

It comes with a trimmer holder that accepts 2 single and 1 double central blades for precise edge cutting.

Is it CE certificated?

Yes, the MF1700-C3 is CE certified under certificate number TST20240302124-1SC.

What is the MOQ?

Minimum order quantity is 1 unit.

Inquiry Information

For pricing, delivery, and further details, please contact:
YANG | Email: info@mefu.cn | Tel/WhatsApp: +86 15890020566.
MOQ: 1 unit, Payment: T/T, Delivery: FOB/CIF/DDP/DDU. Pre-shipment testing available.
