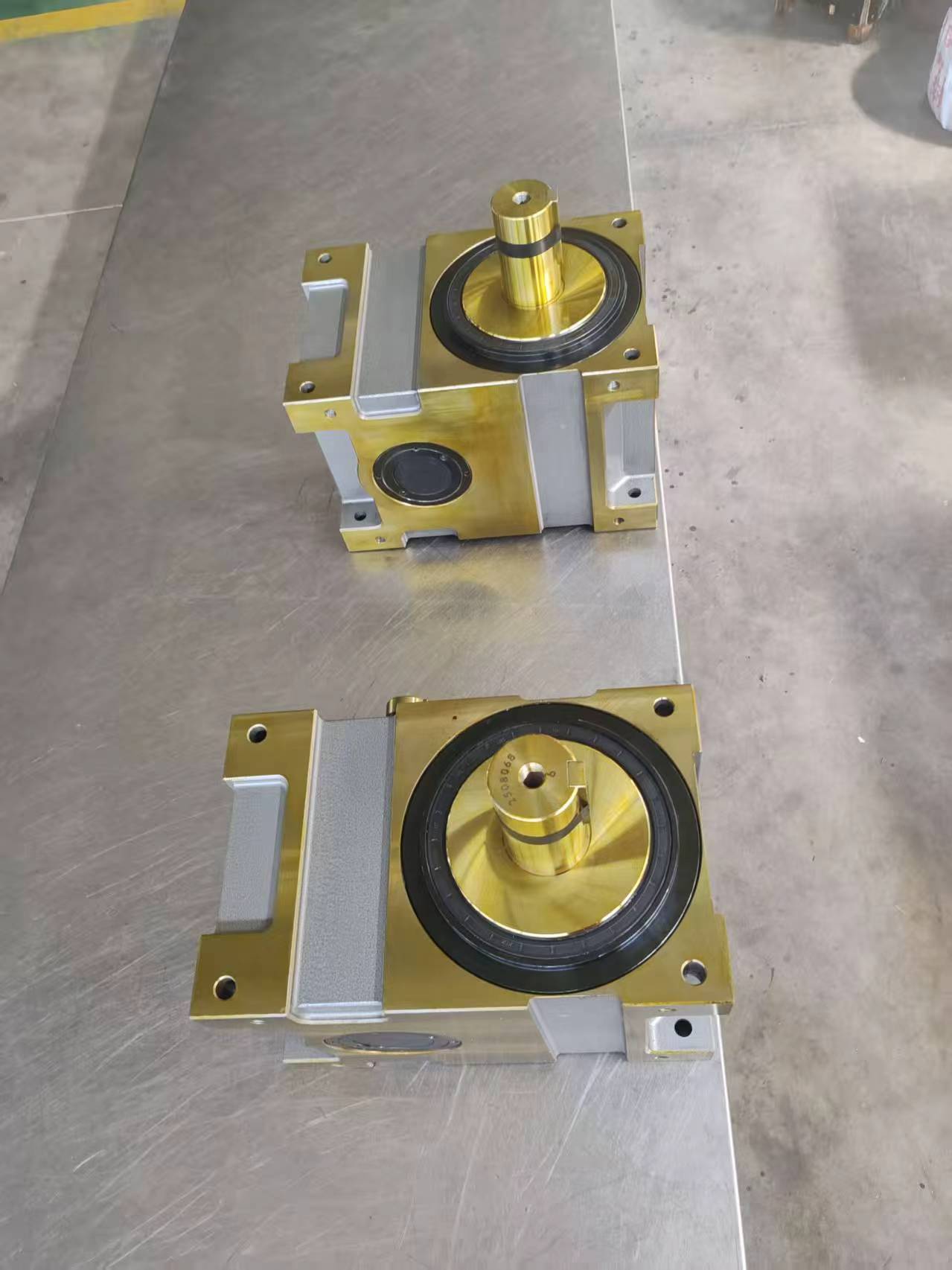

Compact 60DFS Cam Indexer

The 60DFS is a compact cam indexer from HONEPAN's DFS series, designed for automated rotary tables and intermittent motion mechanisms. With positioning accuracy up to ±30 arc-sec, it delivers precise, reliable indexing for light-to-medium load applications. Its shaft and flange output allows easy integration into existing equipment.

Key Selling Points

• ±30 arc-sec positioning accuracy – Ensures reliable station alignment for precise assembly tasks. (Source: product parameters)
• Compact design – Fits into tight spaces on rotary tables and indexing units. (Source: product series)
• 2-196 stations configurable – Flexible to adapt to various indexing sequences. (Source: product parameters)
• 42CrMo and 40Cr steel options – Provides strength and wear resistance for continuous duty. (Source: material list)
• Ideal for intermittent motion – Smooth acceleration and deceleration reduce vibration. (Source: product application)

Technical Specifications

Models and Options

The DFS series includes multiple frame sizes (45DFS to 250DFS). The 60DFS is suited for smaller machines; for heavier loads, consider 80DFS or larger.

Materials and Structure

Cam and shaft manufactured from 42CrMo or 40Cr steel, heat-treated for hardness and longevity. Surface hardening processes available upon request.

Applications

• Cosmetics and daily chemical machinery
• Filling and capping machines
• Food processing equipment
• Stationery, pen making and printing machinery
• Mask and protective equipment machinery

Customization

HONEPAN provides custom manufacturing for non-standard requirements, including special outputs, mounting flanges, and materials. Contact us for a tailored solution.
