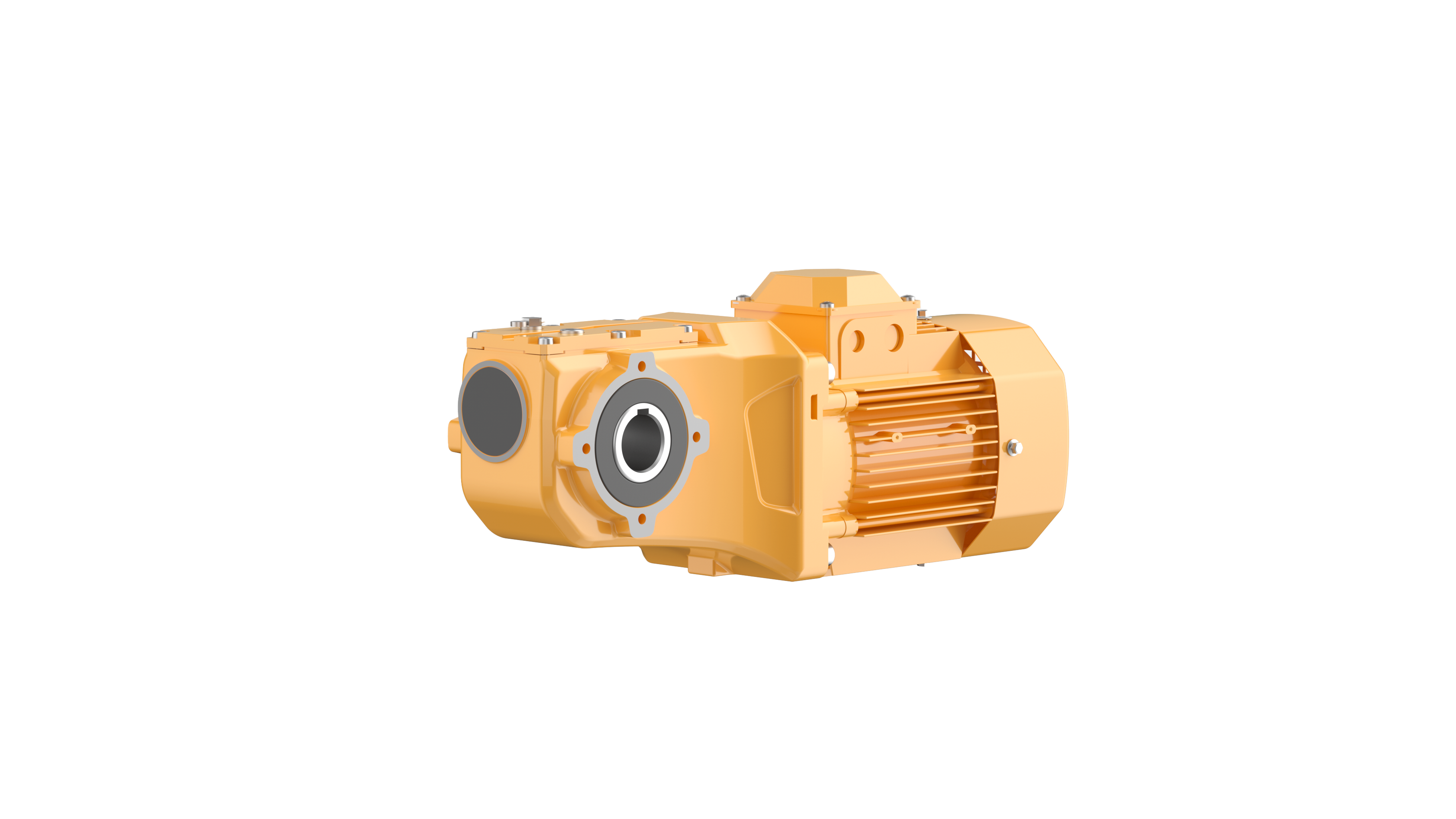

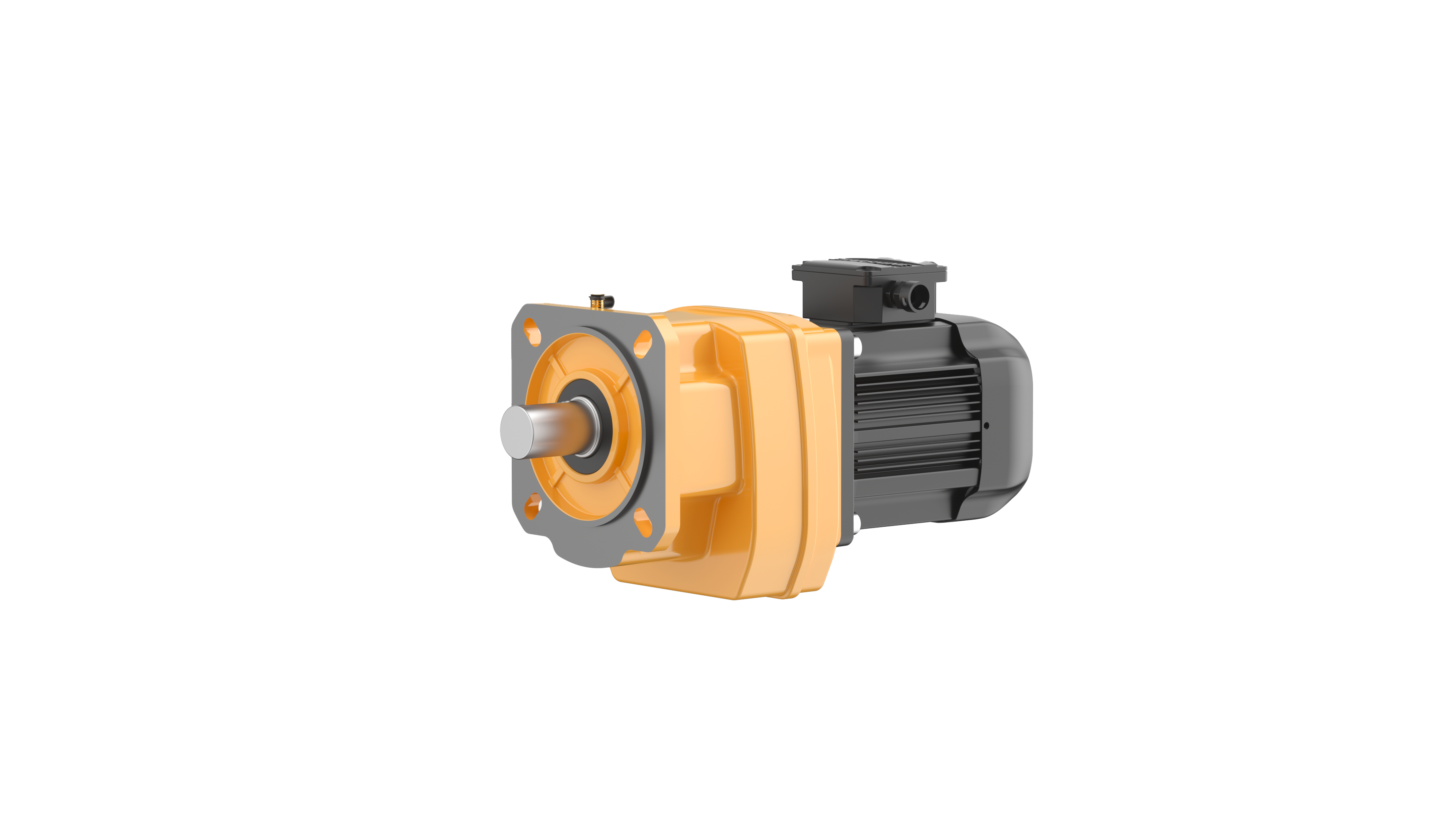

Compact Helical Gearmotor for Logistics Sorting and Conveying
The NCJ Series Helical Gearmotor is a compact, robust solution for the logistics industry, powering conveyors, sorting mechanisms, and stackers. With efficiency of 92-96%, it reduces energy costs in high-volume operations. The superior alloy steel gears (20CrMnTi) with carbonitriding (HRC55-65) provide long-lasting performance. The wide frequency motor operates reliably under 20Hz-60Hz, and the lubricating oil ensures 20000 hours of maintenance-free operation.
Key Features
- High Efficiency 92-96% – Lowers energy consumption for continuous sorting lines.
- Compact Design – Fits in space-constrained conveyor systems.
- Superior Alloy Steel Gears – 20CrMnTi, hardened to HRC55-65 for durability.
- Low Noise – Quiet operation suitable for warehouse environments.
- Wide Frequency Motor – Handles variable-speed operations from 20Hz to 60Hz.
- 20000-Hour Lubrication – Reduces maintenance.
Technical Specifications
| Efficiency | 92% ~ 96% |
| Gear Material | Superior alloy steel (20CrMnTi) |
| Hardness | HRC55-65 (carbonitriding) |
| Motor | Special wide frequency high performance motor |
| Frequency Range | 20Hz-60Hz full loading |
| Lubrication Life | 20000 hours normal use |
| Housing Material | Cast iron |
| Certification | ISO9001:2015 |
Models and Options

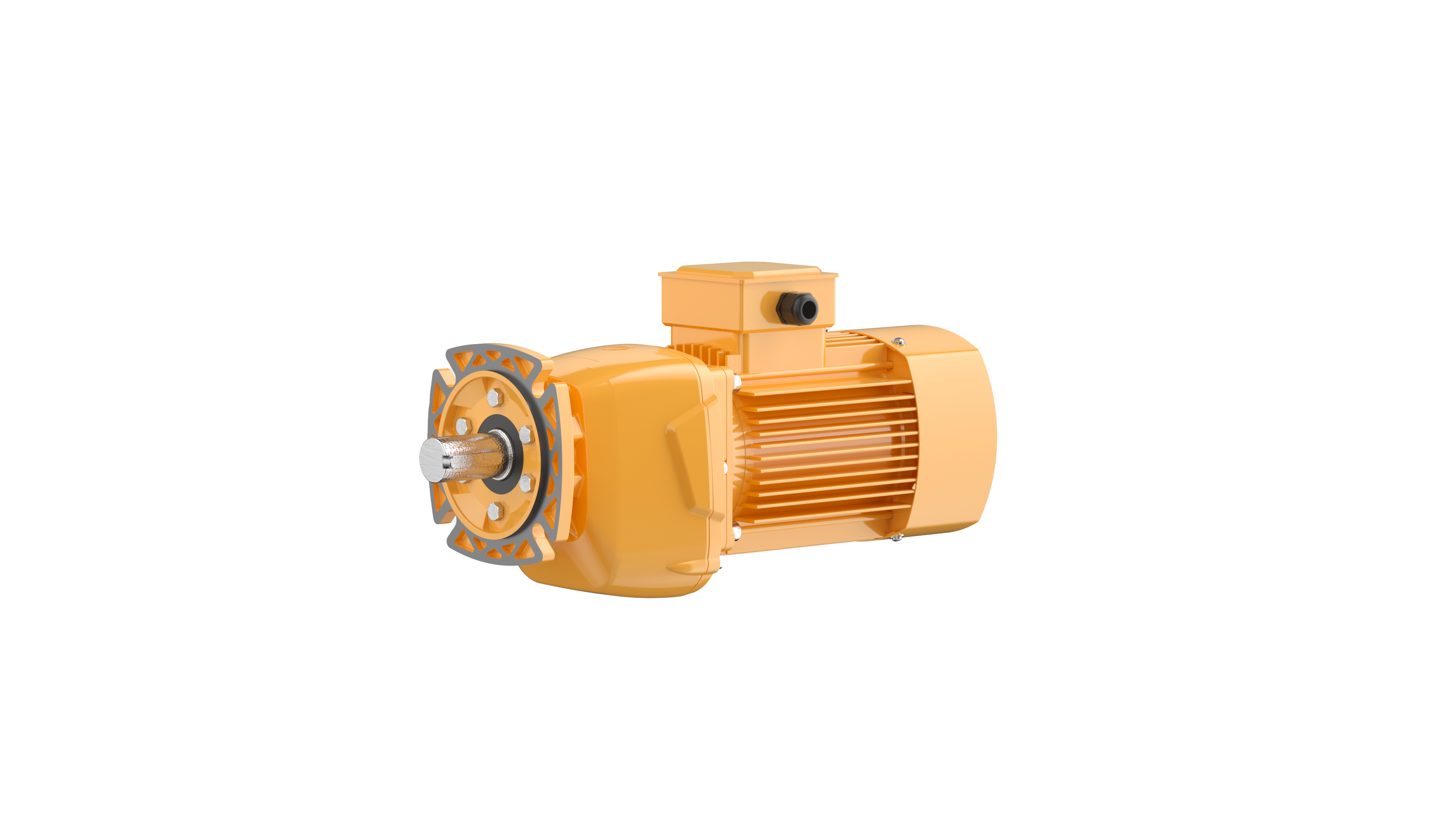

Available in multiple sizes (e.g., NCJF04, NCJF05) to cover various torque ranges. Custom options available.
Materials and Structure
The gearbox uses cast iron housing and alloy steel gears with carbonitriding. Compact design ensures easy integration into conveyor systems.
Applications
Ideal for logistics conveying, material handling, sorting systems, and stacker cranes. Suitable for continuous operation with frequent start-stop.
Customization
We can customize motor power, speed, and mounting configurations to meet specific project requirements.
FAQ
Q1: Is this gearmotor suitable for high-speed sorting systems?
A: Yes, it can handle variable-speed operation and frequent start-stop, common in sorting conveyors.
Q2: What is the noise level?
A: Low noise operation, though specific dB values are not listed in the provided data. Contact us for details.
Q3: What is the maintenance requirement?
A: With 20000-hour lubrication life, maintenance is minimal.
Q4: Can it handle dust environments?
A: The gearmotor is designed for reliable operation in dust-prone areas, with sealed housing.
Q5: Does it support variable speed?
A: Yes, with the wide frequency motor, it operates well from 20Hz to 60Hz.
Q6: What is the typical lead time?
A: Please contact us for current lead times.
