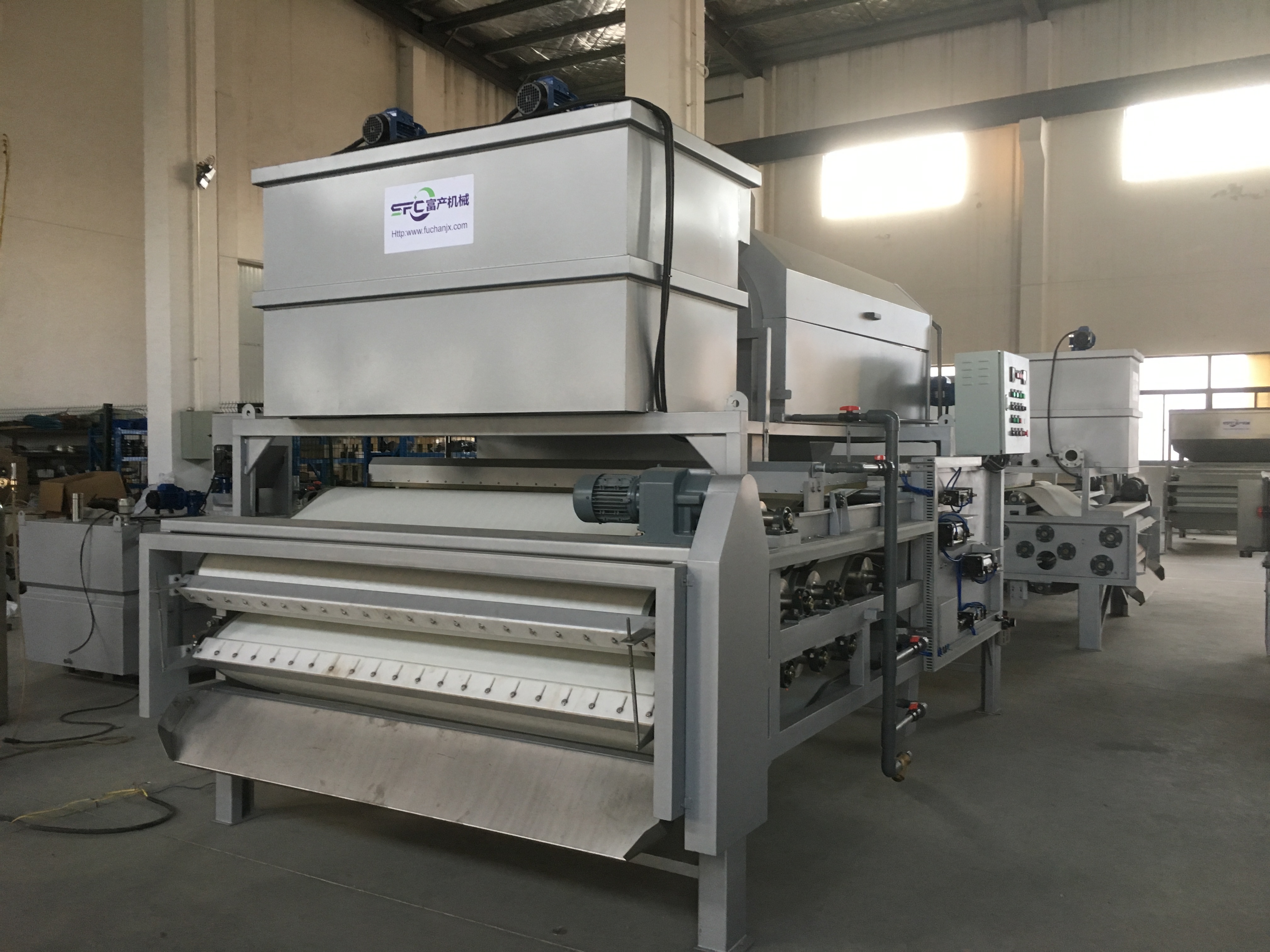

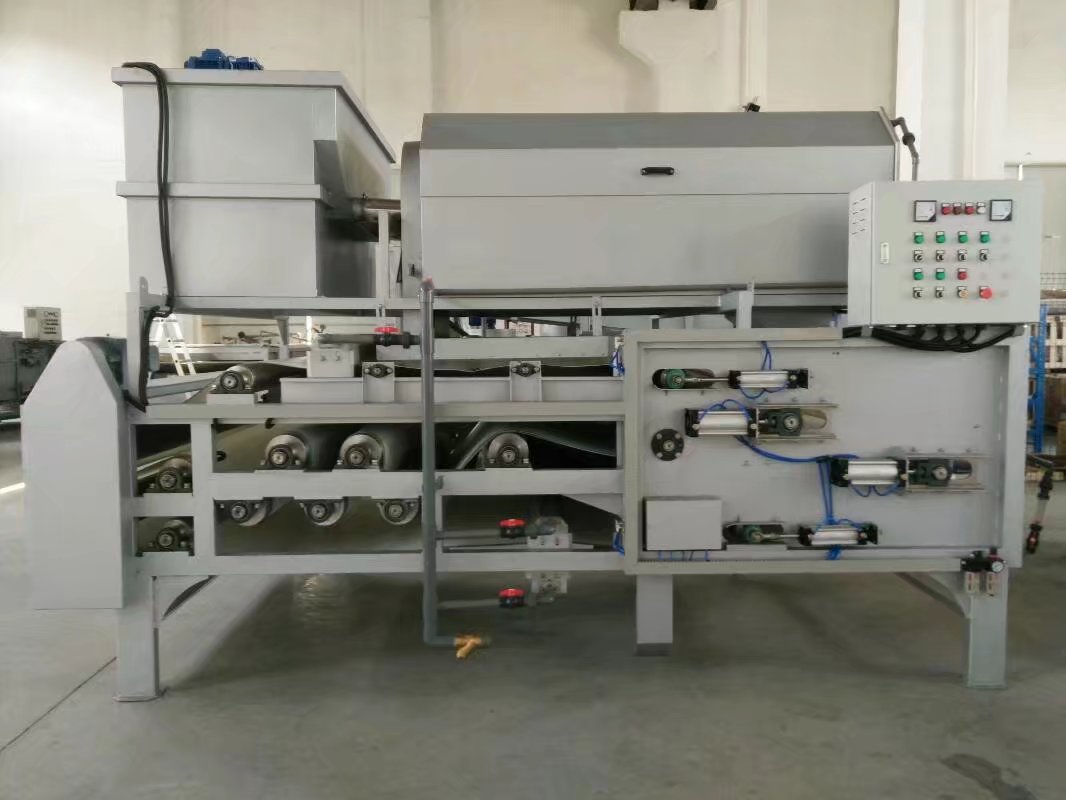

Rotary Drum Sludge Thickening and Dewatering Machine FTE-1000
Compact, CE-Certified Belt Press Dewatering for Small-Scale Municipal and Industrial Applications
Model: FTE-1000
Belt Width: 1000 mm
Treating Capacity: 12–20 m³/h
Dried Sludge Output: 90–180 kg/h
Product Summary
The FTE-1000 is a rotary drum type sludge thickening and dewatering machine that combines a rotary drum thickener and a belt press in one system. It accepts sludge with inlet consistency of S.S. 0.6–1.5% and produces dewatered cake with water content between 75–85%. With a compact footprint and fully automated operation, it is ideal for small to mid-sized municipal wastewater plants, industrial facilities, paper mills, and printing & dyeing operations requiring continuous sludge dewatering at capacities up to 20 m³/h.
Key Selling Points
Integrated Thickening + Dewatering: Rotary drum thickener pre-concentrates sludge to optimize belt press performance, achieving water content as low as 75%.
Compact 1000 mm Belt Width: Space-saving design ideal for small plants with limited footprint, while still delivering up to 20 m³/h throughput.
SS304 Construction: Corrosion-resistant stainless steel ensures long service life and reduced maintenance.
CE Certified: Complies with EU machinery and EMC directives, with certificate number M.2025.206.C130494, valid until 2030.
Energy-Efficient Motor Package: Total installed power from 0.55 kW driving motor plus drum thickener motor, minimizing operational costs.
Technical Specifications
Belt Width
1000 mm
Inlet Consistency
S.S. 0.6–1.5%
Treating Capacity
12–20 m³/h
Dried Sludge Output
90–180 kg/h
Water Content of Cake
75–85%
Driving Motor Power
0.55–1.1 kW
Disposal Agitator Motor
0.37–0.75 kW
Drum Thickener Motor
0.37–0.75 kW
Material
SS304
Models and Options
The FTE series includes multiple models to match different capacity requirements. The FTE-1000 is the entry model. Other models include FTE-1500, FTE-2000, FTE-2500, FTE-3000, and L-versions (FTE-1500L, FTE-2000L, FTE-2500L, FTE-3000L) with larger belt widths and higher throughput.
FTE-1000: Belt width 1000 mm, capacity 12–20 m³/h
FTE-1500: Belt width 1500 mm, capacity 20–35 m³/h (typical)
FTE-2000: Belt width 2000 mm, capacity 35–50 m³/h (typical)
FTE-2500: Belt width 2500 mm, capacity 50–70 m³/h (typical)
FTE-3000: Belt width 3000 mm, capacity 70–90 m³/h (typical)
L-versions: Enhanced models with extended drum lengths for higher throughput at the same belt width.
Materials and Structure
Frame: Fabricated carbon steel with anti-corrosion coating, suitable for harsh environments.
Wetted parts: SS304 stainless steel for drums, belts, and contact surfaces.
Filters: Specially designed rotary drum filter with precise mesh opening for efficient flocculation and thickening.
Controls: PLC-based automatic control system with touch screen interface (optional) for continuous operation.
Applications
Municipal Wastewater TreatmentIndustrial Wastewater TreatmentPaper MillsPrinting and DyeingMedium and Large Continuous Dewatering Projects
Customization
SFC Machinery offers customization options for the FTE-1000 to meet specific site requirements, including:
Different belt widths (up to 3000 mm) and drum lengths
Voltage and frequency adaptations for various countries
Integration with polymer preparation systems
Enclosures for outdoor installation
Advanced PLC control with remote monitoring
Contact our sales team to discuss your project needs.
FAQ
What is the inlet consistency requirement for the FTE-1000?
The FTE-1000 can handle sludge with suspended solids concentration between 0.6% and 1.5%. For sludge with higher consistency, we recommend pre-dilution.
How much does the FTE-1000 reduce sludge water content?
The dewatered cake typically contains 75% to 85% water, depending on sludge type and polymer dosing.
What is the power consumption of the FTE-1000?
The driving motor is rated between 0.55 kW and 1.1 kW, and there are additional agitator and drum motors. Total installed power is minimal, making it energy-efficient.
Is CE certification available?
Yes, the machinery is CE certified under the Machinery Directive and EMC Directive. The certificate number is M.2025.206.C130494, issued by UDEM, valid until November 2030.
What is the minimum order quantity?
The MOQ is 1 unit. We accept FOB and CIF delivery terms.
What are the payment terms?
Payment terms are 30% deposit in advance and 70% balance before shipment. We also offer factory inspection and pre-shipment inspection.
Can the FTE-1000 be used for industrial sludges?
Yes, it is suitable for municipal, industrial, paper mill, and printing/dyeing wastewater treatment applications.
Request a Quote
For detailed specifications, pricing, and delivery, please contact our sales team.
