Custom AC Industrial Hydraulic Power Unit

Quantity:
SKU: 2417280930
Model: APEX-ACHPU Series

{{ variable.name }}

{{ value.name }}
Apex Hydraulic
Enter Shop
Product Details

Product Specification

TypeAC Hydraulic Power Unit Industrial Hydraulic Power Unit Stationary Hydraulic Power Pack Continuous-Duty Hydraulic Power Unit Machine-Mounted Hydraulic Power Unit Custom Hydraulic Pump Station Electro-Hydraulic Power UnitModelAPEX-ACHPU Series
ParamsSystem Type: Single-Acting / Double-Acting / Multi-Actuator System Rated Voltage: 220 VAC / 380 VAC Electrical Phase: Single Phase / Three Phase Rated Frequency: 50 Hz / 60 Hz Motor Power: 0.12–4.0 kW Motor Duty: Intermittent Duty / Continuous Duty Motor Type: TEFC AC Induction Motor Pump Type: External Gear Pump Pump Displacement: 0.25–10.0 cm³/rev Flow Rate: 1.5–30 L/min Maximum Working Pressure: 230 bar / 3,335 PSI Reservoir Capacity: 1.5–18 L Reservoir Material: Steel / Aluminum Reservoir Installation: Horizontal / Vertical Valve Control: Manual / Solenoid / Proportional Directional Valve Type: 2-Way / 3-Way / 4-Way Directional Valve Mounting: Integrated Manifold / CETOP Modular Valve Block Number of Hydraulic Functions: 1–8 Functions Solenoid Voltage: 12 VDC / 24 VDC / 110 VAC / 220 VAC Control Interface: Push Button / Foot Pedal / PLC / HMI / Remote Control Pressure Relief Valve: Adjustable Pressure Reducing Valve: Optional Flow Control Valve: Optional Proportional Pressure Control: Optional Proportional Flow Control: Optional Pilot-Operated Check Valve: Optional Counterbalance Valve: Optional Hydraulic Accumulator: Optional Oil Cooler: Optional Oil Heater: Optional Return-Line Filter: Optional Pressure-Line Filter: Optional Suction Strainer: Optional Air Breather Filter: Optional Oil Level Indicator: Optional Oil Temperature Gauge: Optional Pressure Gauge: Optional Pressure Sensor: Optional Temperature Sensor: Optional Oil Level Sensor: Optional Hydraulic Ports: SAE ORB / NPT / BSPP / Metric Hydraulic Fluid Temperature: −20°C to +80°C Recommended Hydraulic Fluid: ISO VG 32 / ISO VG 46 / ISO VG 68 Fluid Cleanliness Level: ISO 4406 20/18/15 Cooling Method: Natural Air Cooling / Forced-Air Oil Cooling Installation Type: Floor-Mounted / Machine-Mounted / Wall-Mounted Electrical Protection: IP54 / IP55 / IP65 Custom Hydraulic Manifold: Available Custom Electrical Control Cabinet: Available OEM / ODM Service: AvailableMateriallded steel reservoir Hardened steel valve cartridges Zinc-plated or stainless-steel hydraulic fittings NBR, polyurethane or FKM hydraulic seals Oil-resistant industrial electrical cables IP-rated electrical connectors High-strength steel mounting frame
Applicable IndustryIndustrial Automation Manufacturing Equipment Hydraulic Presses Machine Tools Material Handling Equipment Warehouse Equipment Dock Levelers Lift Tables Scissor Lifts Factory Lifting Systems Clamping Equipment Packaging Machinery Plastic Processing Machinery Metal Forming Equipment Conveyor Systems Recycling Equipment Waste Compaction Equipment Test Benches Hydraulic Fixtures General Industrial Machinery

Feature

AC motor configurations support stable operation in fixed industrial equipment. Intermittent-duty and continuous-duty configurations are available for different operating cycles. Compact modular construction simplifies installation inside machines and production lines. Integrated valve manifolds reduce external piping and potential leakage points. Multiple hydraulic functions can be controlled from one centralized power unit. CETOP modular valve blocks support convenient circuit expansion and maintenance. Adjustable pressure and flow settings allow precise matching with hydraulic actuators. Optional proportional valves provide smooth speed, force and position control. Optional accumulators provide emergency energy storage and pressure stabilization. Oil coolers, heaters, filters and sensors are available for demanding operating environments. PLC and HMI interfaces enable integration with automated production systems. Custom reservoirs, mounting frames, manifolds and electrical cabinets are available. Each completed power unit undergoes pressure, leakage, electrical and full-function testing before shipment.

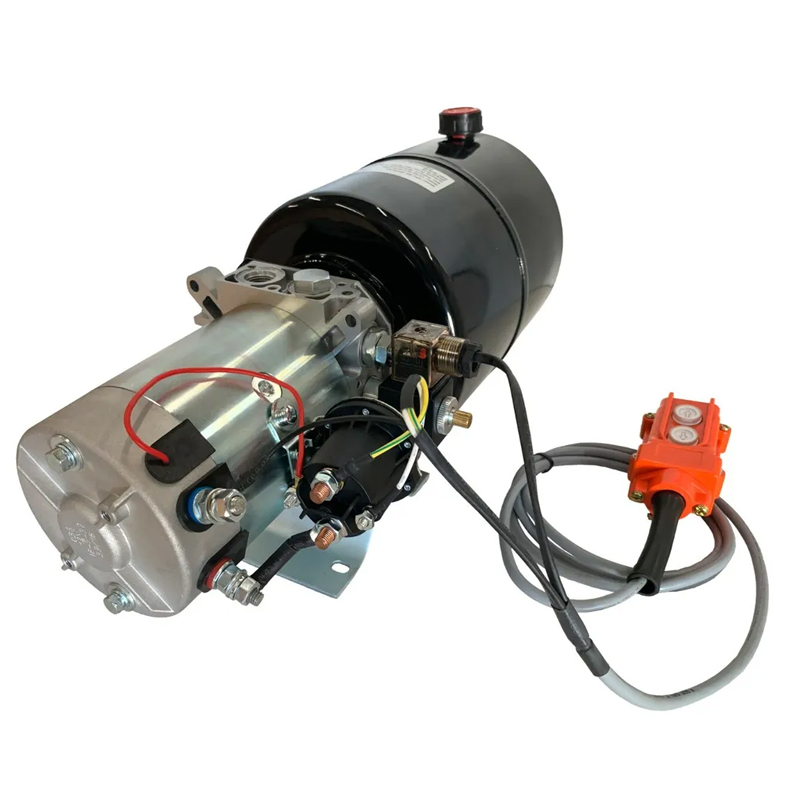

three-phase-ac-hydraulic-pump-station

three-phase-ac-hydraulic-pump-station

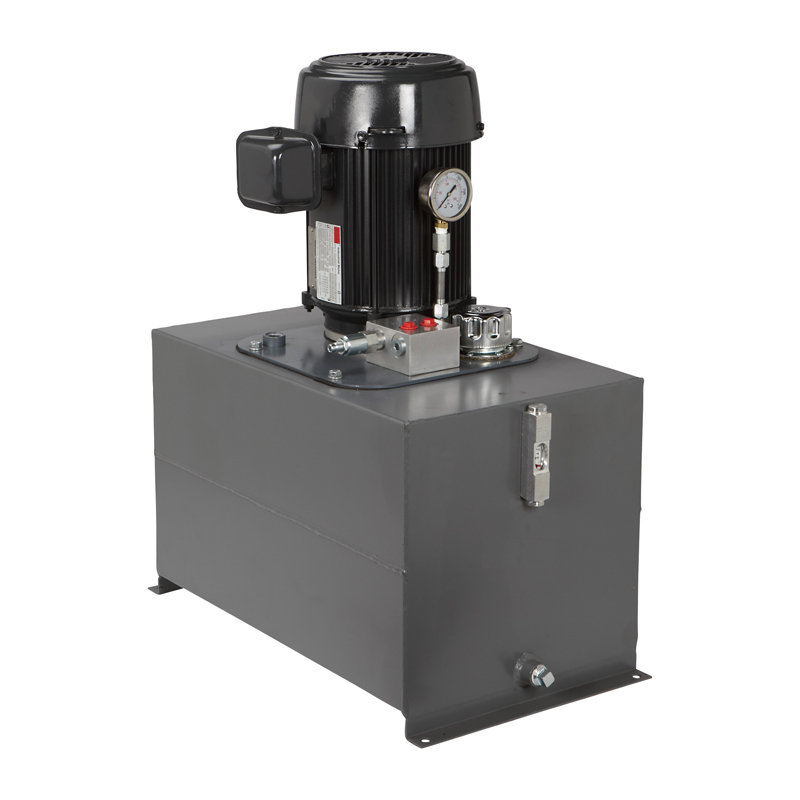

industrial-hydraulic-power-pack-with-ac-motor

industrial-hydraulic-power-pack-with-ac-motor

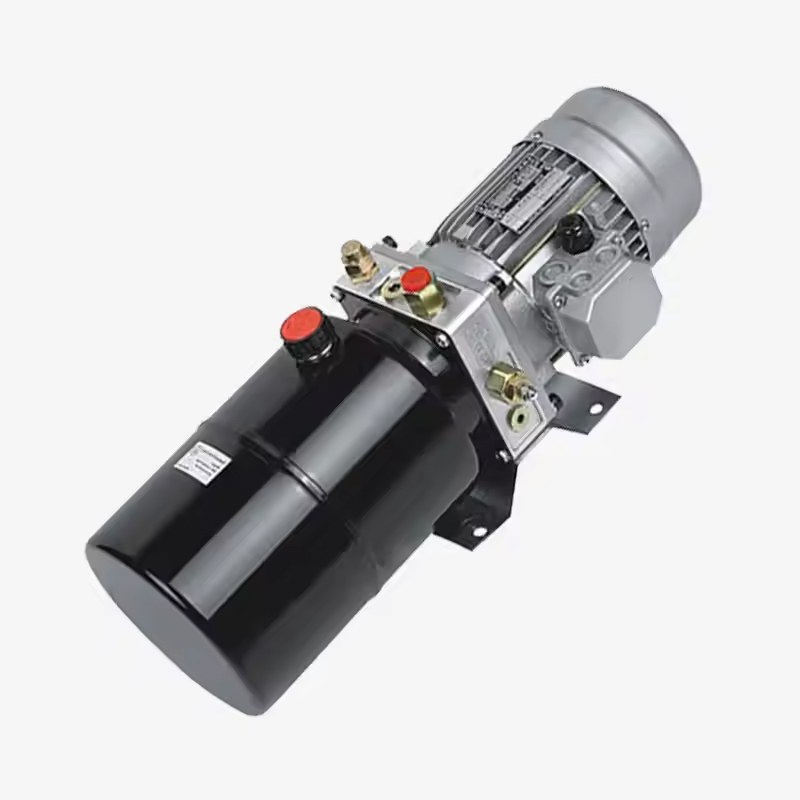

custom-ac-industrial-hydraulic-power-unit

custom-ac-industrial-hydraulic-power-unit
