Custom Compact Short-Stroke High-Force Hydraulic Cylinder

Name: "Custom Compact Short-Stroke High-Force Hydraulic Cylinder"
Rating: 5 (752 reviews)

Quantity:

SKU: 0642263965

Model: APEX-CCSC Series

Apex Hydraulic

Enter Shop

Product Details

Product Specification

Type	Custom Hydraulic Cylinder Compact Hydraulic Cylinder Short-Stroke Hydraulic Cylinder High-Force Hydraulic Cylinder Double-Acting Hydraulic Cylinder Single-Acting Hydraulic Cylinder Large-Bore Compact Cylinder	Model	APEX-CCSC Series
Params	Cylinder Structure: Compact welded, threaded or bolted construction Acting Type: Single Acting or Double Acting Bore Diameter: 40–250 mm Piston Rod Diameter: 20–180 mm Stroke Length: 10–500 mm Working Pressure: 160–250 bar Maximum Design Pressure: Up to 350 bar for specially engineered configurations Operating Temperature: -20°C to +80°C Extended Temperature Range: -40°C to +120°C with application-specific seals and materials Hydraulic Medium: Mineral-based hydraulic oil or approved compatible fluid Rated Push Force: Calculated according to bore diameter and working pressure Rated Pull Force: Calculated according to annular piston area and working pressure Operating Speed: 5–300 mm/s Duty Cycle: Intermittent, repeated-duty or application-specific operation Installation Direction: Horizontal, vertical, inclined or inverted Retracted Length: Minimized according to stroke, mounting and internal construction Extended Length: Retracted length plus effective stroke Body Configuration: Round body, square body, block type or custom-machined body Mounting Style: Front flange, rear flange, foot mount, clevis, trunnion, threaded body or custom mounting Rod-End Style: Male thread, female thread, flat push plate, clevis, pin-eye or custom tool interface Base-End Style: Flange, threaded base, foot mount, clevis or custom mounting Hydraulic Ports: SAE ORB, NPT, BSPP, metric thread, cartridge cavity or customer-specified connection Port Position: Side, rear, radial or customer-specified orientation Port Size: Selected according to hydraulic flow and operating speed End-of-Stroke Cushioning: Optional for higher-speed applications Load-Holding Valve: Optional pilot-operated check valve or integrated valve block Pressure Relief Protection: Optional integrated or external pressure-relief arrangement Mechanical Locking: Optional threaded lock nut, locking collar or mechanical support arrangement Return Method: Hydraulic power return, spring return or external load return Position Sensing: Optional proximity sensor, magnetic sensor or short-range linear position sensor Anti-Rotation Device: Optional guided rod, keyed piston rod or external guide arrangement Surface Protection: Industrial paint, powder coating, zinc coating or application-specific treatment Identification: Customer part number, serial number, logo and traceability code available Testing: Dimensional inspection, pressure testing, leakage testing and full-stroke functional testing	Material	Cylinder Body: High-strength carbon steel or alloy steel Cylinder Barrel: Precision-honed seamless steel tube or machined steel body Piston Rod: High-strength steel with hard-chrome-plated or application-specific treated surface Piston: High-strength carbon steel or alloy steel Cylinder Head / Gland: High-strength machined steel or ductile iron Cylinder Base: High-strength machined or forged steel Push Plate: Hardened alloy steel or high-strength carbon steel Mounting Flanges: High-strength machined steel Mounting Pins: Hardened alloy steel Bushings: Bronze, steel-backed composite or hardened steel bushing Wear Rings: High-load reinforced polymer or composite bearing material Primary Seals: High-pressure polyurethane or PTFE composite seals Static Seals: NBR, FKM or temperature-specific elastomer Rod Wiper: Polyurethane, metal-cased scraper or dual-wiper system Spring: High-strength spring steel for spring-return configurations Fasteners: High-strength alloy-steel fasten
Applicable Industry	Industrial Presses Injection Molding Equipment Die and Mold Equipment Clamping Machinery Metal Forming Equipment Material Handling Equipment Machine Tools Automotive Production Equipment Assembly and Testing Equipment Lifting Equipment Construction Equipment Mining Equipment Railway Maintenance Equipment Special-Purpose Machinery

Feature

Produces high output force within a compact installation envelope. Short-stroke construction reduces total cylinder length and required machine space. Large-bore configurations provide high pushing force at conventional hydraulic pressure. Single-acting and double-acting versions are available. Round, square and block-type body configurations support different machine layouts. Optional threaded-body installation simplifies mounting in compact fixtures. Optional mechanical locking provides load support during maintenance or extended holding periods. Optional spring return is available for simple single-acting applications. Integrated valve blocks reduce external piping and installation space. Optional anti-rotation structures improve tool and fixture alignment. High-load guide rings support repeated short-stroke operation. Custom push plates, rod ends and tool interfaces can connect directly to customer equipment. Pressure, leakage and full-stroke testing are completed before shipment.

apex-short-stroke-large-bore-hydraulic-cylinder

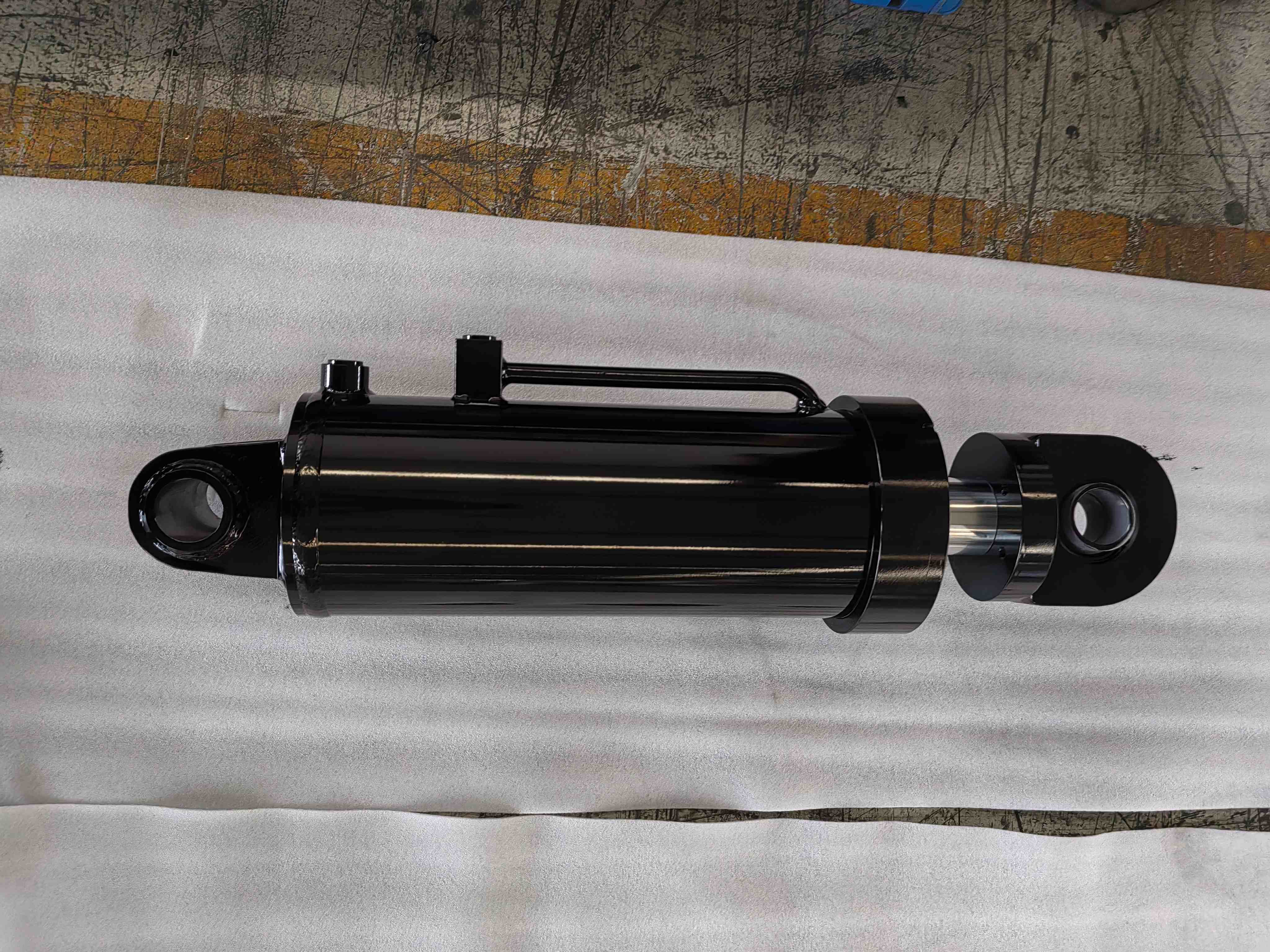

apex-custom-compact-high-force-hydraulic-cylinder

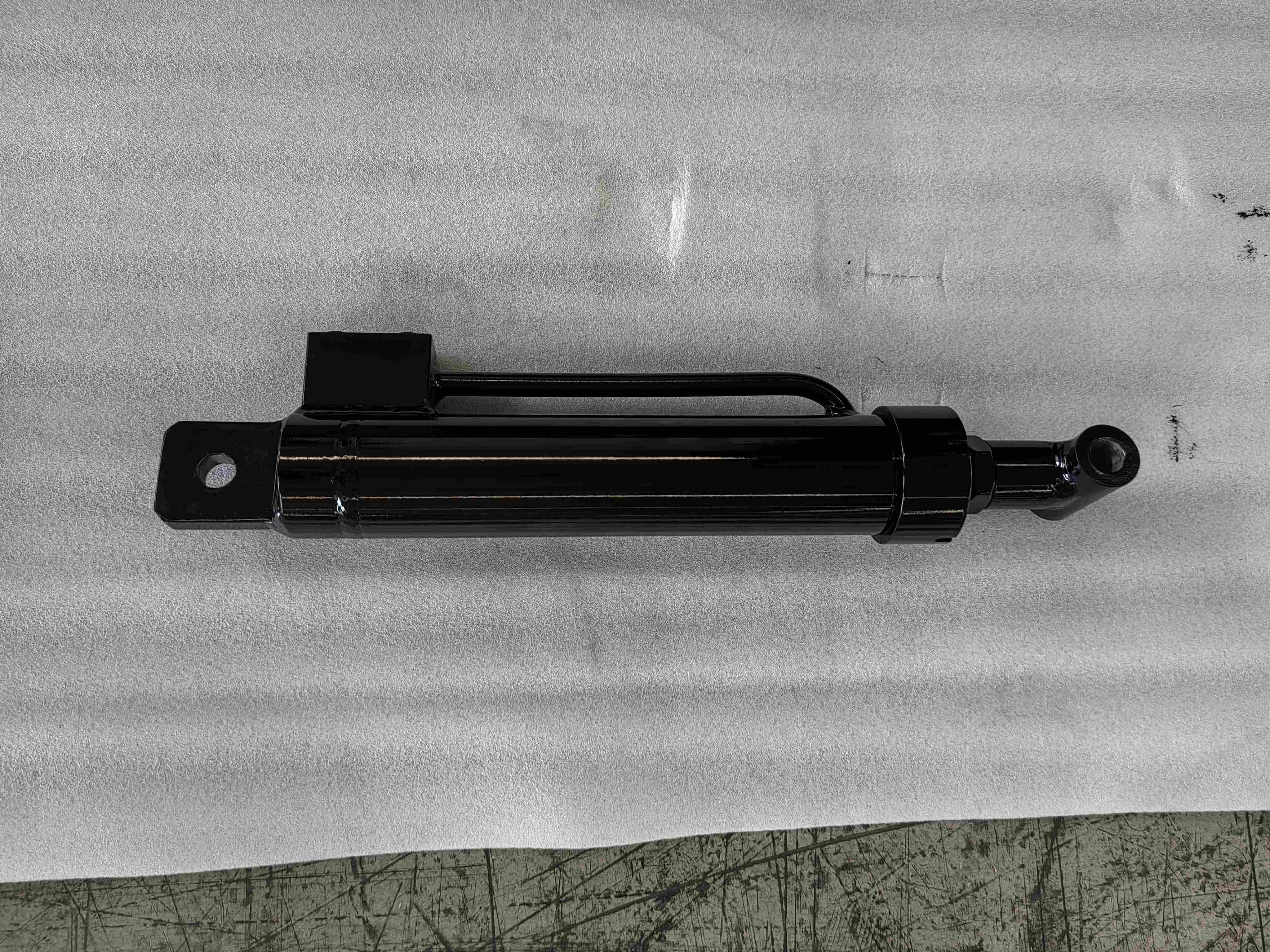

apex-compact-flange-mounted-hydraulic-cylinder

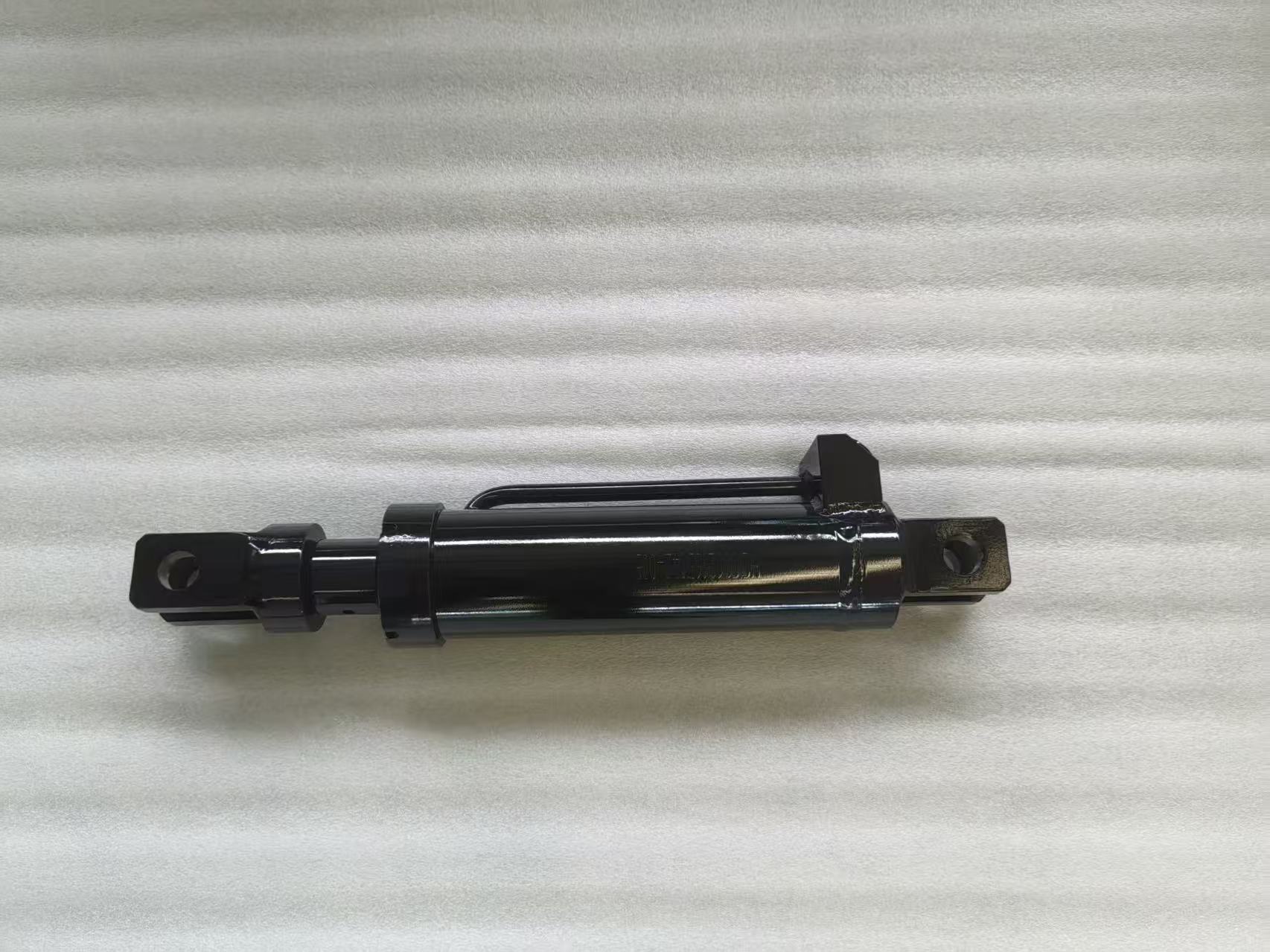

apex-compact-block-type-hydraulic-cylinder
