Custom Long-Stroke Hydraulic Cylinder

Name: "Custom Long-Stroke Hydraulic Cylinder"
Rating: 5 (513 reviews)

Quantity:

SKU: 6532808903

Model: APEX-CLSC Series

Apex Hydraulic

Enter Shop

Product Details

Product Specification

Type	Custom Hydraulic Cylinder Long-Stroke Hydraulic Cylinder Double-Acting Hydraulic Cylinder Single-Acting Hydraulic Cylinder Welded Hydraulic Cylinder Mobile Equipment Hydraulic Cylinder Industrial Hydraulic Cylinder	Model	APEX-CLSC Series
Params	Cylinder Structure: Welded-body or application-specific long-stroke construction Acting Type: Single Acting or Double Acting Bore Diameter: Engineered according to required output force, operating pressure and installation envelope Piston Rod Diameter: Determined through load, unsupported length, buckling and deflection calculations Stroke Length: Customized according to the required equipment movement Retracted Length: Minimized within the limits of the selected structure and mounting configuration Extended Length: Determined by the retracted length and effective stroke Pin-to-Pin Dimensions: Manufactured according to the approved installation drawing Working Pressure: Customized according to the equipment hydraulic system Maximum System Pressure: Must be confirmed before final engineering approval Proof-Test Pressure: Defined in the approved inspection and testing plan Rated Push Force: Calculated from effective piston area and specified working pressure Rated Pull Force: Calculated from annular piston area and specified working pressure Operating Direction: Horizontal, vertical, inclined or changing-angle installation Load Direction: Compression, tension or alternating push-and-pull load Rod Buckling Verification: Required for long-stroke compression applications Rod Deflection Verification: Required for horizontal and inclined installations Cylinder Alignment: Equipment mounting points must maintain acceptable coaxial alignment Permissible Side Load: Defined according to the approved engineering calculation Operating Speed: Selected according to bore size, hydraulic flow and stroke length Flow Requirement: Calculated according to displacement volume and target cycle time Duty Cycle: Intermittent, repeated-duty or application-specific operation Hydraulic Medium: Mineral-based hydraulic oil or approved compatible fluid Operating Temperature: Determined by the selected sealing system and hydraulic fluid Hydraulic Ports: SAE ORB, NPT, BSPP, BSPT, metric thread, SAE flange or customer-specified connection Port Size: Selected according to required flow and acceptable pressure loss Port Position: Customized according to hose routing throughout the full movement Mounting Style: Clevis, pin-eye, cross-tube, trunnion, flange, spherical bearing or custom mounting Mounting Bearings: Replaceable bushings or spherical plain bearings available End-of-Stroke Cushioning: Optional head-end, cap-end or dual-end hydraulic cushioning Stroke Limitation: Optional internal stop, external stop or mechanical travel-control provision Load-Holding Protection: Optional counterbalance valve, pilot-operated check valve or hose-burst valve Position Monitoring: Optional linear position transducer, magnetostrictive sensor, proximity sensor or limit switch Surface Protection: Industrial paint or application-specific corrosion-resistant coating Identification: Customer part number, serial number, logo and traceability code available Testing: Dimensional inspection, pressure testing, leakage testing and complete full-stroke cycling Straightness Inspection: Barrel and piston-rod straightness inspected according to the approved drawing Documentation: Approved drawing, dimensional report, pressure-test report and inspection records available	Material	Cylinder Barrel: Precision-honed seamless steel tube selected for straightness, wall thickness and pressure requirements Piston Rod: High-strength steel or alloy steel with hard-chrome-plated or application-specific treated surface Piston: High-strength carbon steel, alloy steel or ductile iron according to design requirements Cylinder Head / Gland: High-strength machined steel or ductile iron Cylinder Base: High-strength machined or forged steel Mounting Components: High-strength carbon steel or alloy steel Mounting Pins: Hardened alloy steel Bushings: Bronze, steel-backed composite or hardened steel bushing Spherical Bearings: Heavy-duty spherical plain bearings where angular movement is required Wear Rings: Reinforced polymer or composite bearing material designed for extended guiding length Primary Seals: Polyurethane, PTFE composite or application-specific sealing system Static Seals: NBR, FKM or temperature-specific elastomer Rod Wiper: Polyurethane, metal-cased scrap
Applicable Industry	Construction Equipment Agricultural Machinery Waste and Recycling Equipment Refuse Collection Vehicles Material Handling Equipment Industrial Automation Lifting and Access Equipment Forestry Equipment Mining Equipment Marine and Port Equipment Special-Purpose Vehicles Trailer and Truck Equipment Water-Control and Infrastructure Equipment	定制所需资料	Equipment Type Cylinder Function Required Stroke Length Retracted Pin-to-Pin Length Extended Pin-to-Pin Length Available Installation Envelope Required Push Force Required Pull Force Normal Working Load Maximum Peak Load Working Pressure Maximum System Pressure Installation Direction Load Direction Unsupported Rod Length Side-Load Conditions Required Operating Speed Required Cycle Time Hydraulic Flow Rate Operating Frequency Duty Cycle Mounting Style Mounting-Pin Diameter Mounting Width Permitted Angular Movement Hydraulic-Port Type Hydraulic-Port Position Hose-Routing Restrictions Cushioning Requirement Position-Sensing Requirement Load-Holding Requirement Operating Temperature Hydraulic Fluid Type Environmental Conditions Corrosion-Protection Requirement Existing Drawing, Sample or Part Number Annual Demand

Feature

Provides extended linear movement for equipment requiring a long operating stroke. Bore, rod diameter, stroke and pin-to-pin dimensions are engineered for the actual installation. Piston-rod buckling and deflection can be evaluated for long unsupported lengths. Guiding length and wear-ring configuration can be optimized to improve stability during extension. Optional spherical bearings accommodate limited angular movement between equipment mounting points. Optional end-of-stroke cushioning reduces impact during long and high-speed movements. Optional position sensing provides continuous stroke feedback for automated equipment. Port size and hydraulic flow can be matched to the required extension and retraction time. Single-acting and double-acting configurations are available for different motion-control requirements. Custom port orientations support hose routing throughout the complete equipment movement. Replaceable bushings and modular sealing components simplify field maintenance. Every cylinder can undergo complete full-stroke cycling to verify smooth operation before shipment.

apex-long-stroke-double-acting-hydraulic-cylinder

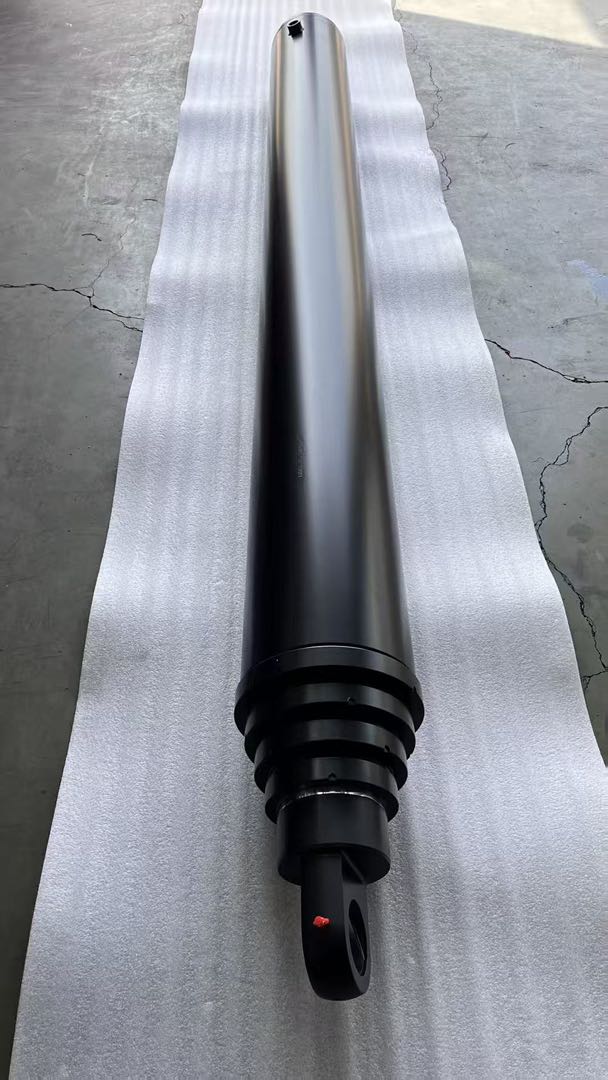

apex-custom-long-stroke-hydraulic-cylinder
