Custom Low-Noise Compact Hydraulic Power Unit

Name: "Custom Low-Noise Compact Hydraulic Power Unit"
Rating: 5 (446 reviews)

Quantity:

SKU: 4306020886

Model: APEX-CLNCHPU

Apex Hydraulic

Enter Shop

Product Details

Product Specification

Type	Low-Noise Hydraulic Power Unit Compact Hydraulic Power Pack Mini Hydraulic Power Unit Machine-Mounted Hydraulic Power Unit Medical Equipment Hydraulic Power Unit Lift Table Hydraulic Power Unit Accessibility Lift Hydraulic Power Unit Custom Electro	Model	APEX-CLNCHPU
Params	System Type: Single-Acting / Double-Acting / Reversible Pump System Hydraulic Functions: 1–4 Functions Rated DC Voltage: 12 VDC / 24 VDC / 48 VDC Rated AC Voltage: 220 VAC / 380 VAC Rated Frequency: 50 Hz / 60 Hz Motor Power: 0.35–4.0 kW Motor Duty: Intermittent Duty / Continuous Duty Motor Type: Brushed DC Motor / Brushless DC Motor / AC Induction Motor Pump Type: Low-Noise External Gear Pump Pump Direction: Unidirectional / Reversible Pump Displacement: 0.25–10.0 cm³/rev Flow Rate: 1–20 L/min Maximum Working Pressure: 230 bar / 3,335 PSI Reservoir Capacity: 0.5–18 L Reservoir Material: Steel / Aluminum / Polymer Reservoir Installation: Horizontal / Vertical Directional Valve Type: 2-Way / 3-Way / 4-Way Valve Control: Manual / Solenoid / Proportional Directional Valve Mounting: Integrated Manifold / Modular Valve Block Solenoid Voltage: 12 VDC / 24 VDC / 48 VDC / 110 VAC / 220 VAC Control Method: Push Button / Foot Pedal / Wired Pendant / Wireless Remote / PLC Power Up / Gravity Down: Available Power Up / Power Down: Available Reversible Pump Control: Available Pressure Relief Valve: Adjustable Pressure Reducing Valve: Optional Pressure-Compensated Flow Control Valve: Optional Proportional Flow Control Valve: Optional Pilot-Operated Check Valve: Optional Load-Holding Valve: Optional Counterbalance Valve: Optional Hydraulic Accumulator: Optional Manual Emergency Lowering: Optional Emergency Hand Pump: Optional Return-Line Filter: Optional Suction Strainer: Optional Air Breather Filter: Optional Oil Level Indicator: Optional Oil Temperature Sensor: Optional Pressure Sensor: Optional Anti-Vibration Mounts: Optional Acoustic Enclosure: Optional Flexible Motor-Pump Coupling: Optional Hydraulic Ports: SAE ORB / NPT / BSPP / Metric Port Size: SAE #4–#10 / 1/4–5/8 Inch Hydraulic Fluid Temperature: −20°C to +80°C Recommended Hydraulic Fluid: ISO VG 22 / ISO VG 32 / ISO VG 46 Fluid Cleanliness Level: ISO 4406 20/18/15 Cooling Method: Natural Air Cooling / Forced-Air Cooling Installation Type: Machine-Mounted / Wall-Mounted / Floor-Mounted / Cabinet-Mounted Ingress Protection: IP54 / IP55 / IP65 Custom Hydraulic Manifold: Available Custom Electrical Control: Available OEM / ODM Service: Available	Material	High-strength aluminum hydraulic manifold Hardened alloy steel gear pump components Copper-wound DC or AC electric motor Powder-coated steel or aluminum motor housing Steel, aluminum or high-strength polymer reservoir Hardened steel valve cartridges Zinc-plated or stainless-steel hydraulic fittings NBR, polyurethane or FKM hydraulic seals Oil-resistant electrical cables IP-rated electrical connectors Rubber or elastomer anti-vibration mounts Powder-coated steel acoustic enclosure
Applicable Industry	Medical Equipment Patient Lifting Equipment Accessibility Lifts Wheelchair Lifts Home Elevators Ergonomic Workstations Lift Tables Scissor Lifts Material Handling Equipment Warehouse Equipment Laboratory Equipment Fitness Equipment Packaging Machinery Industrial Automation Machine Tools Parking Systems Security Gates Automatic Doors Mobile Service Equipment General Industrial Machinery

Feature

Low-noise motor and gear pump configurations support indoor and noise-sensitive applications. Optimized motor-pump matching reduces vibration, pressure pulsation and unnecessary energy loss. Compact integrated construction minimizes installation space. Single-acting, double-acting and reversible-pump hydraulic circuits are available. Optional anti-vibration mounts reduce structure-borne noise transmitted to the equipment frame. Optional acoustic enclosures reduce airborne operating noise. Flexible motor-pump couplings help isolate mechanical vibration. Smooth flow-control options provide stable lifting and lowering movement. Optional proportional valves support precise speed, force and position control. Integrated manifolds reduce external hoses, fittings and potential leakage points. Horizontal and vertical reservoir options support different installation layouts. DC and AC motor configurations cover mobile and stationary equipment. Emergency lowering and manual backup options improve equipment safety. Each completed unit undergoes pressure, leakage, vibration, electrical and full-function testing before shipment.

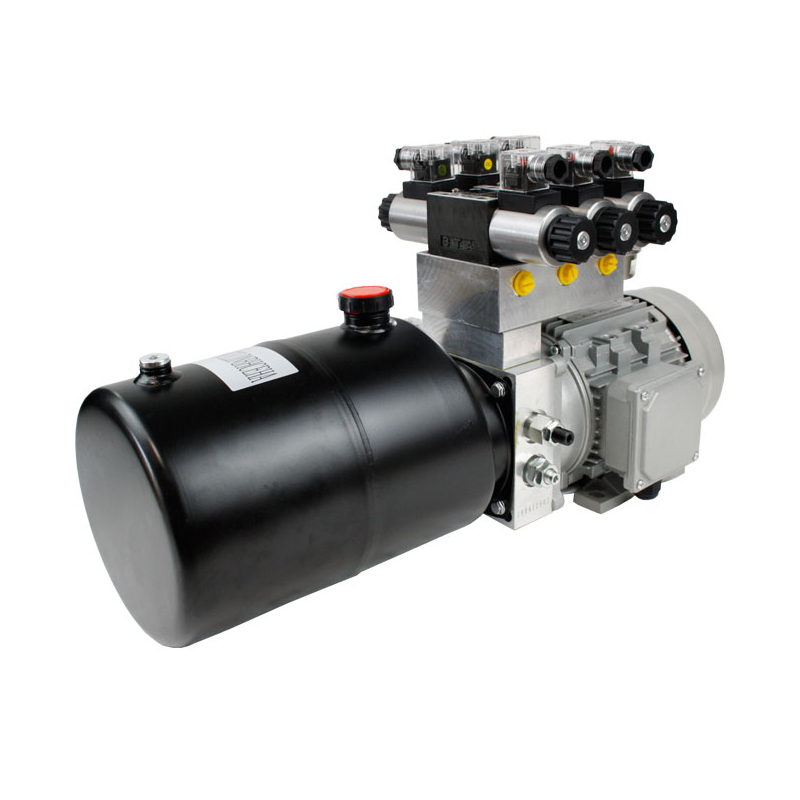

custom-low-noise-compact-hydraulic-power-unit

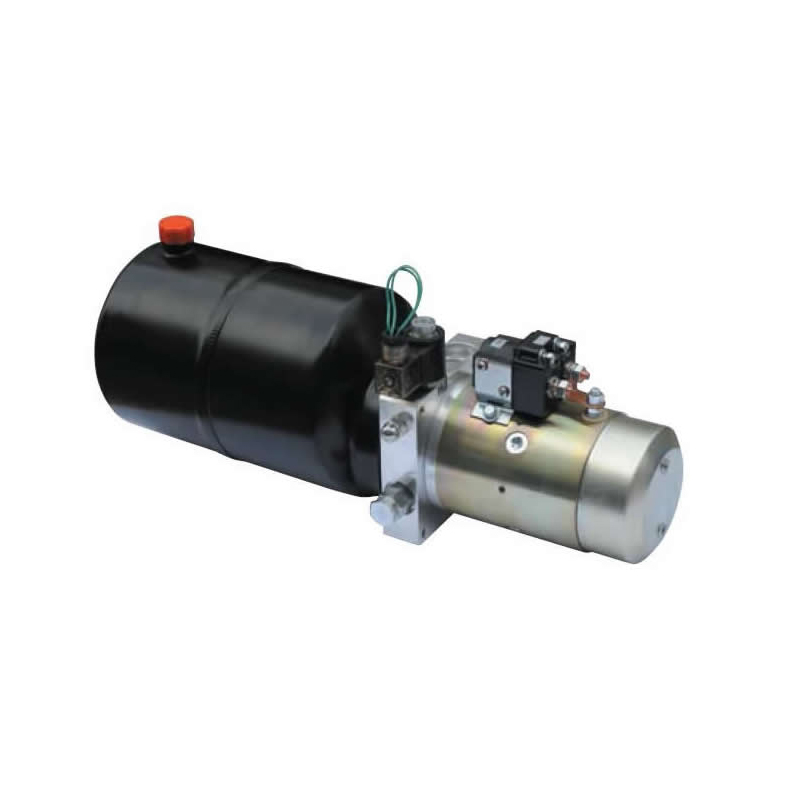

mini-low-noise-hydraulic-power-pack

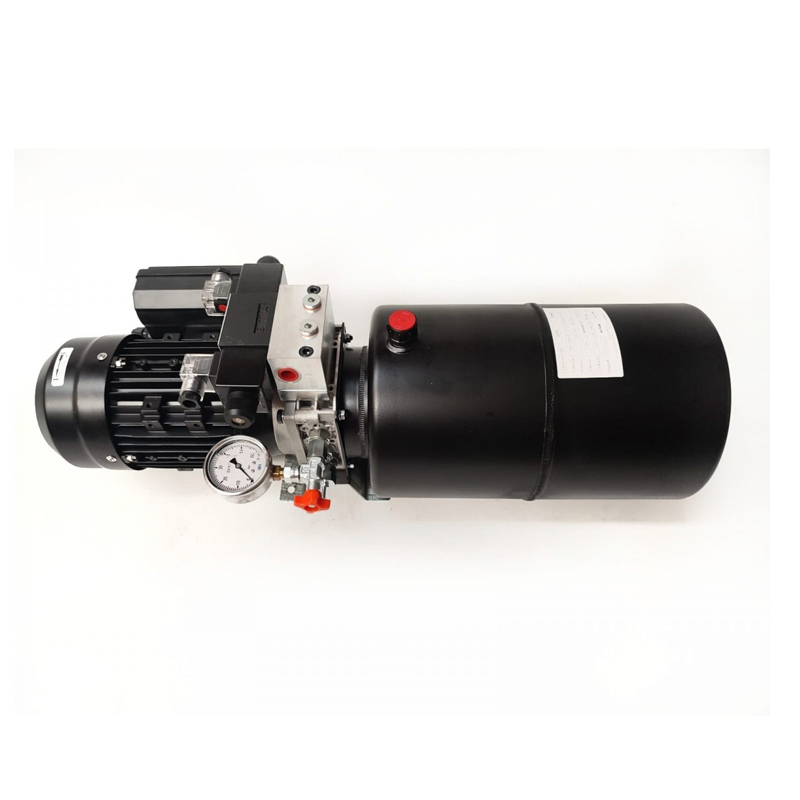

compact-hydraulic-power-unit-for-medical-equipment
