Custom Pallet Racking
Diamond-punch upright racking (commonly called diamond-hole racking) features uprights with diamond-shaped perforations for beam connection. It provides high structural strength, flexible shelf adjustment and fast installation - an economical choice for industrial pallet storage.
Key Features
1.Robust Uprights: Cold-formed steel with diamond-punch holes for secure beam locking.
2.Flexible Adjustment: Beam pitch typically 50 mm for fine height adjustment.
3.High Load Capacity: Suitable for heavy pallet loads and multi-tier racking.
4.Surface Finish: Powder coated or hot-dip galvanised for corrosion resistance (suitable for cold stores).
5.Fast Assembly: Simple slot-in beam connection reduces installation time.

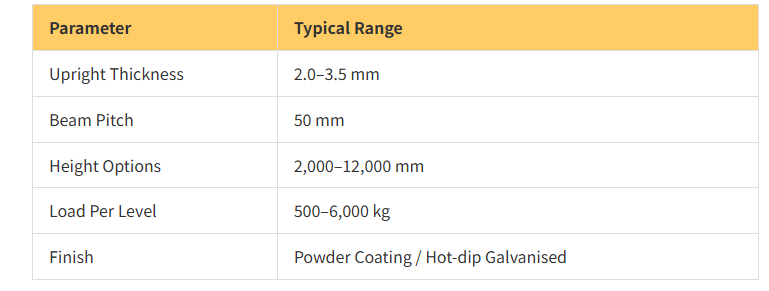

Typical Specifications (Example)
Applications
Diamond-punch racking suits distribution centres, manufacturing warehouses, retail distribution and refrigerated storage where:
·High load capacity and reliability are required
·Frequent re-adjustment of shelf heights is expected
·Cost-effective, fast installation is preferred
Advantages Over Other Upright Types
·Stronger connection than simple slotted uprights for heavy loads.
·Easier beam locking and replacement compared to welded systems.
·Good compatibility with standard European pallet sizes and accessories.
