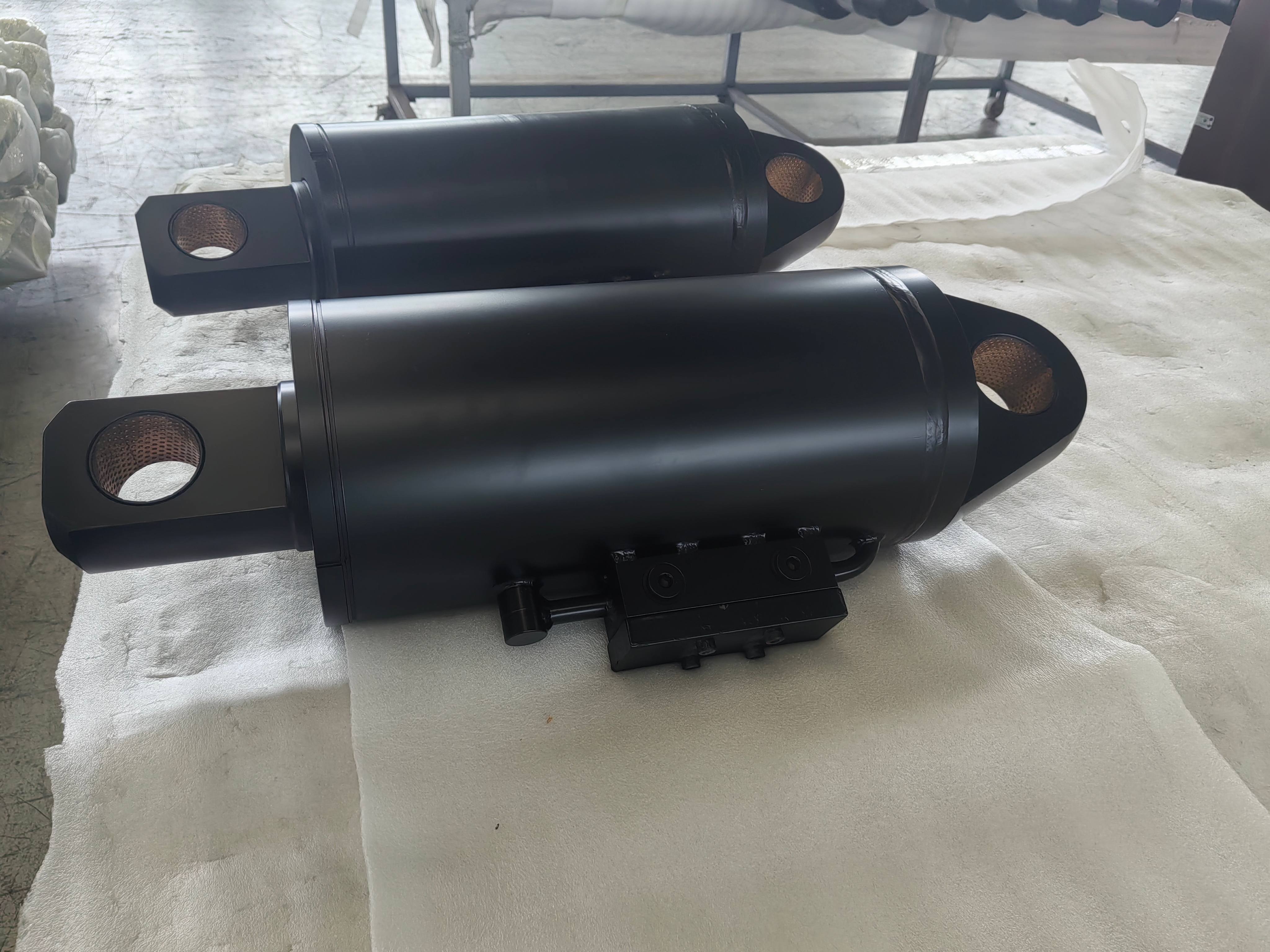

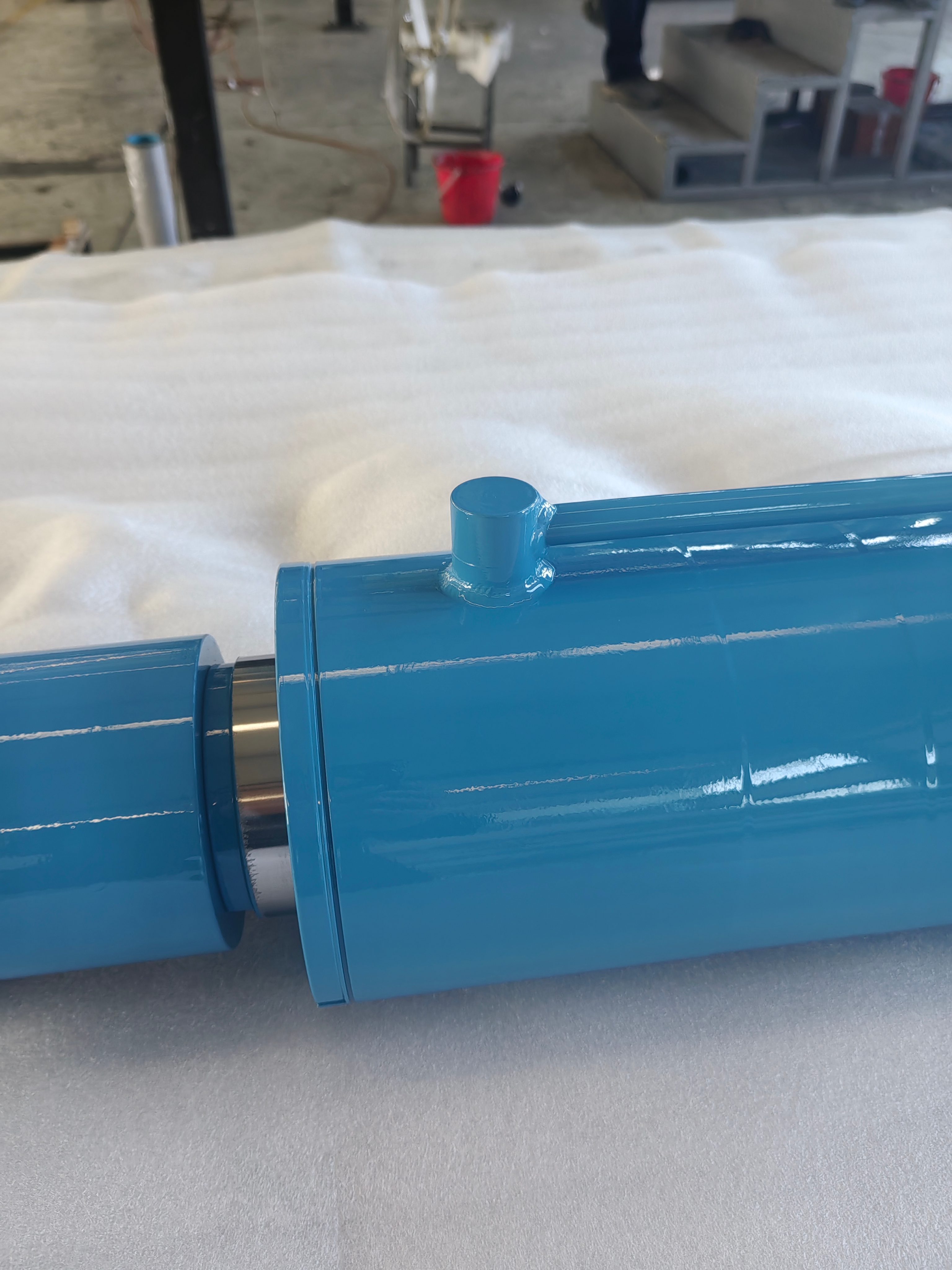

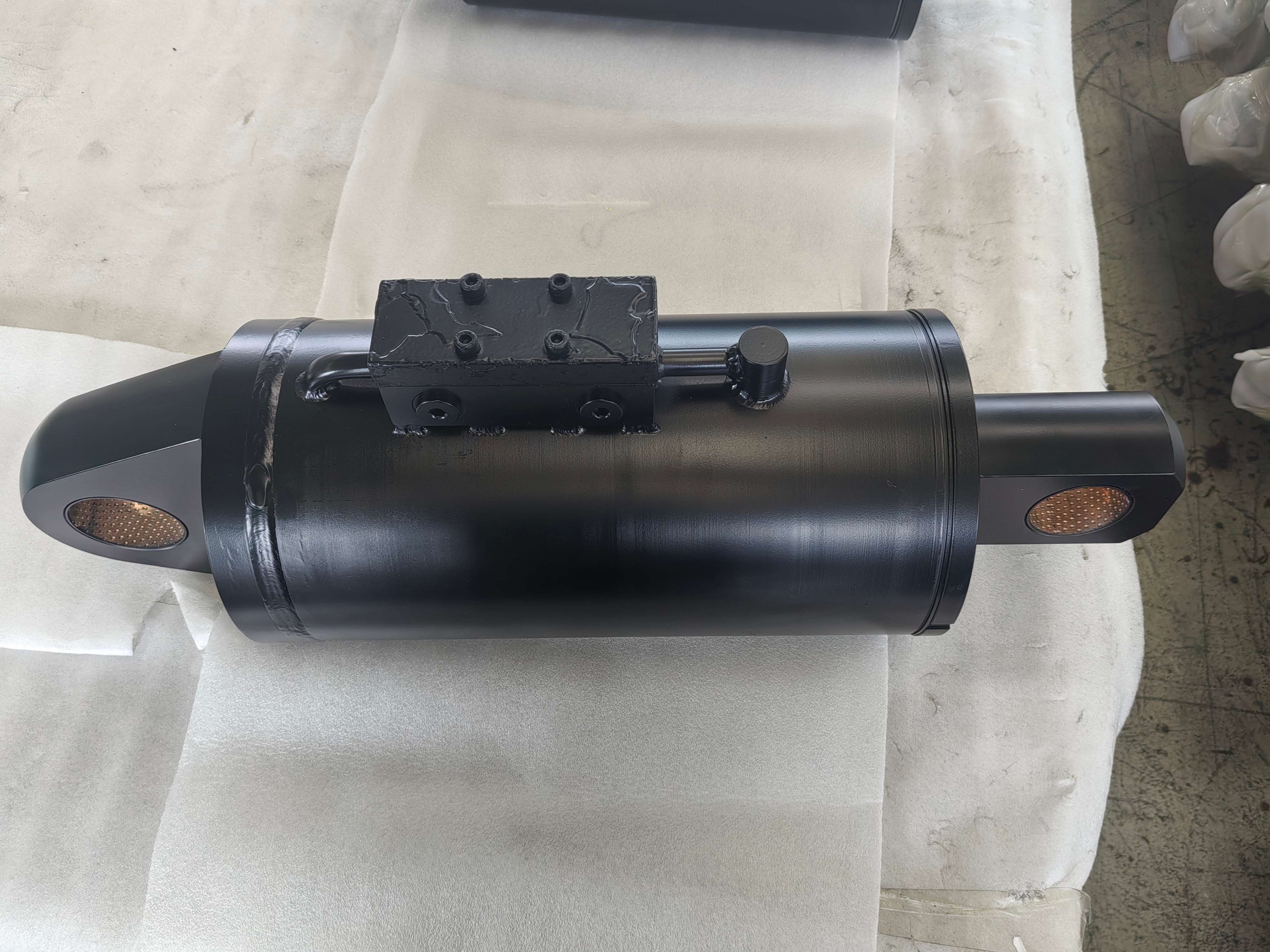

| Params | Bore Diameter Range: 40–320 mm
Rod Diameter Range: 25–220 mm
Stroke Range: 50–2,400 mm as a normal position-sensing range
Working Pressure: Up to 250 bar for the normal range
Cylinder Structure: Welded, threaded-head, tie-rod or heavy-duty mill-type construction
Acting Type: Double Acting
Position Feedback Type: Continuous or discrete position feedback
Continuous Sensor Type: Magnetostrictive linear position transducer, linear displacement transducer or approved equivalent
Discrete Sensor Type: Proximity switch, inductive sensor, reed switch or end-of-stroke switch
Sensor Installation: Internally integrated, cap-end mounted, externally mounted or application-specific arrangement
Measured Stroke: Selected according to the cylinder’s effective working stroke
Position Output: Analog voltage, analog current, SSI, CANbus, PWM, start/stop or customer-specified industrial communication output
Position Resolution: Determined by the selected sensor and control requirements
Position Repeatability: Determined by the selected sensor, mounting and operating conditions
Absolute Position Feedback: Optional
Incremental Position Feedback: Optional
Power-Off Position Retention: Available with suitable absolute-position sensor technology
Connector Type: Industrial plug connector, sealed cable outlet or customer-specified interface
Ingress Protection: Determined by sensor, connector and cable configuration
Bore Diameter: Final size calculated from required force and working pressure
Piston Rod Diameter: Final size determined by load, stroke, buckling and sensor-integration requirements
Stroke Length: Final value manufactured according to the approved drawing
Retracted Length: Customized according to the sensor configuration and installation envelope
Extended Length: Determined by retracted length and effective stroke
Working Pressure: Final value determined by the equipment hydraulic system
Maximum System Pressure: Must be confirmed before engineering approval
Proof-Test Pressure: Defined in the approved inspection and testing plan
Rated Push Force: Calculated from piston area and specified working pressure
Rated Pull Force: Calculated from annular piston area and specified working pressure
Operating Speed: Selected according to hydraulic flow, sensor response and equipment control requirements
Duty Cycle: Intermittent, repeated-duty or continuous automated operation
Hydraulic Medium: Mineral-based hydraulic oil or approved compatible fluid
Recommended Operating Temperature: -20°C to +80°C for the initial public range, subject to seal and sensor selection
Extended Temperature Design: Available after engineering review using compatible seals, cables, connectors and sensors
Hydraulic Ports: SAE ORB, NPT, BSPP, metric thread, SAE flange or customer-specified connection
Mounting Style: Clevis, pin-eye, cross-tube, trunnion, flange, spherical bearing or custom mounting
End-of-Stroke Cushioning: Optional head-end, cap-end or dual-end cushioning

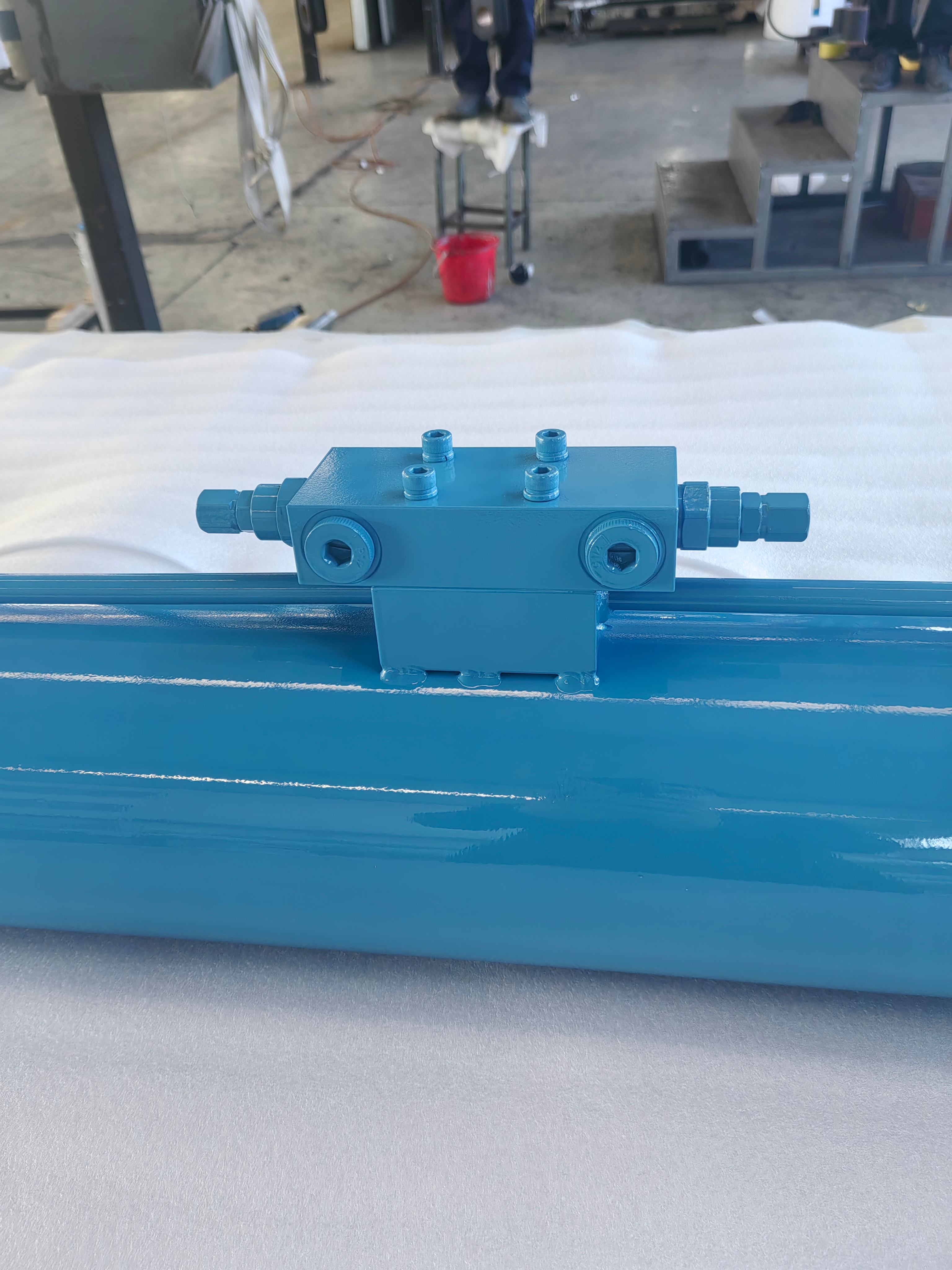

Load-Holding Protection: Optional counterbalance valve, pilot-operated check valve or hose-burst valve
Manual Sensor Calibration: Available depending on sensor type
Controller Compatibility: Must be confirmed from the customer’s PLC, ECU or motion controller
EMC Requirement: Confirm according to the target equipment and applicable electrical standard
Testing: Pressure, leakage, full-stroke, sensor-output and signal-repeatability testing
Documentation: Approved drawing, sensor datasheet, wiring diagram, inspection record and test report available | Material | Cylinder Barrel: Precision-honed seamless steel tube or application-specific cylinder tube
Piston Rod: High-strength steel with hard-chrome-plated or application-specific treated surface
Piston: High-strength carbon steel or alloy steel designed for sensor integration
Cylinder Head / Gland: High-strength machined steel, alloy steel or ductile iron
Sensor Housing: Stainless steel or corrosion-resistant engineering material
Sensor Rod / Waveguide Housing: Material specified by the selected sensor manufacturer
Cylinder Base: High-strength machined or forged steel with sensor-mounting provision
Mounting Components: High-strength carbon steel or alloy steel
Bushings: Bronze, steel-backed composite or hardened steel bushing
Wear Rings: Reinforced low-friction polymer or composite bearing material
Primary Seals: Polyurethane, PTFE composite or application-specific sealing system
Static Seals: NBR, FKM or temperature-specific elastomer
Rod Wiper: Polyurethane, metal-cased scraper o |
