DCL DC Link Choke for EV Charging and Renewable Energy Inverters

Quantity:
SKU: 2629891100
Model: CKSG, DCL, ACL, EMC

{{ variable.name }}

{{ value.name }}

DCL DC Link Choke

Enhance power conversion efficiency and stability in DC link circuits for EV charging and renewable energy systems.

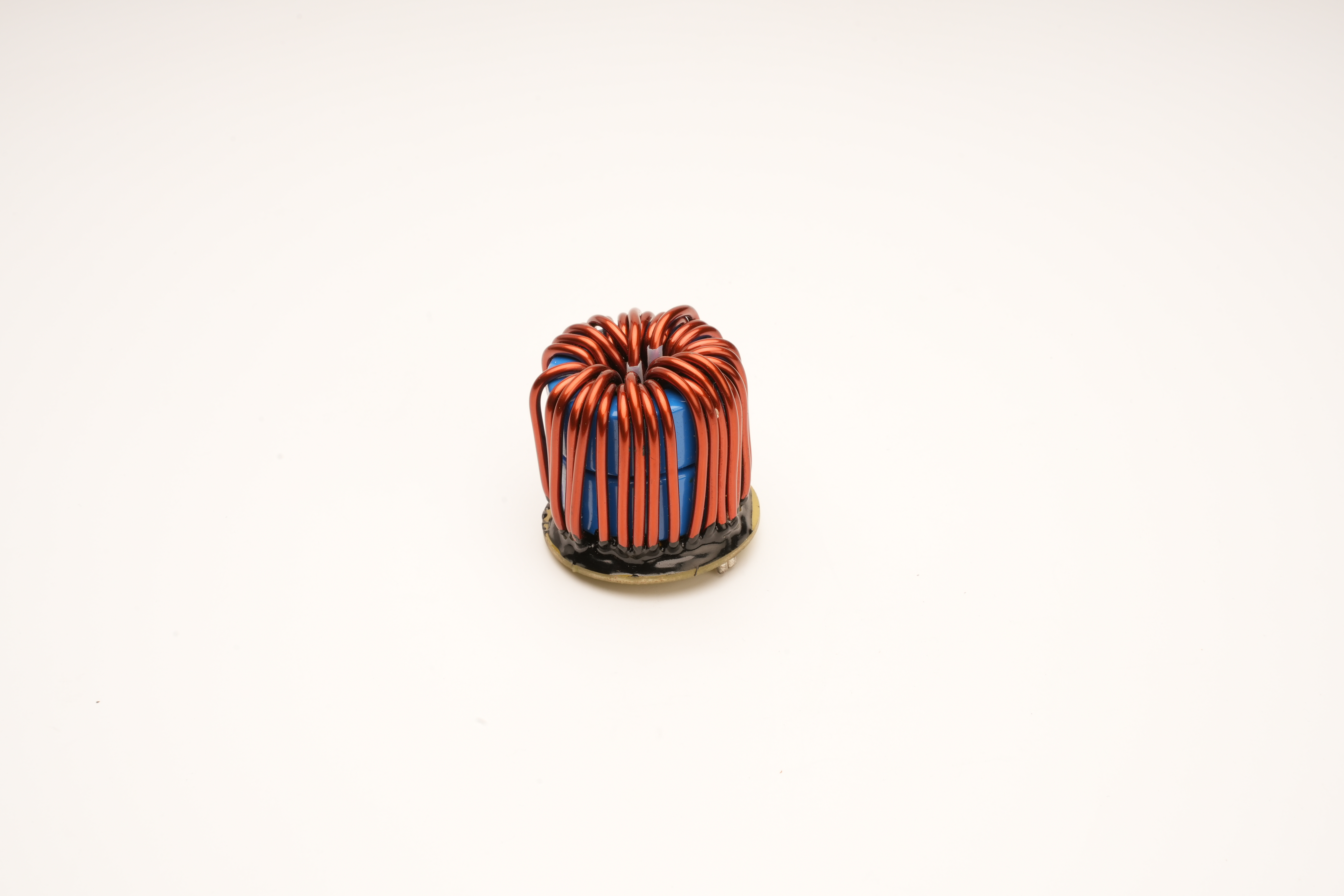

DCL DC link choke

Key Selling Points

  • High current capability: Supports up to 1000A, suitable for heavy-duty EV charging stations.
  • Wide inductance range: 1μH to 100mH allows fine-tuning of DC link performance.
  • Thermal management: Natural air cooling with insulation classes B, F, H to handle high temperatures.
  • Robust construction: Ferrite or silicon steel core, copper/aluminum winding, epoxy/plastic housing.
  • Flexible mounting: IP00 or IP20 protection for panel or chassis mount.
  • Quality assured: ISO9001 certified manufacturing process.

Technical Specifications

ParameterRange/Value
Inductance1μH - 100mH
Rated Current1A - 1000A
Rated Voltage0.4kV, 6kV, 10kV
Frequency50Hz/60Hz
Insulation ClassB, F, H
CoolingNatural Air Cooling
Protection ClassIP00, IP20

Models and Options

DCL series offers various core and winding materials to suit different current and inductance requirements. Options for insulation class and protection rating available.

Materials and Structure

Core: Ferrite or cold-rolled silicon steel. Winding: Copper or aluminum. Housing: Epoxy resin or plastic. Design optimized for low core loss and high magnetic permeability.

Applications

  • EV charging stations
  • Solar and wind inverters
  • Power electronics
  • Industrial automation
  • Telecommunications
  • Medical equipment

Customization

We provide custom design services for inductance, current, and voltage ratings to match your specific DC link requirements.

FAQ

What is the typical lead time?

30 working days for standard items.

Can you provide samples for testing?

Yes, samples are available after specification confirmation.

What is the MOQ?

MOQ depends on model; please inquire.

Do you offer custom inductance values?

Absolutely, custom inductance is our strength.

How do you ensure product quality?

We have ISO9001 and conduct 100% inspection before delivery.

What are the available protection classes?

IP00 and IP20 are standard options.

Can we get technical consultation?

Yes, our engineers are available for consultation.

Inquiry Information

Contact us at lucien@yadootek.com or WhatsApp +86 17768348101. More info: www.yadootek.com
