DOCOD S300plus Continuous Inkjet Printer for Food & Beverage Coding
Model: DOCOD S300plus Series | Small Character CIJ Printer
Product Summary
The DOCOD S300plus is a small character continuous inkjet printer engineered for high-speed date coding, batch marking, and traceability printing on food and beverage packaging. It supports up to 5 printing lines with a maximum speed of 384 m/min, and prints on flexible pouches, cartons, PET, and glass bottles. With food-grade ink options and IP65 protection, it suits continuous production lines in humid, hot, or cold-chain environments.
Key Selling Points
High-Speed Printing: Up to 384 m/min (5 dots in 1 line, 0.5 dot spacing) ensures continuous inline coding without bottleneck.
Multiple Inks for Food Safety: Food-grade, high-adhesion, and migration-resistant inks meet packaging requirements.
Versatile Content: Prints text, expiry dates, batch numbers, dynamic barcodes/QR, and serial data for traceability.
Durable Construction: SUS 304 stainless steel housing with IP65 rating withstands washdowns and harsh lines.
Easy Operation: 10.1-inch color touchscreen with embedded Linux for intuitive controls and multi-language support (40+).
Technical Specifications
Printhead Duct
3 m / 6 m
Nozzle Specifications
60µ
Printing Distance
2-16 mm
Printing Height
3-30 mm
Printing Lines
1-5 lines
Max. Printing Speed
384 m/min
Counter
24 independent counters
Ink Colors
Black, red, blue, yellow, invisible
Display
10.1-inch color touchscreen
Protection Level
IP65
Material
SUS 304 stainless steel
Machine Dimensions
384.5 × 394.28 × 552.72 mm
Working Environment
0-45°C, 30-70%Rh
Certificates
CE, RoHS, BIS
Net Weight
19 kg
Models and Options
DOCOD S300plus Series is available with printhead duct options of 3m or 6m. Various ink types (food grade, high adhesion, migration resistance, high temperature resistance, special for glass, permeability, oil resistance) can be selected based on packaging material and production environment.
Materials and Structure

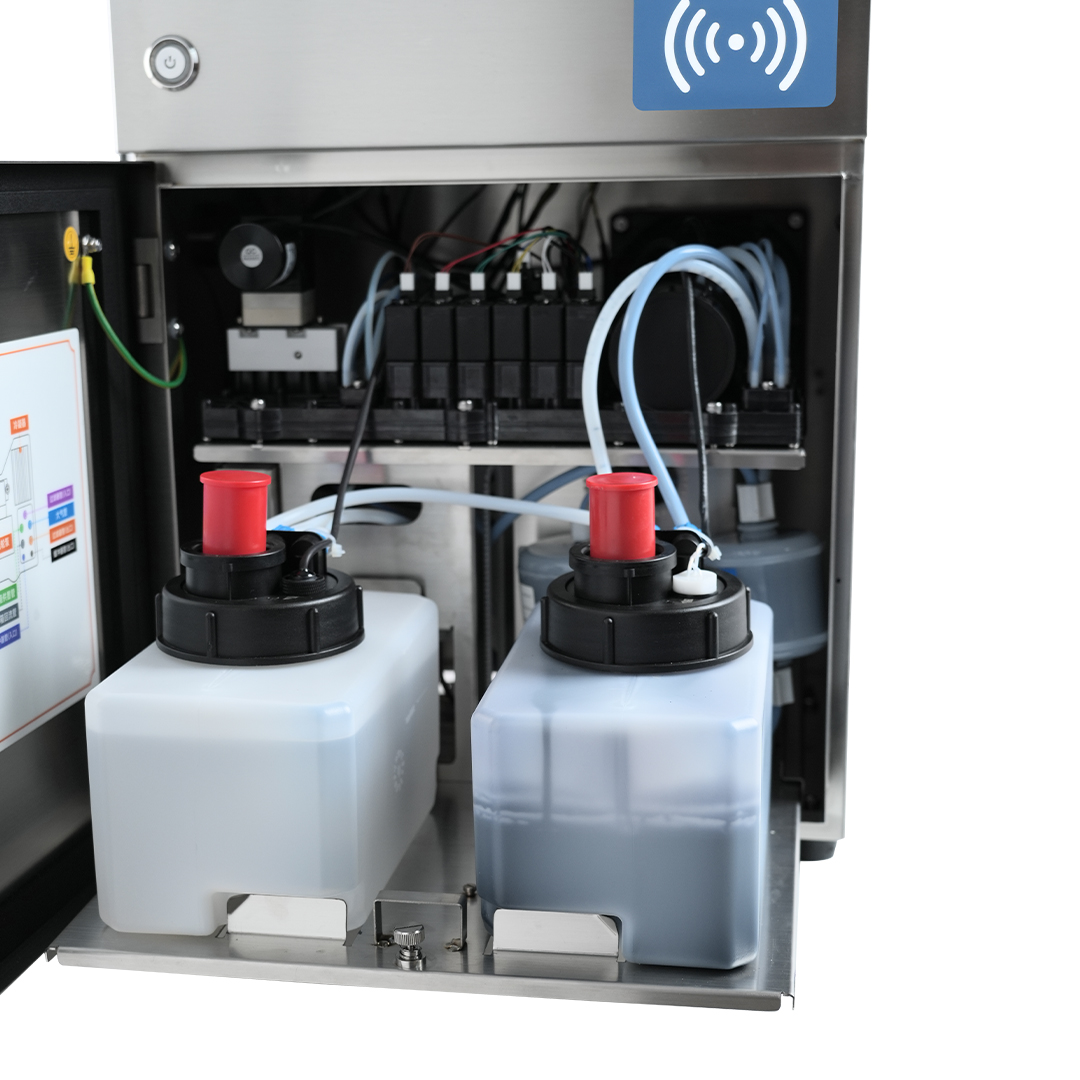

The printer features a SUS 304 stainless steel cabinet, ensuring corrosion resistance and durability in food processing environments. Internal components are organized with a modular design, including a separate ink bottle compartment and accessible control board, facilitating maintenance and reducing downtime.
Applications
Ideal for coding production dates, expiry dates, batch numbers, and QR codes on food and beverage packaging such as flexible pouches, cartons, PET bottles, and glass bottles. Also suitable for pharmaceutical, chemical, cosmetics, building materials, wire/cable, automotive parts, and industrial packaging lines.
Customization
Customizable print content (text, logo, shift, SN, dynamic barcode/QR, serial data, database) and additional interfaces (photocell, encoder, alarm light, information control) are available. MOQ for a customized order is 1 unit, with FOB/CIF/CFR/EXW delivery and T/T 30/70 or LC payment.
Case Study: Vietnam Food & Beverage Packaging Date and Batch Coding
In a new production line coding project for a Vietnamese food & beverage manufacturer, the S300plus was integrated to print production dates, expiry dates, batch numbers, and QR codes across multi-material packaging (flexible pouches, cartons, PET, glass). The line operates in varying conditions (cold-chain, humid, hot, dry), and the printer's IP65 rating and food-grade inks ensured reliable, traceable coding. Integration with PLC/MES and code inspection modules enabled automated quality control and reduced labeling errors.
Frequently Asked Questions
What is the maximum printing speed?
The maximum printing speed is 384 m/min (5 dots in 1 line, 0.5 dot spacing), suitable for high-speed production lines.
Can it print on different food packaging materials?
Yes, it prints on carton, plastic, flexible pouches, PET, glass, and metal, with specific ink types for adhesion and resistance.
What certifications does it have?
It holds CE, RoHS, and BIS certificates, meeting international standards.
Is it suitable for humid environments?
Yes, with IP65 protection, it withstands humidity and washdowns in food processing areas.
Can it print dynamic barcodes and QR codes?
Yes, it prints dynamic barcodes/QR codes and serial data, ideal for traceability.
What is the minimum order quantity?
MOQ is 1 customized order or 1 unit, depending on configuration.
How many languages does the interface support?
It supports more than 40 languages, facilitating global operation.
Inquiry Information
For pricing, customization, and technical support, contact DOCOD Precision Group: Email sales@docod.com.cn, Tel +86 139-2896-7650, WhatsApp +86 135-1234-4323.
Product Images

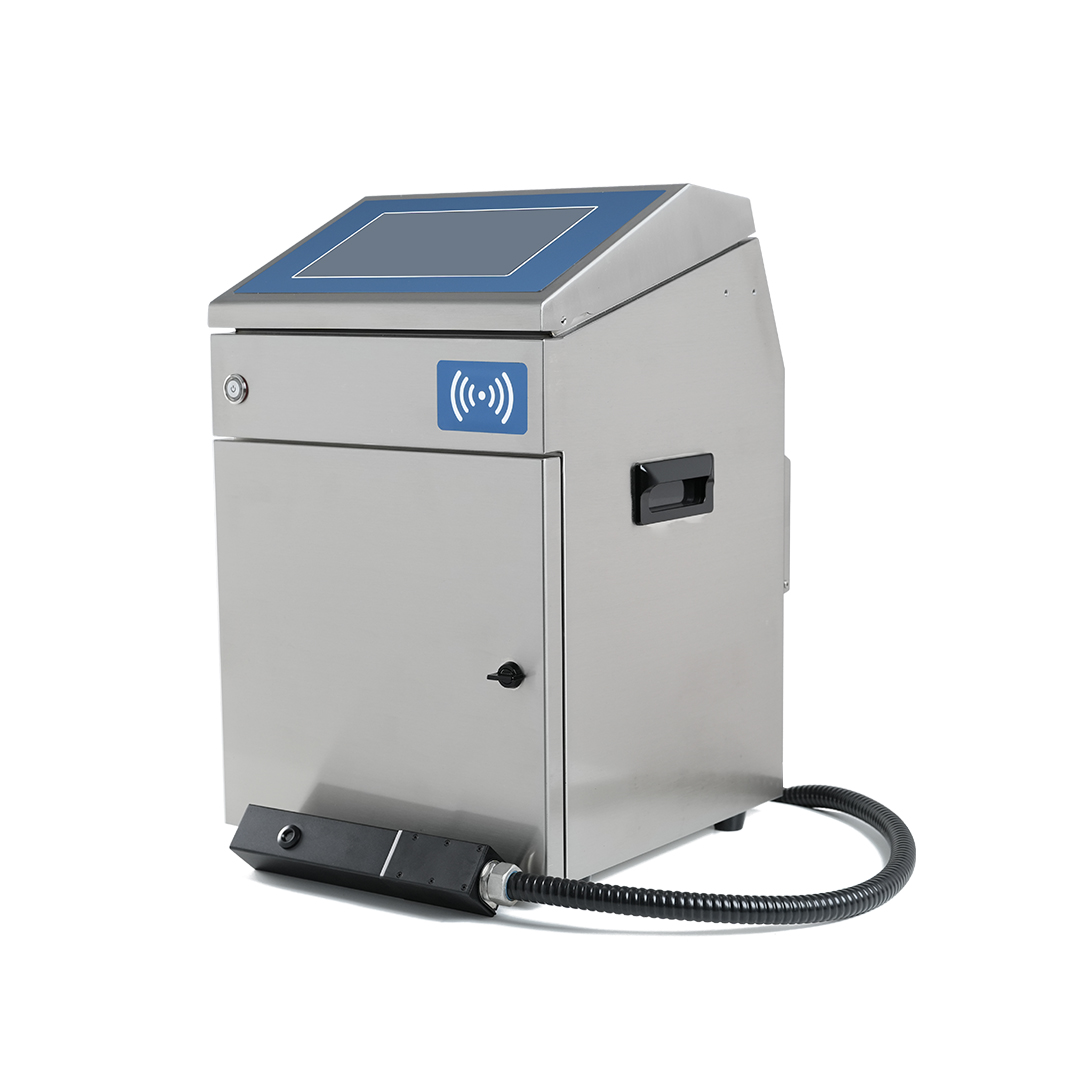

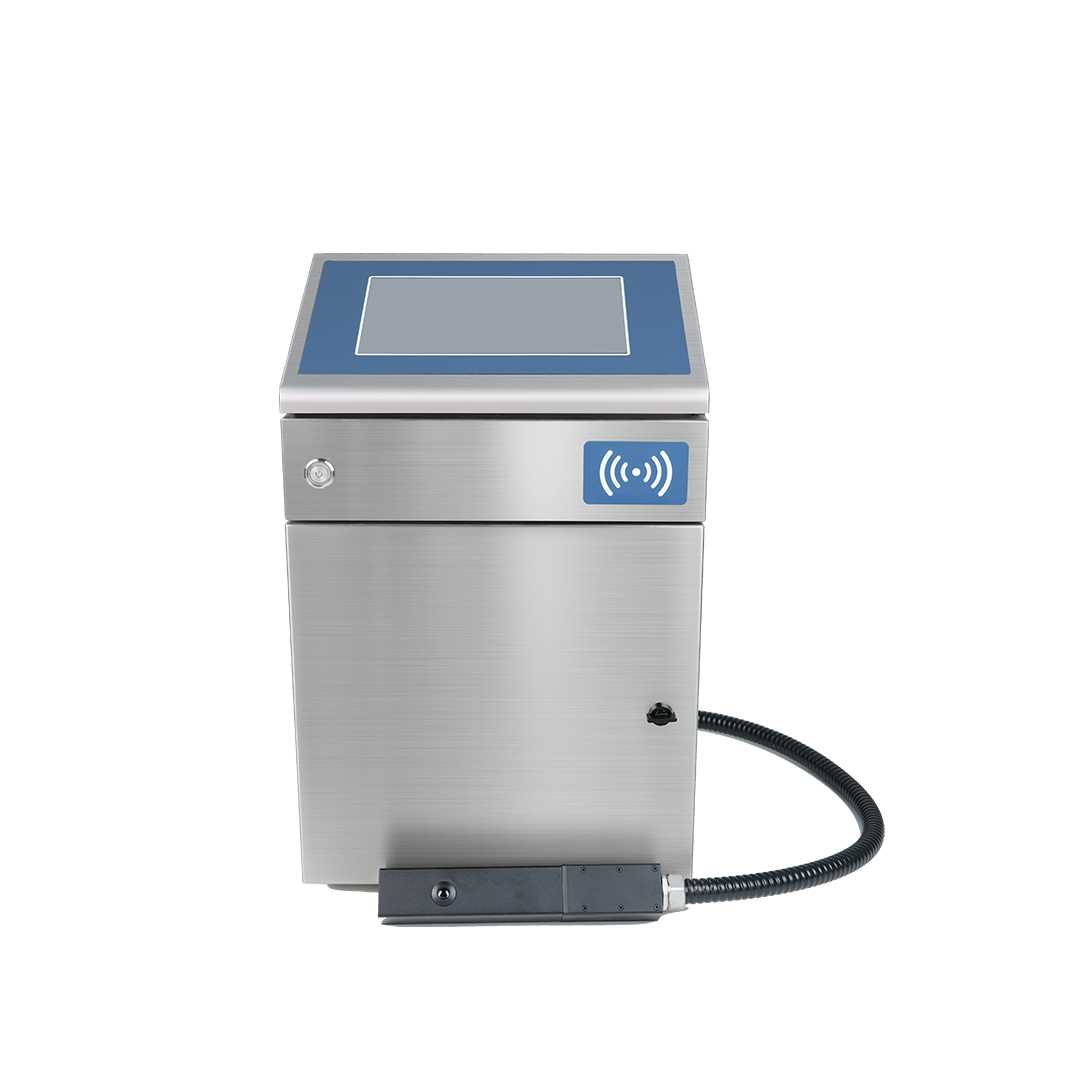

Main unitControl interfaceInk systemInternal layout
