DOCOD T260E Half-Inch Dual-Head Thermal Inkjet Printer
High-resolution coding for cartons, plastics, and food packaging at up to 60 m/min
Product Overview
The DOCOD T260E is an industrial thermal inkjet printer designed for inline coding on a wide range of substrates. With dual-head capability and RFID cartridge management, it supports variable data printing including QR codes, barcodes, and serialized traceability codes. Built with an aerospace-grade aluminum body and embedded Linux, it delivers reliable performance in demanding production environments.
Key Selling Points
- High Resolution Printing: Up to 300×300 DPI ensures clear, scannable codes suitable for GS1 and anti-counterfeiting applications.
- Dual-Head Flexibility: Optional dual printheads can be spliced for wider codes or used separately for multiple lines, increasing productivity.
- Versatile Ink Options: Supports black, white, red, yellow, blue, green, invisible, and UV inks, with food-grade and solvent-based cartridges for various substrates.
- RFID Smart Cartridges: Non-contact chip automatically identifies ink parameters and records remaining amount, reducing downtime and waste.
- Rugged Construction: Aerospace-grade aluminum body withstands harsh factory conditions, ensuring long-term stability.
- Global Language Support: Interface supports over 40 languages for easy integration into international production lines.
Technical Specifications
| Parameter | Value |
|---|
| Print Resolution | Up to 300 × 300 DPI |
| Number of Printheads | 1 or 2 (optional) |
| Print Height | 1-12.7 mm / 1-25.4 mm (single/dual head) |
| Print Speed | Up to 60 m/min |
| Cartridge Chip | RFID non-contact chip |
| Ink Colors | Black, white, red, yellow, blue, green, invisible, UV |
| Ink Types | 42 ml food grade, water-based, oil-based, weak solvent, solvent ink cartridge, large-capacity continuous ink supply |
| Printing Content | Multi-language text, GS1 code, QR codes, barcodes, graphics, serial numbers, dates, counters, variable databases, anti-counterfeiting and traceability codes |
| Printing Materials | Cartons, plastics, metals, plates, pipes, stones, wires/cables, electronic components, auto parts, industrial chemical packaging, pharmaceutical packaging, food packaging, gift packaging |
| Operating System | Embedded Linux |
| Data Interfaces | USB, RS232, TCP/IP net port |
| External Interfaces | Optical sensor, encoder, alarm light |

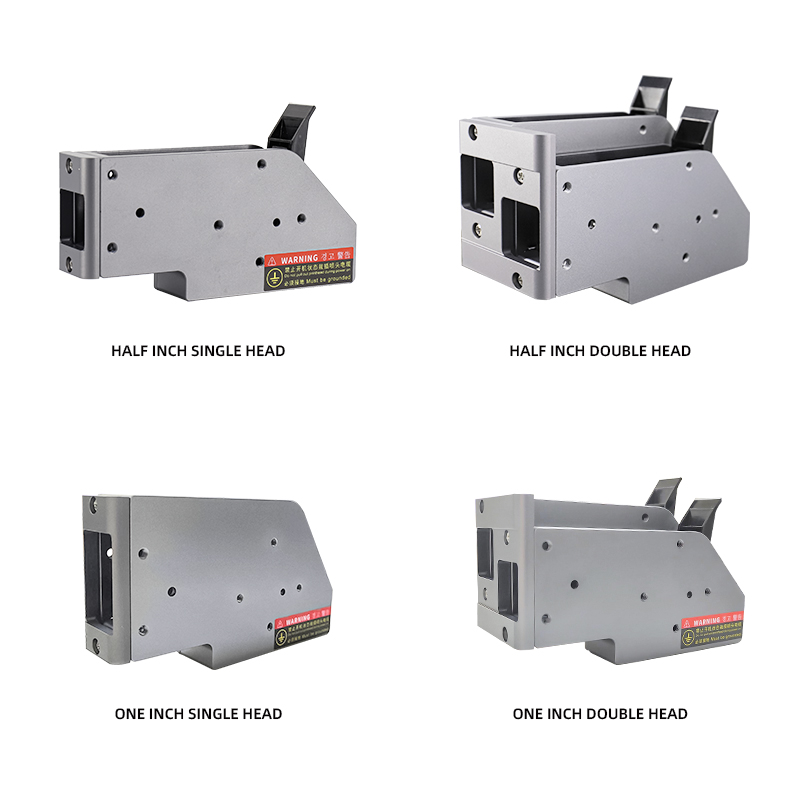

| Printhead Installation | Separate printhead; optional dual printheads can be spliced or used separately |
| Machine Material | Industrial grade standard protective body (aerospace grade aluminum) |
| Working Environment | Temperature 0-45°C / Humidity 30-70%Rh |
| Main Hardware | Cortex-A7 1.2GHz dual-core processor, FPGA algorithm acceleration chipset |
| Machine Specifications | Controller 206×118×32.6 mm; printhead 127.5×54.5×72 mm |
| Display | 7-inch industrial-grade touch screen |
| Support Language | Supports more than 40 national and regional languages |
Models and Options
The T260E is available in single-head (1 printhead) or dual-head (2 printheads) configurations. Dual-head models allow splicing to achieve wider print heights up to 25.4 mm or printing on two separate lines simultaneously. Optional accessories include large-capacity ink supply system, external sensors, and encoders for integration into existing lines.
Materials and Structure

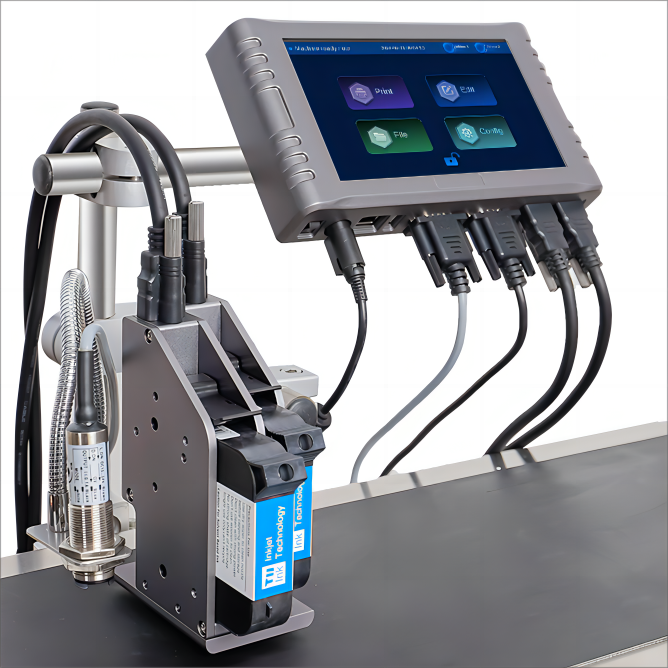

The printer body is made of industrial-grade protective material with aerospace-grade aluminum, offering robustness and light weight. The separate printhead design allows flexible mounting in confined spaces. The 7-inch touch screen provides intuitive operation.
Applications
Ideal for electronic components, cosmetics and personal care, building materials, automotive parts, aviation parts, wire and cable, pipe manufacturing, food packaging, beverage packaging, pharmaceutical and healthcare packaging, and industrial production lines requiring variable data printing, anti-counterfeiting and traceability coding.
Customization
DOCOD offers customization for specific production line needs, including printhead mounting brackets, encoder integration, and special ink configurations. Contact us for technical drawing confirmation, sample approval, and pre-shipment inspection.
Case Study
Tobacco Packaging Traceability in Turkey
DOCOD T260E was deployed in a high-speed cigarette packaging line for serialized tobacco coding. The system prints batch codes, tax-control codes, DotCode/DataMatrix, QR codes, and supply-chain traceability codes for anti-counterfeiting and regulatory tracking. Operating in dusty and space-limited conditions, it achieved stable coding and scanning at high throughput.
FAQ
What is the maximum print speed of the T260E?
The T260E can print at speeds up to 60 m/min, depending on the resolution and content complexity.
Can the dual-head model print on two separate lines?
Yes, the optional dual printheads can be used independently on two different lines or spliced to print wider codes up to 25.4 mm.
What types of inks are compatible?
The printer supports black, white, red, yellow, blue, green, invisible, and UV inks. Cartridge types include 42 ml food grade, water-based, oil-based, weak solvent, solvent, and large-capacity continuous ink supply.
Is the printer suitable for food packaging?
Yes, the T260E can be used with food-grade ink (42 ml) and is suitable for food packaging, ensuring compliance with food safety standards.
What interfaces does the printer have for integration?
It includes USB, RS232, TCP/IP net port, optical sensor, encoder, and alarm light interfaces for seamless integration into production lines.
How does the RFID cartridge system work?
Each cartridge has an RFID chip that automatically identifies ink parameters and records the remaining ink amount, enabling proactive maintenance and reducing waste.
What languages does the interface support?
The touch screen interface supports more than 40 national and regional languages, making it easy to use for international teams.
