BPA-Free Internal Sulfur-Resistant Aluminum Paste Coated Tin Free Steel (TFS) for 2-Piece DRD Fish Cans
Model: DR9 Double Reduced | Temper: DR9 | Thickness: 0.14–0.16mm
Product Summary
This DR9 Double Reduced TFS coil is engineered for 2-piece DRD fish can production. The BPA-free internal coating with aluminum pigment provides superior anti-sulfur and anti-staining properties, making it ideal for tuna and sardine packaging. High-strength double reduction allows thinner gauges without sacrificing rigidity.
Key Features
- ✔ Anti-Sulfur & Anti-Staining: Aluminum pigment lacquer prevents sulfur staining even after retort.
- ✔ BPA-Free Food-Grade: Internal coating is BPA-free, safe for direct food contact.
- ✔ Deep Drawable: DRD grade without cracking or peeling.
- ✔ Retort Resistant: Withstands 121°C sterilization for 60-90 minutes.
- ✔ Chemical Resistance: Superior oil and brine resistance.
- ✔ High Strength: DR9 temper provides high strength for thin-wall cans.
Technical Specifications
| Parameter | Value |
|---|
| Thickness | 0.14 / 0.15 / 0.155 / 0.16 mm |
| Width | 750 – 1000 mm |
| Temper | DR9 |
| Internal Coating | BPA-Free Aluminum Pigment Lacquer |
| Coating Weight | 8 – 12 g/m² (customizable) |
| Formability | DRD (Draw and Redraw) without cracking |
| Retort Resistance | 121°C, 60–90 min |
Models and Options
Temper options: DR8, DR9, DR10. Available thicknesses: 0.14, 0.15, 0.155, 0.16 mm. Widths from 750 to 1000 mm. Custom coating weights available on request.
Materials and Structure
Tin Free Steel (TFS/ECCS) base with double-reduced high-strength structure. Internal coating is a food-grade aluminum pigment lacquer, BPA-free.
Applications
Specifically for 2-piece DRD fish cans, ideal for tuna, sardines, salmon packaging. Suitable for seafood canning industry.
Customization
Coating weight can be customized (heavier upon request). Width, thickness options available. Contact us for specific requirements.
FAQ
Q1: What is the coating weight range?
A1: Standard coating weight is 8-12 g/m², but heavier coating can be customized.
Q2: Can this TFS withstand high temperature sterilization?
A2: Yes, it resists 121°C (250°F) for 60-90 minutes without discoloration.
Q3: Is the internal coating BPA-free?
A3: Yes, we use BPA-free aluminum pigment lacquer.
Q4: What thicknesses are available?
A4: Available thicknesses are 0.14, 0.15, 0.155, and 0.16 mm.
Q5: What temper options do you have?
A5: We offer DR8, DR9, and DR10 tempers.
Q6: Is this suitable for tuna cans?
A6: Yes, it is specifically designed for fish canning like tuna and sardines.
Q7: Do you provide samples?
A7: Please contact us for sample availability.
Q8: What is the MOQ?
A8: MOQ is 2 tons or as per sizes.
Inquiry Information
MOQ: 2 tons or as per sizes
Payment Terms: T/T, L/C at sight
Delivery: FOB, CFR, CIF, DDP, DDU by ocean or air
Certifications: BV ISO9001:2015, RoHS compliant
Contact: info@youngsonmetal.com | WhatsApp: +86-13594107385
TFS coil for 2-piece DRD fish cans

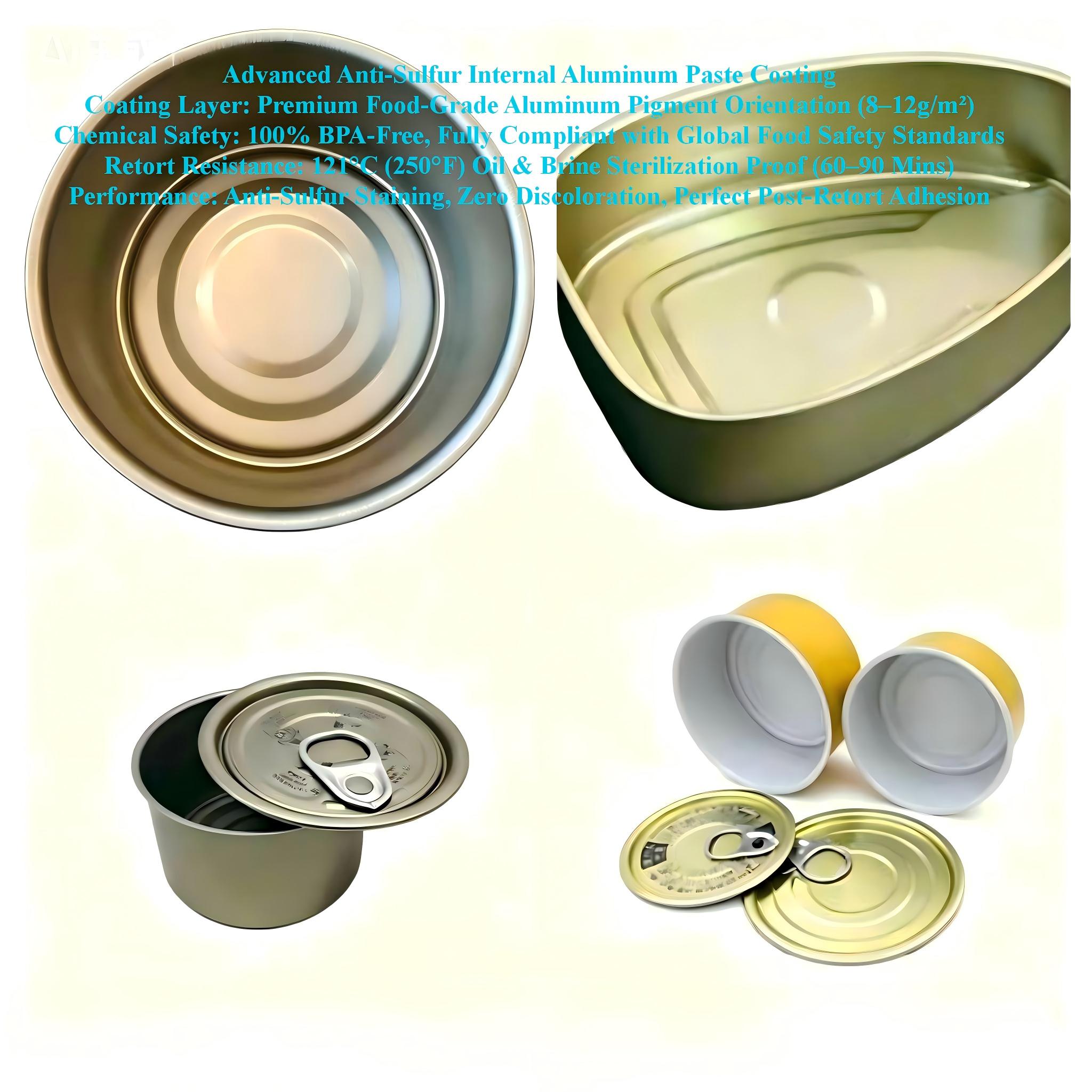

Close-up of anti-sulfur internal coating
