Dissolved Air Flotation

Quantity:
SKU: 9761299007
Model: Dissolved Air Flotation-30

{{ variable.name }}

{{ value.name }}

Product Specification

TypeDissolved Air Flotation-5ModelDissolved Air Flotation-30
ParamsName design reference value remarks model YW-5 quantity 1 set manufacturer Zhongqiao Qidi structural style advection combined air flotation rated processing capacity 5m3/h aeration water reflux ratio ≥30% (typically 40%-50%), head 40-50 meters Component Name construction material remarks main body The system includes secondary stirring reaction zone, contact tank, flotation tank and clear water tank. Dosing area agitator (kw) 380V,0.75kw; 2 units Power of dissolved air pump (KW) 40-200,4kw 1 unit air compressor 380V,1.4kW, Exhaust volume: 0.21m³/min, Exhaust pressure: 0.8MPa, Air storage capacity: 30L 1 unit aeration release device nylon 1 Scraper (KW) 380V,0.75kw 1 unit chain carbon steel + nylon 2 items chain wheel nylon 4 strike-off board SS304 stainless steel + rubber plate 2 block dosage device Dosing tank 500L,380V,0.37kw, 2 unit dosing pump 15.77L/h, two units 6 unit electronic control system PLC Siemens, Schneider ElectricMaterialcarbon steel / SS304
Applicable IndustryAbattoir, printing & dyeing mill, farm and other types of industrial wastewater

Feature

The Dissolved Air Flotation dissolved air flotation machine features excellent removal of suspended solids and oil. Stable operation, fast sludge separation, compact footprint and easy maintenance. Suitable for slaughterhouse, textile dyeing, livestock farm and other industrial wastewater with high oil & SS.

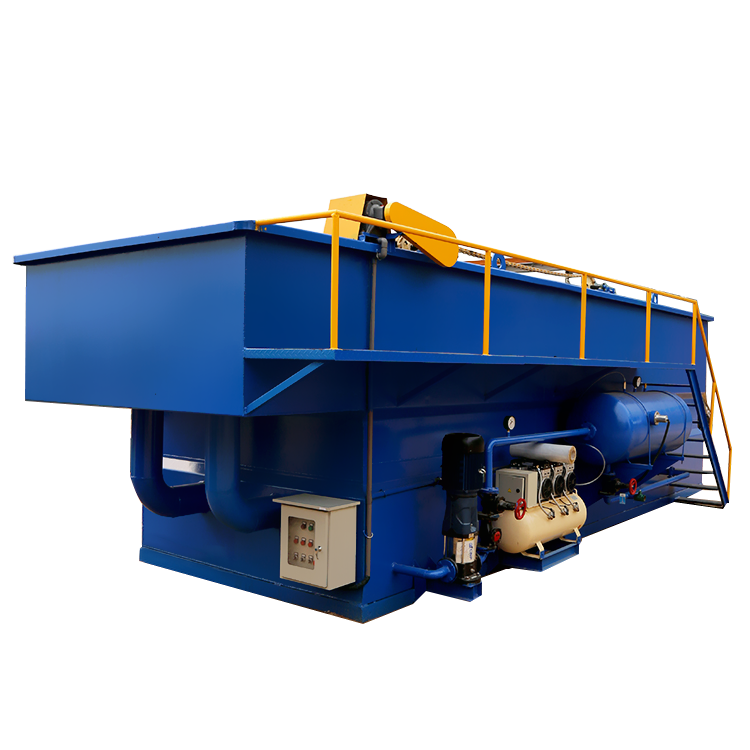

Dissolved Air Flotation-10

Dissolved Air Flotation-10

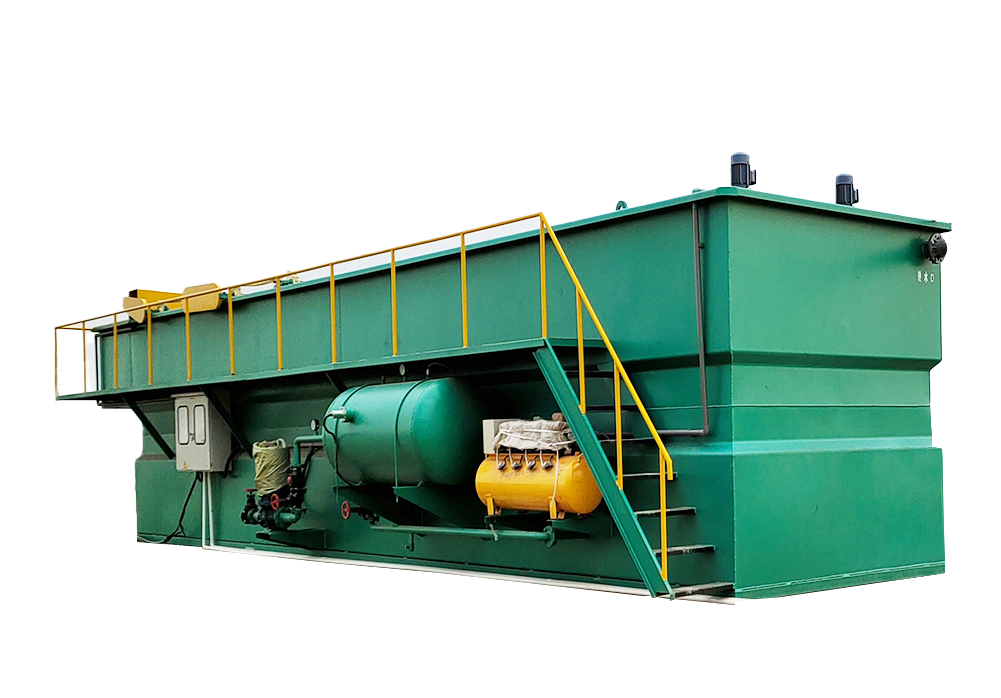

Dissolved Air Flotation-20
