Double Sided Roll Laminator MF1700-F2 with 1630mm Capacity for Advertising

Name: "Double Sided Roll Laminator MF1700-F2 with 1630mm Capacity for Advertising"
Rating: 5 (81 reviews)

Quantity:

SKU: 4054106692

Model: MF1700-F2

MEFU

Enter Shop

Product Details

Double Sided Roll Laminator MF1700-F2

The MF1700-F2 is a professional double sided roll laminator designed for high-efficiency finishing in the advertising and digital printing industries. With a max lamination width of 1630mm and a thickness capacity of 28mm, it handles large-format media with precision. The dual heated system ensures even heat distribution up to 120℃, while the pneumatic up/down mechanism simplifies operation. This machine is built to enhance productivity and protect your prints with professional-grade quality.

Key Selling Points

1630mm Wide Lamination: Accommodates large-format media up to 1630mm, ideal for billboards and posters, reducing process time.
Dual Heated System: Two heating plates ensure even heat up to 120℃, achieving consistent adhesion and clarity.
Pneumatic Lifting: Pneumatic up/down operation simplifies roll loading and adjustment, improving workflow efficiency.
28mm Thickness Capacity: Handles thick materials like PVC and foam boards, expanding application possibilities.
Blade Set with Central Trimmer: Includes 2 single and 1 double central blades for precise trimming during lamination.

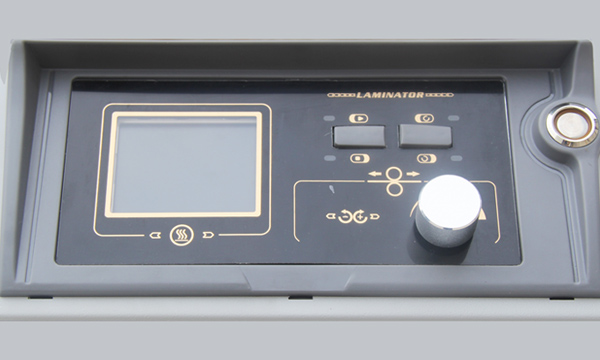

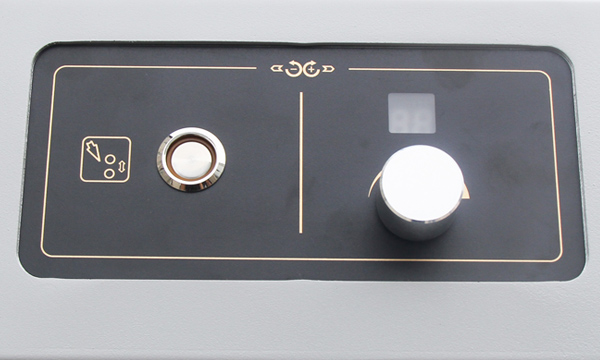

Front and Rear Control Panels: Enhances operator convenience and control from either side of the machine.

Technical Specifications

Parameter	Value
Model	MF1700-F2
Smart System	Entry
Control Panel	Front and Rear
Max Lam Width	1630mm
Max Lam Thickness	28mm / 1.1”
Max Speed	20m/min
Heating	Dual heated
Max Temp	120℃
Up and Down	Pneumatic
Trimmer Holder	2 Single and 1 Double central blades
Power Input	5200W
N.W.	260 KGS

Models and Options

This machine belongs to the MF1700 series, which includes models like MF1700-F1, MF1700-F3, MF1700-F4, MF1700-F5, and others. Optional configurations allow for different lamination widths and features to suit specific production needs.

Note: For detailed availability of model variants, please contact our sales team.

Materials and Structure

Frame: Integrated sheet metal for robustness and stability.
Rollers: Silicone rollers ensure even pressure and durability.
Heating Plate: Aluminum alloy provides efficient heat conduction.
Heating Element: Infrared quartz for rapid and consistent heating.
Cutting Blade: Ungsten steel blades for long-lasting precision.

Applications

Ideal for the advertising and digital printing industries, this laminator is used for finishing vinyl, PP paper, PVC film, photo prints, posters, and other large-format media. It provides surface protection, UV resistance, and enhanced visual clarity.

Customization

Custom configurations are available, including different control panel placements, roller materials, and trimmer setups, to meet specific operational requirements.

Frequently Asked Questions

What materials can this laminator process?

It can process various roll materials like paper, vinyl, PVC film, and foam board up to 28mm thickness.

What is the maximum lamination speed?

The maximum speed is 20 meters per minute.

Does it come with CE certification?

Yes, the MF1700-F2 model is covered under our CE certification for laminators.

Can it do cold lamination?

This model uses dual heated system, focusing on thermal lamination; for cold lamination please inquire about other models.

What is the power requirement?

It requires 5200W power input, suitable for industrial environments.

What is the after-sales support?

We provide pre-shipment testing and technical support. Contact us for detailed after-sales services.

Inquiry Information

For pricing and more details, please contact:

Email: info@mefu.cn

Tel/WhatsApp: +86 15890020566

MOQ: 1 unit | Payment: T/T | Delivery: FOB/CIF/DDP/DDU

Product Images
