Type: Medium & Low Voltage Dry-Type Transformers
Model: SG
Params: Capacity: 10 kVA—30 MVA
Primary Vollage: 4.76 kV, 15 kV , 23 kV, 34.5 kV or other
Secondary Voltage: 208 V - 34.5 kV or other
Insulation Class: B、F、H、C、R
Enclosure Type: NEMA ratings, NEMA 1, NEMA 3R and NEMA 4
Frequency: 50Hz、60Hz
cooling system:AA/FA
Standards:ANSI,IEEE, IEC,NEMA, DOE or regional standards
Certification: UL/cUL、ISO、CE
Material: Copper, Aluminum, Steel
Applicable Industry: VPI transformers are primarily used in medium-voltage and high-voltage power supply applications requiring high insulation reliability, such as power grids, industrial facilities, rail transit, data centers, and new energy projects.
Class 220℃ Insulation 2000kva VPI Transformer 6.9kv To 480V Medium Voltage Dry Type Transformers
1000kva Three Phase Dry Type Vacuum Pressure Impregnated Transformer VPI Class H 13800V

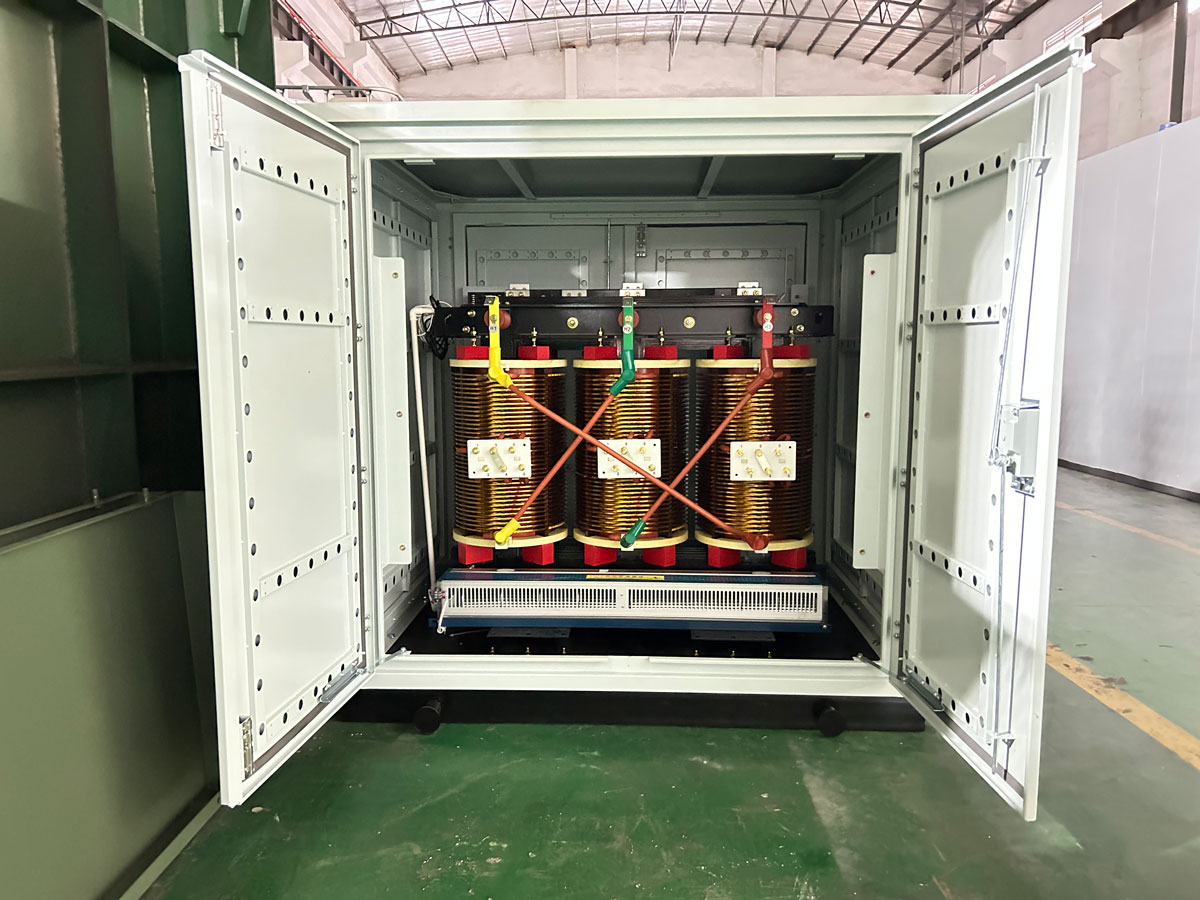

500kva vacuum impregnated VPI dry type transformer Class H 180℃ 4160 V to 208Y DOE Medium Voltage transformer
Dry type cast resin transformer Three phase distribution transformer 2000kva

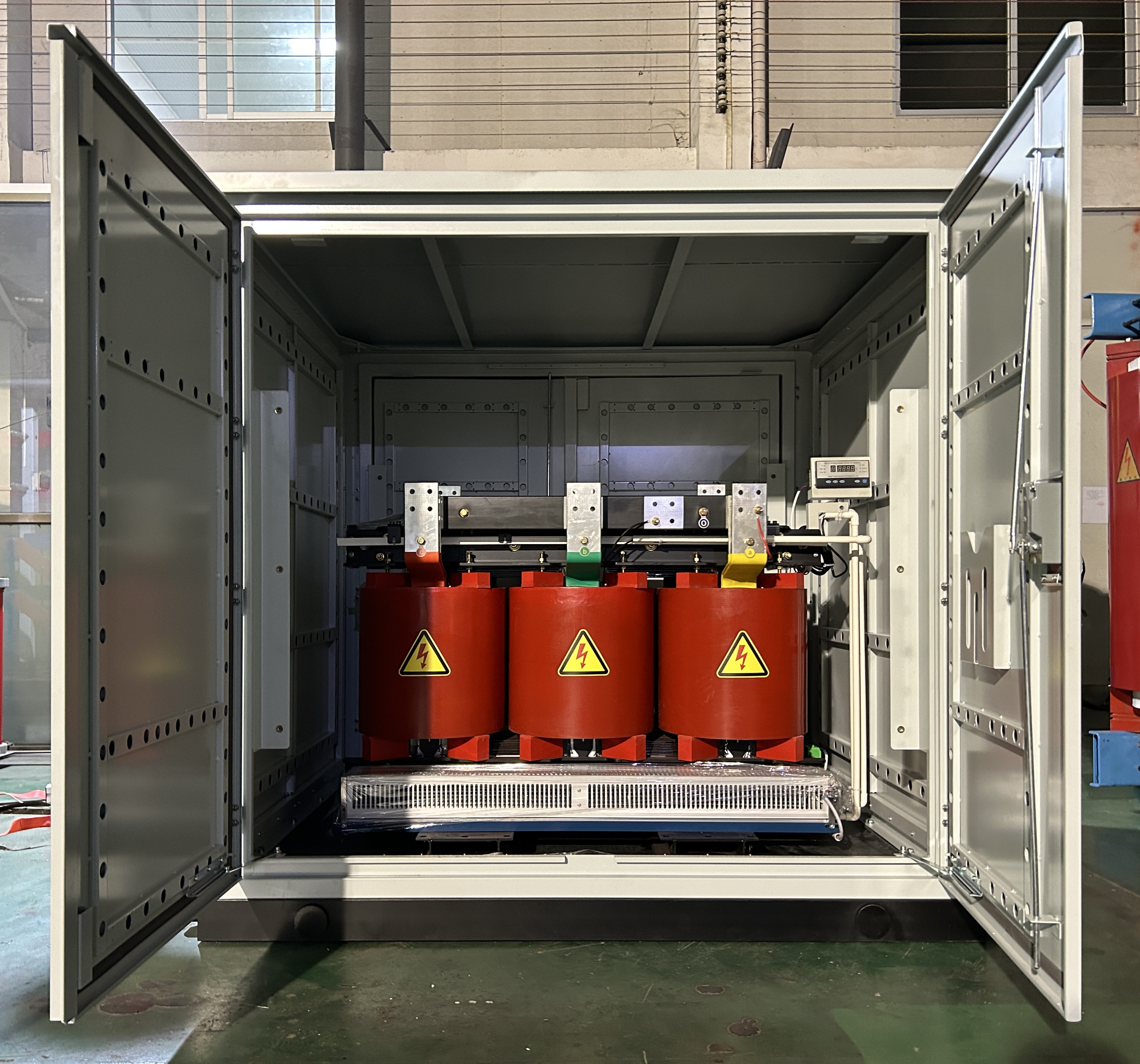

500kVA Cast Coil Dry Type Transformer 12470V to 480Y/277V Three Phase Exposy Resin Transformer for Data Center

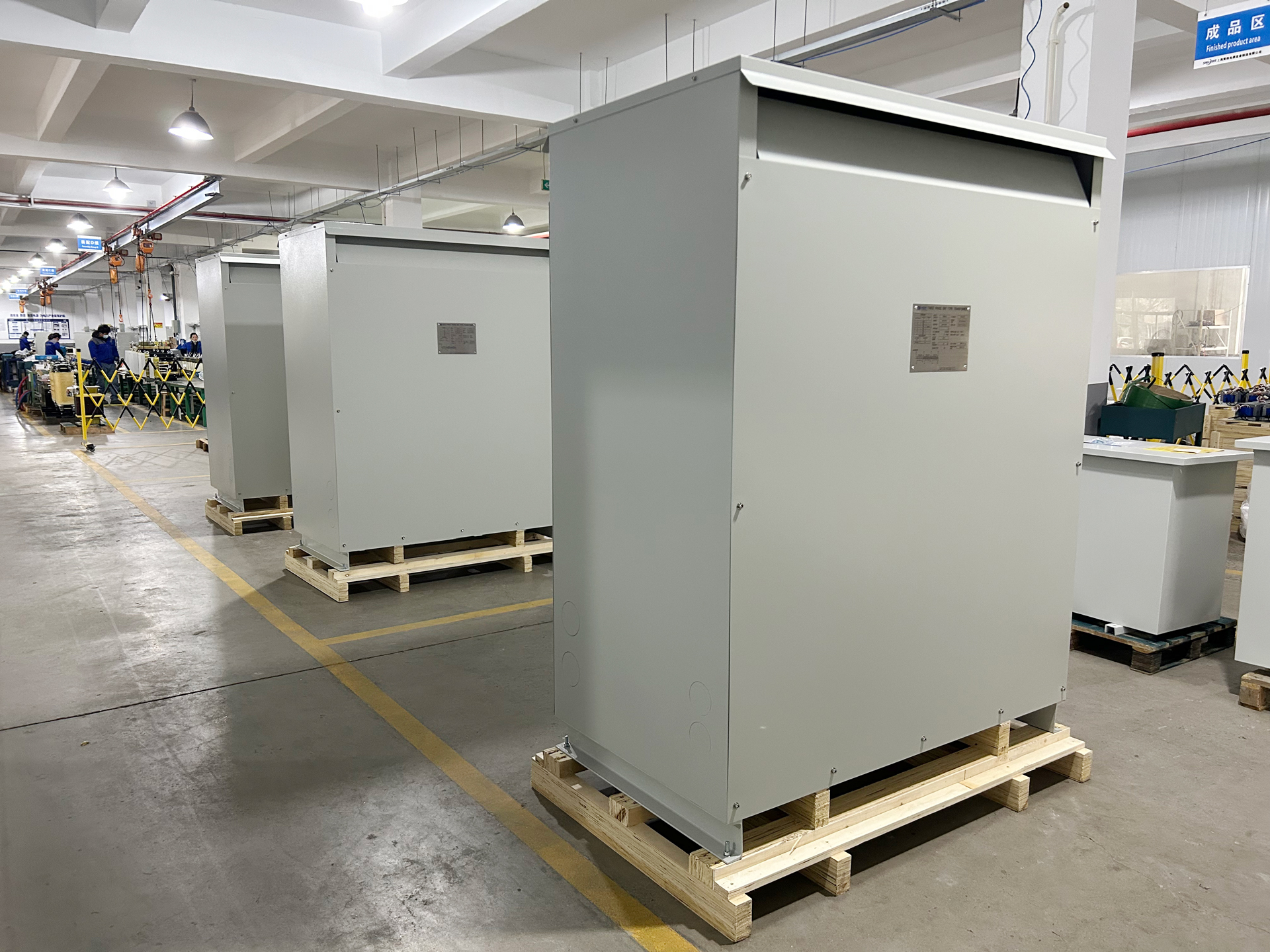

750kVA Three Phase Dry Type Transformer 4160V to 480Y/277V Outdoor NEMA 3R DOE 2016 Efficiency
SG-300KVA 3 phase step down transformer Dry type 4160V To 480277V C Class
150kVA Three Phase Dry Type Isolation Transformer 600V to 208Y/120V Aluminum Windings NEMA 3R Enclosure UL/cUL Listed
