Eco-Friendly 3D Laser Effect Coated Tinplate Coil 0.14-0.55mm for Premium Packaging

Name: "Eco-Friendly 3D Laser Effect Coated Tinplate Coil 0.14-0.55mm for Premium Packaging"
Rating: 5 (132 reviews)

SKU: 2275209603

Model: 3DL-ETP-PREMIUM-01

YOUNGSON METAL

Enter Shop

Product Details

Eco-Friendly 3D Laser Effect Coated Tinplate Coil

Premium 3D Holographic Laser Coated Tinplate for High-End Packaging & Precision Hardware Stamping

Product Summary

Our eco-friendly 3D laser effect coated tinplate coil combines a patented 3D dynamic holographic finish with food-contact grade safety. It is supplied in premium electrolytic tinplate (ETP) base metal with thickness from 0.14mm to 0.55mm and width from 4mm to 1050mm. The coil is engineered for high-speed progressive stamping and premium packaging applications, offering unmatched visual appeal and mechanical reliability.

Key Features

Patented 3D Holographic Effect
Dynamic 3D laser effect in single color options (lacquer, brass, black, red, grey, blue) or multi-color, customizable double-sided coatings.

Food-Contact Grade & Eco-Friendly
100% eco-friendly and food-contact grade, authenticated by genuine SGS certificates complying with REACH and RoHS heavy metal restrictions.

Precision Slitting Tolerance
Max burr ≤ 0.05mm, featuring industry-leading edge smoothness that protects progressive dies.

Anti-Rust Treatment
Exclusive slit-edge oil-spraying anti-rust treatment guarantees zero edge corrosion in hot, humid, and tropical marine transit climates.

Full Temper Versatility
Available in T1, T2, T3, T4, T5, DR7, DR8, DR9, DR10 for deep drawing and stamping requirements.

Global Certifications
Audited and certified by Bureau Veritas France under ISO9001:2015; RoHS compliance verified by SGS.

Technical Specifications

Parameter	Value
Thickness Range	0.14mm - 0.55mm (ultra-precise tolerance)
Width Range	4.0mm - 1050mm (custom slit strip available)
Temper Classification	T1, T2, T3, T4, T5, DR7, DR8, DR9, DR10
Tin Coating Mass	1.1/1.1, 2.2/2.2, 2.8/2.8 g/m² (differential and customized)
Base Metal Options	ETP, TFS/ECCS, Hot-Dip Galvanized Steel (GI)
Optical Finish	Patented 3D Laser Dynamic Holographic Effect
Max Burr	≤ 0.05mm
Core ID	160mm, 200mm, 300mm, 400mm, 500mm

Models and Options

Model: 3DL-ETP-PREMIUM-01

Options include single color or multi-color holographic effects, double-sided coatings, custom widths, and various core IDs to match your production line.

Materials and Structure

Made from premium electrolytic tinplate (ETP) or alternative base metals (TFS/ECCS, GI). The 3D laser effect coating is applied over the metal surface, ensuring durability and visual appeal. The coil structure is designed for seamless feeding into high-speed stamping and packaging lines.

Applications

Suitable for premium metal packaging (fancy biscuit tins, luxury tea caddies, cosmetics cases, spirits & wine gift boxes, confectionery tins), high-precision hardware stamping (electronic shielding, structural parts, deep-drawn metal stampings), decorative construction (metal badges, accent pieces), and automated high-speed progressive stamping lines.

Customization

We offer customization of thickness, width, coating color, and core diameter to meet your specific project requirements. Contact us to discuss your tailored needs.

FAQ

What is the minimum order quantity (MOQ) for this coil?

The MOQ is 2 tons or as per sizes, allowing flexibility for test orders.

Is the product suitable for food contact applications?

Yes, it is 100% eco-friendly and food-contact grade, with SGS certification for REACH and RoHS compliance.

Can you supply customized widths?

Yes, widths from 4mm to 1050mm are available, with custom slitting to your specifications.

What certifications does the product hold?

It is BV ISO9001:2015 certified and has authentic SGS certificates for RoHS and REACH compliance.

How is the product packaged for export?

We offer export packaging options including internal strip packaging and standard export pallets, ensuring safe transit.

What are the payment terms?

Payment options include T/T and L/C at sight. Delivery methods include FOB, CFR, CIF, DDP, and DDU by ocean or air.

Inquiry Information

For more details, pricing, or to place an inquiry, please contact us at:

Email: info@youngsonmetal.com
Tel: 0086-23-62566629
WhatsApp: +86-13594107385
Website: www.youngsonmetal.com

Request a Quote

Images

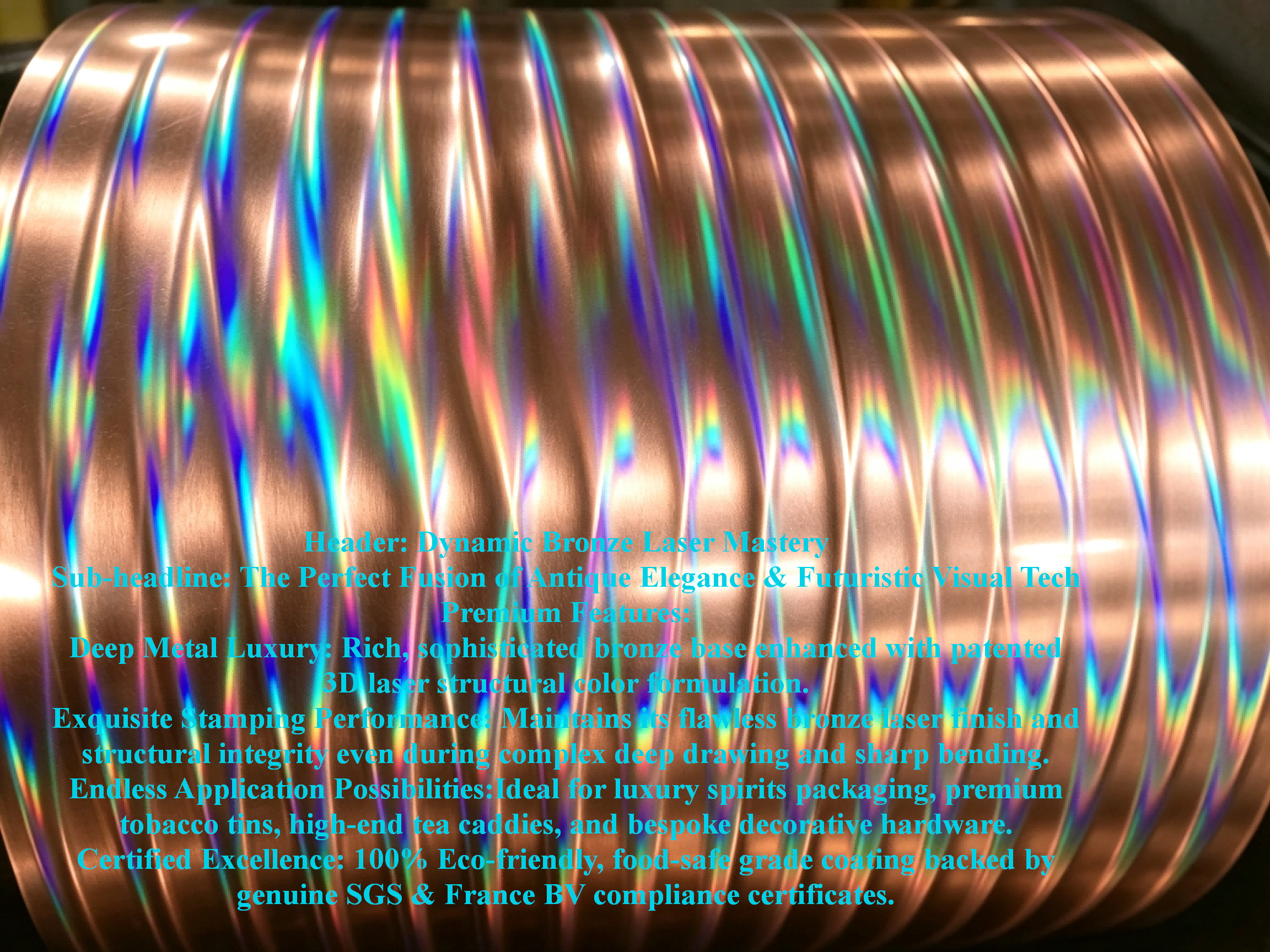

Luxury bronze laser effect tinplate coil and application — Luxury Bronze Laser Effect Tinplate Coil & Application

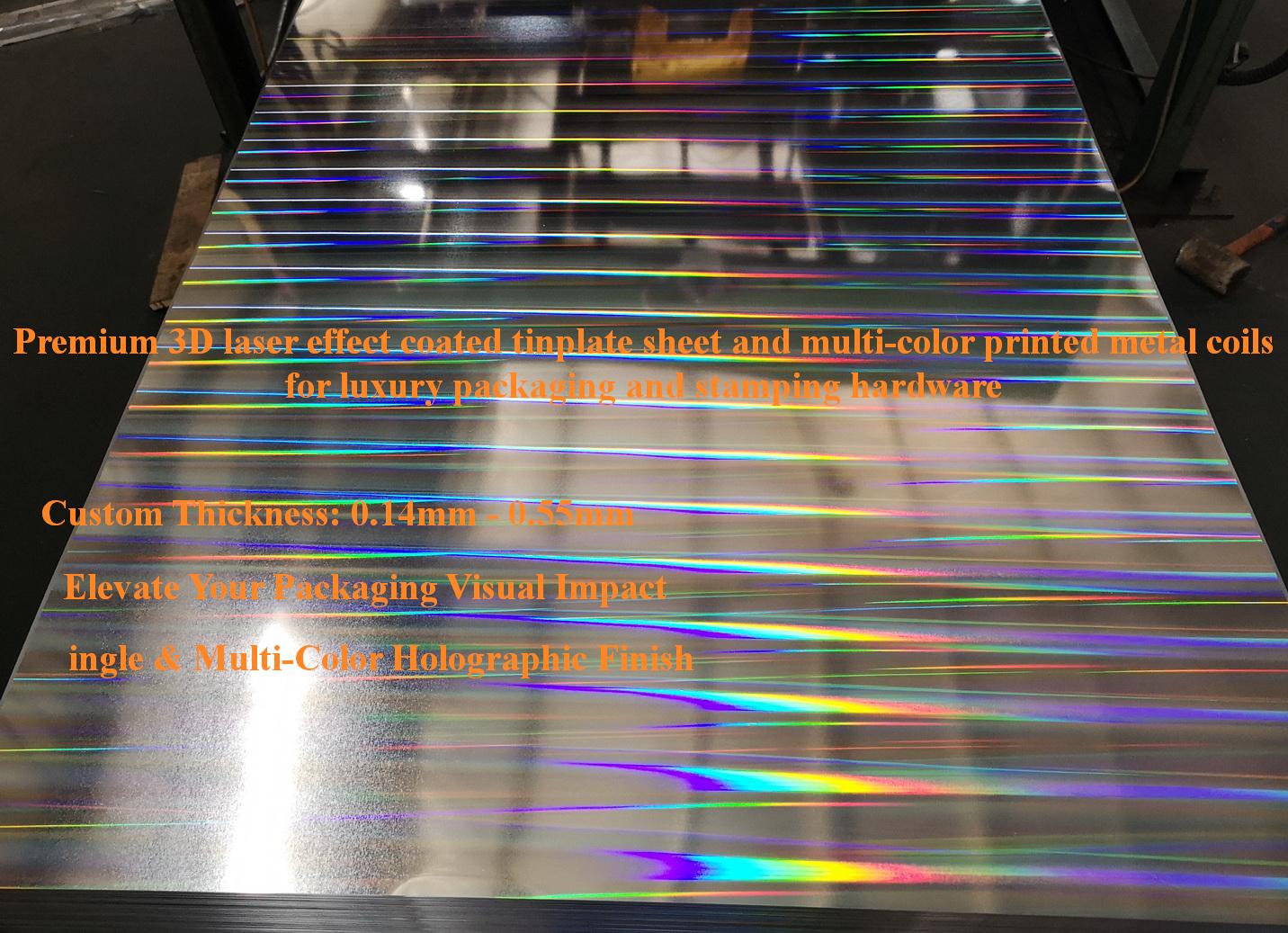

3D laser effect coated tinplate sheet for premium packaging — 3D Laser Effect Tinplate Sheet for Premium Packaging
