Product Summary

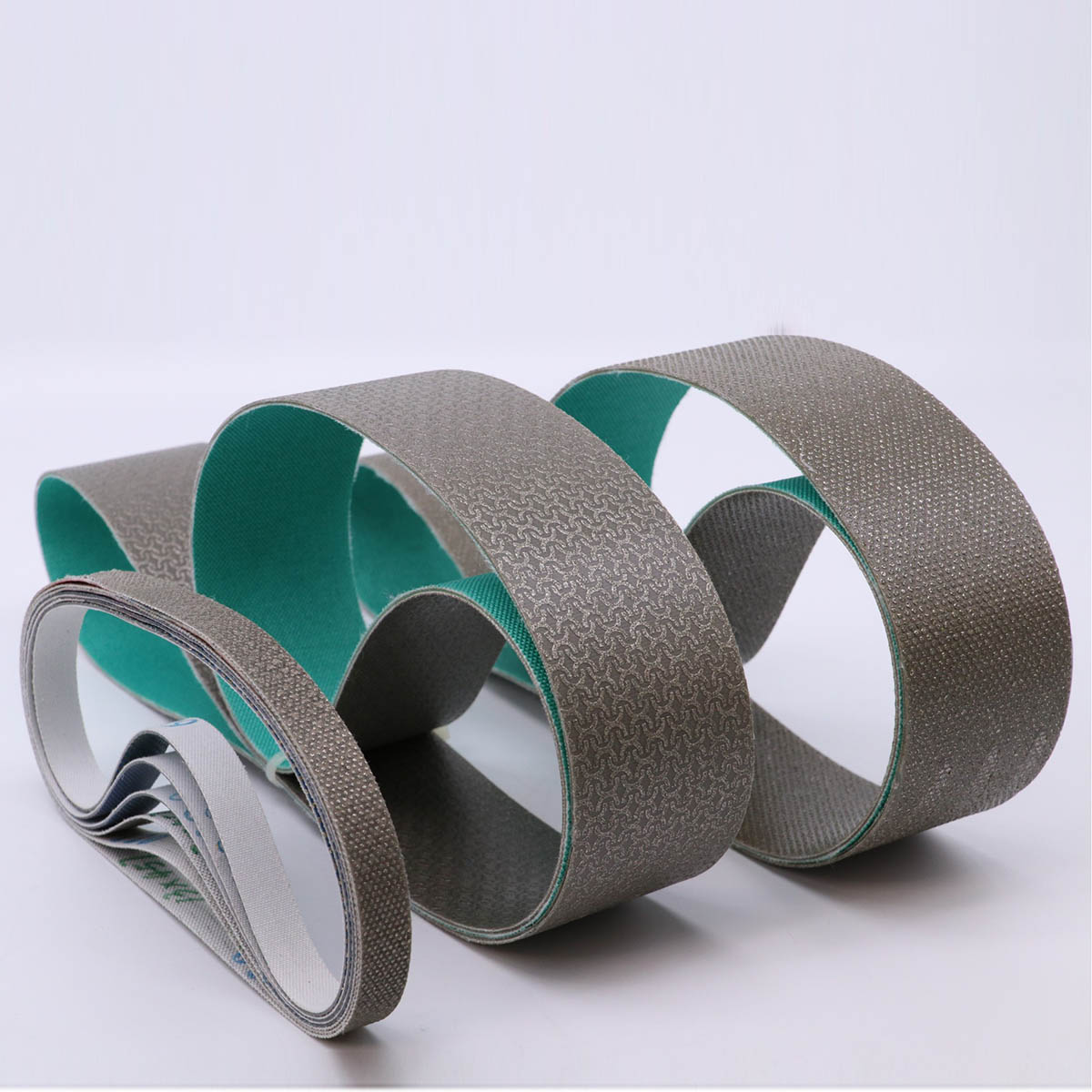

Our Electroplated Diamond Belt features a single layer of diamond abrasive bonded to a flexible backing via electroplating. This construction provides high grinding efficiency, long working life, and excellent cost-effectiveness. Suitable for grinding and polishing hard brittle materials such as glass, stone, ceramics, monocrystalline silicon, polycrystalline silicon, synthetic materials, and cemented carbide. Available in widths from 5mm to 350mm and lengths from 150mm to 5000mm, with grit sizes from 40# to 5000#. Custom sizes are accepted.

Key Selling Points

• Electroplated Bond: Diamond grains are firmly attached via electroplating, offering excellent grit retention and high stock removal rates. This bond is ideal for heavy-duty grinding operations on hard materials.
• High Grinding Efficiency: The exposed diamond cutting edges provide aggressive material removal, reducing processing time for glass edging, stone profiling, and ceramic grinding.
• Long Working Life: Electroplated diamonds resist pull-out, extending belt life significantly compared to resin bonds in certain applications. This lowers total cost per workpiece.
• Cost-Effective: Despite high performance, the electroplated diamond belt offers a competitive price point, delivering excellent value for high-volume production lines.

Technical Specifications

Models and Options

The electroplated diamond belt is available in many standard and custom sizes. Popular widths include 50mm, 100mm, 150mm, 200mm, and 300mm with lengths up to 5000mm. Grit sizes can be selected from 40# to 5000#. Custom backing materials and special dimensions can be manufactured to meet unique application requirements.

Materials and Structure

The belt consists of a flexible backing (commonly polyester or polyimide) onto which a single layer of diamond abrasive is deposited and bonded using an electroplating process. This creates a robust, exposed grain surface that provides fast cutting and excellent chip clearance. The electroplated bond is resistant to heat and wear, making it suitable for high-pressure grinding.

Applications

• Glass edge grinding and chamfering
• Stone surface smoothing and polishing
• Ceramic tile edge finishing
• Monocrystalline and polycrystalline silicon processing
• Cemented carbide tool grinding
• Thermal spray coating removal
• Wind power component finishing

Customization

We offer tailored solutions for dimensions, grit size, and backing material. MOQ is 50 units. Delivery terms: FOB, CIF, DDP. Payment: 100% prepayment. Pre-shipment testing available.

FAQ

1. What are the advantages of electroplated diamond belt over resin bond?

Electroplated belts provide higher grinding efficiency and longer life in heavy stock removal applications. They are particularly effective on hard materials where resin bonds may wear faster.

2. What grit sizes are available?

Grit range from 40# (coarse) to 5000# (ultra-fine).

3. Can I use the belt for wet grinding?

Yes, the electroplated diamond belt works well in both dry and wet conditions.

4. What is the maximum belt length?

Maximum length is 5000mm. Custom lengths up to this limit can be produced.

5. Do you provide samples?

Yes, please contact our sales team to request samples. We can ship samples for evaluation.

6. What is the minimum order quantity?

MOQ is 50 units per specification.

7. How long does delivery take?

Typical lead time depends on order quantity and customization. Contact us for a precise quote.

Inquiry Information

For more details or to place an order, contact:
Name: Annie
Email: sales@ruitechn.com
Tel: +0086-371-86555877
WhatsApp: +8613928451015
Address: No. 1, Building 3, Longding Phase 1, Hongsong Road, Zhengzhou High-tech Industrial Development Zone, Zhengzhou, Henan, China.

Image Gallery

Image filenames: electroplated-diamond-belt-closeup.png, electroplated-diamond-belt-application.jpg
