FBT-1000 Belt Sludge Thickener

The FBT-1000 is a gravity belt sludge thickener designed for municipal and industrial wastewater treatment plants requiring a compact and efficient solution. With a belt width of 1000mm and a treating capacity of 12–25 m³/h, it effectively increases sludge solids from 0.6–1.5% to 2.5–8%, reducing sludge volume and downstream dewatering load. Built with SS304 stainless steel, this model guarantees corrosion resistance and long service life in demanding environments.

FBT-1000 gravity belt sludge thickener front view

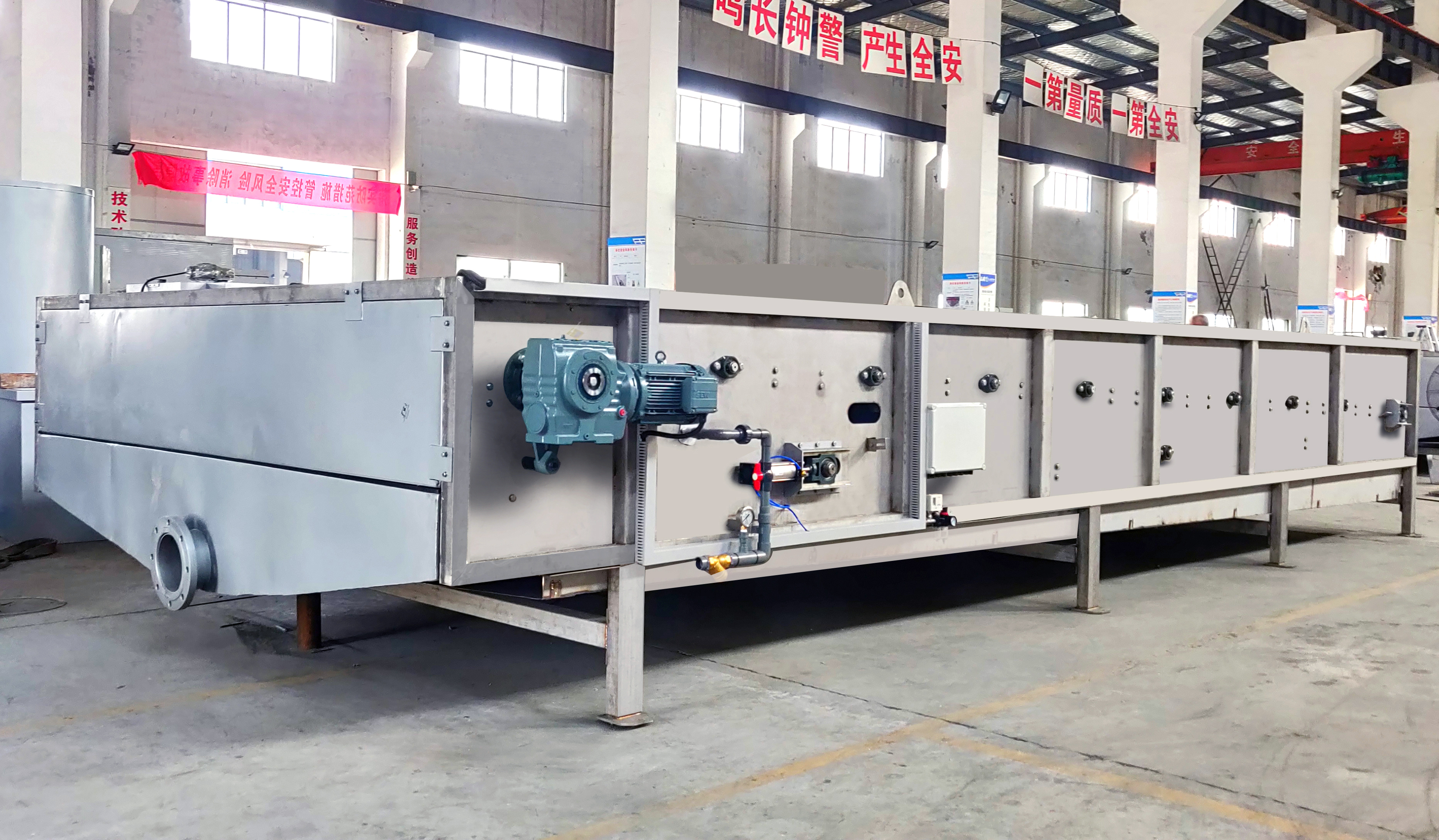

FBT-1000 belt sludge thickener installation site

Key Selling Points

High Solid Capture Rate: Achieves 98% solid capture, maximizing sludge recovery and minimizing solids loss in the filtrate.
Energy Efficient: Low power consumption of only 0.55–1.5 kW, reducing operational costs compared to other thickening methods.
Corrosion-Resistant Build: Constructed with SS304 stainless steel, ensuring durability and longevity in corrosive environments.
Adjustable Belt Speed: Belt speed adjustable from 3–18 m/min, allowing precise control for different sludge characteristics.
CE Certified: Complies with European Machinery and EMC Directives, ensuring safety and reliability for EU installations.

Technical Specifications

Model	FBT-1000
Belt Width	1000 mm
Inlet Consistency (S.S.)	0.6–1.5%
Treating Capacity	12–25 m³/h
Dried Sludge	72–150 kg/h
Sludge Outlet Consistency	2.5–8%
Power Consumption	0.55–1.5 kW
Belt Speed	3–18 m/min
Solid Capture Rate	98%
Material	SS304

Models and Options

The FBT series includes models with belt widths from 1000mm to 3000mm. The FBT-1000 is the entry-level model, ideal for smaller plants or low-flow applications. Other models include FBT-1500, FBT-2000, FBT-2500, and FBT-3000, each offering increased capacity.

Materials and Structure

The main frame and all wetted parts are fabricated from SS304 stainless steel, offering excellent corrosion resistance and low maintenance. The gravity belt thickening design ensures continuous, reliable operation.

Applications

The FBT-1000 is suitable for municipal wastewater treatment, industrial wastewater treatment, paper mills, printing and dyeing, and various sludge thickening projects. It is particularly effective for low-solids sludge before mechanical dewatering.

Customization

Custom options include polymer preparation systems, sludge feed pumps, mixing tanks, wash water systems, and local control cabinets. Sludge sample testing and polymer selection are recommended before final sizing.

FAQ

Q: What is the minimum inlet solids concentration for the FBT-1000?

A: The recommended inlet consistency is 0.6–1.5% S.S. for optimal performance.

Q: What is the typical solid capture efficiency?

A: The FBT-1000 achieves a solid capture rate of 98%.

Q: Can the belt speed be adjusted?

A: Yes, the belt speed is adjustable from 3 to 18 m/min to accommodate different sludge types.

Q: What materials is the machine made of?

A: The machine is constructed with SS304 stainless steel for corrosion resistance.

Q: What certifications does the FBT-1000 have?

A: The FBT series is CE certified and complies with ISO 9001, ISO 14001, and ISO 45001 standards.
