FBT-1500 Belt Sludge Thickener with 1500mm Belt Width

Name: "FBT-1500 Belt Sludge Thickener with 1500mm Belt Width"
Rating: 5 (741 reviews)

Quantity:

SKU: 1862861382

Model: FBT Series; FBT-1000 / FBT-1500 / FBT-2000 / FBT-2500 / FBT-3000

Shanghai Fuchan Machinery

Enter Shop

Product Details

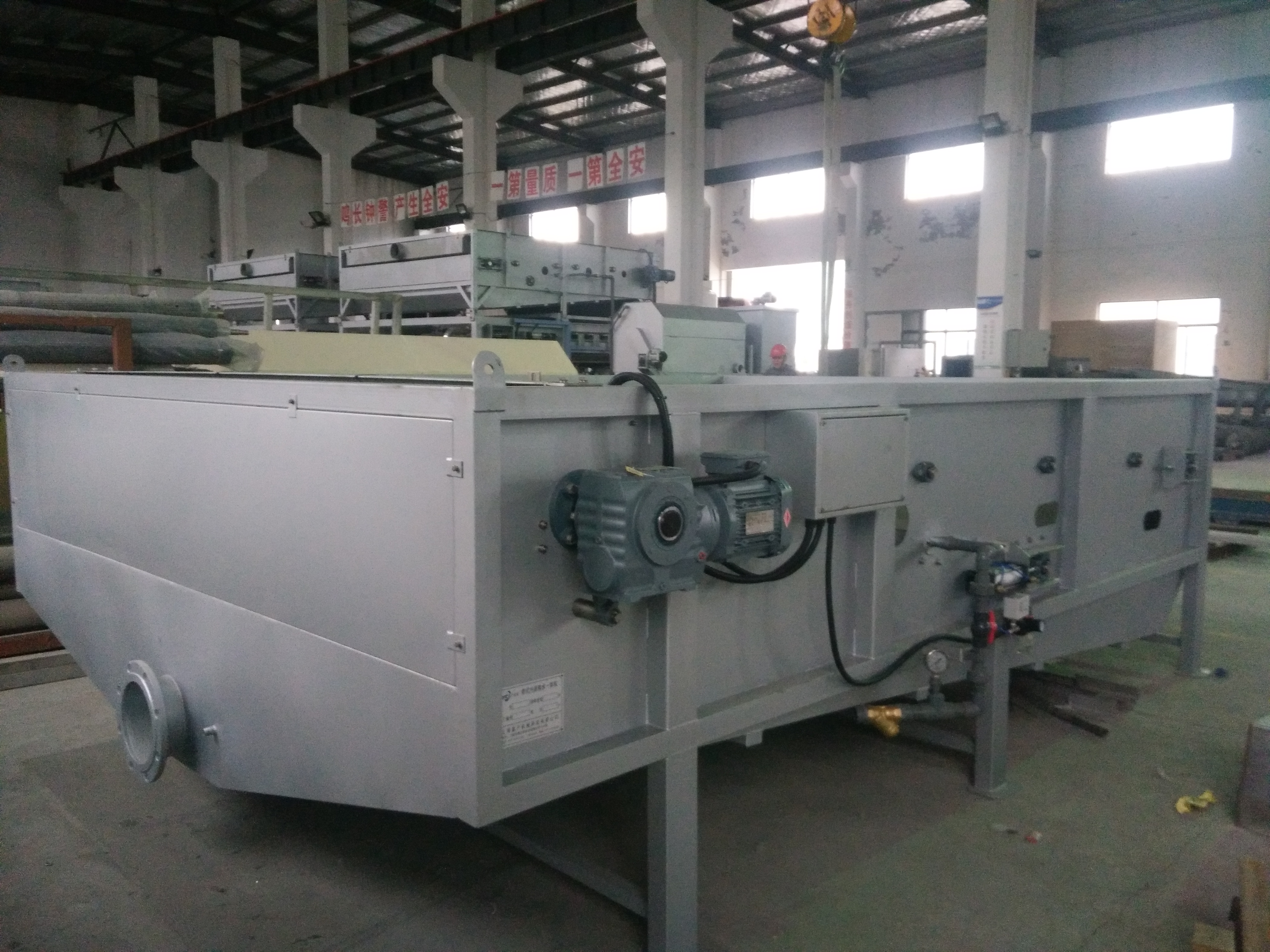

FBT-1500 Belt Sludge Thickener

The FBT-1500 is a mid-range gravity belt sludge thickener designed for applications requiring higher throughput than the FBT-1000. With a belt width of 1500mm, it offers a treating capacity of 25–40 m³/h, making it suitable for medium-sized municipal and industrial wastewater treatment plants. The machine efficiently thickens sludge from 0.6–1.5% S.S. to 2.5–8% solids, reducing downstream dewatering requirements.

Key Selling Points

Higher Capacity: Treating capacity up to 40 m³/h, suitable for larger flows.
Consistent Thickening: Sludge outlet consistency of 2.5–8% ensures reliable dewatering feed.
Low Energy Consumption: Power consumption remains low at 0.55–1.5 kW, saving operational costs.
Durable Construction: All SS304 stainless steel build assures long service life.
CE Certified: Meets EU safety and EMC requirements.

Technical Specifications

Model	FBT-1500
Belt Width	1500 mm
Inlet Consistency (S.S.)	0.6–1.5%
Treating Capacity	25–40 m³/h
Dried Sludge	150–240 kg/h
Sludge Outlet Consistency	2.5–8%
Power Consumption	0.55–1.5 kW
Belt Speed	3–18 m/min
Solid Capture Rate	98%
Material	SS304

Models and Options

The FBT series covers belt widths from 1000mm to 3000mm. The FBT-1500 is a popular choice for growing municipalities and industrial facilities.

Materials and Structure

Constructed with SS304 stainless steel, the FBT-1500 offers excellent durability against corrosive sludge. Its gravity belt design ensures simple operation and ease of maintenance.

Applications

Ideal for municipal wastewater treatment, industrial effluents, paper mills, and printing/dyeing industries. It effectively handles sludge before mechanical dewatering.

Customization

Available with options such as polymer dosing systems, sludge pumps, and control panels. We recommend sludge testing for optimal polymer selection.

FAQ

Q: What is the maximum inlet flow for FBT-1500?

A: The maximum treating capacity is 40 m³/h.

Q: What is the typical increase in solids concentration?

A: The outlet consistency is 2.5–8%, significantly reducing sludge volume.

Q: Is the machine energy-saving?

A: Yes, power consumption is only 0.55–1.5 kW.

Q: What materials are used?

A: SS304 stainless steel is used for all wetted parts.

Q: Does the FBT-1500 comply with international standards?

A: It is CE certified and manufactured under ISO 9001, ISO 14001, and ISO 45001 compliant processes.

Inquiry Information

Contact our sales team at sales@fuchanjx.com or call +86 138-1673-2007. MOQ: 1 set. Delivery: FOB/CIF. Payment terms: 30% advance, 70% before shipment.
